Fuel Rail: Locations

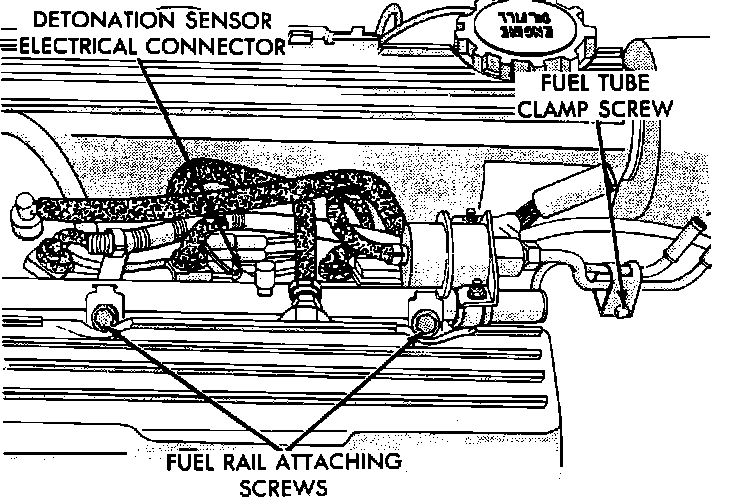

Fuel Rail Attaching Screws:
The fuel rail assembly is mounted to the engine, between the valve cover and the intake plenum.
