EGR Control Solenoid: Locations

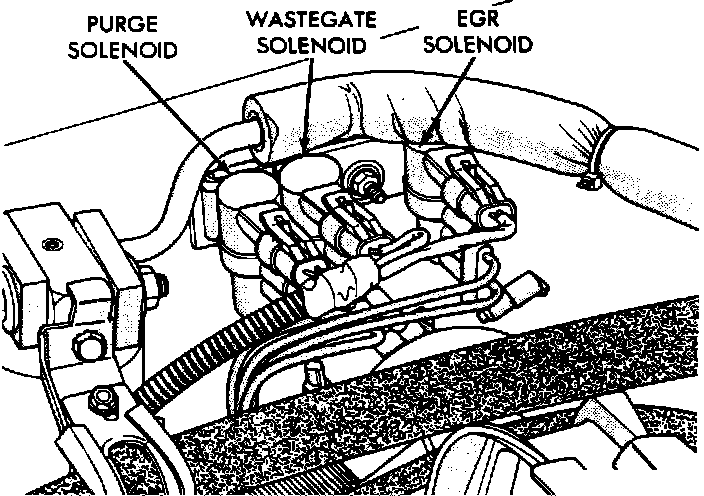

Solenoid Pack:





The solenoid pack is located on the right hand inner fender well in front of the strut tower.
