NS-9C Repairing "No Tach Signal During Cranking" Fault
NS-9C Repairing "No Tach Signal During Cranking" Fault

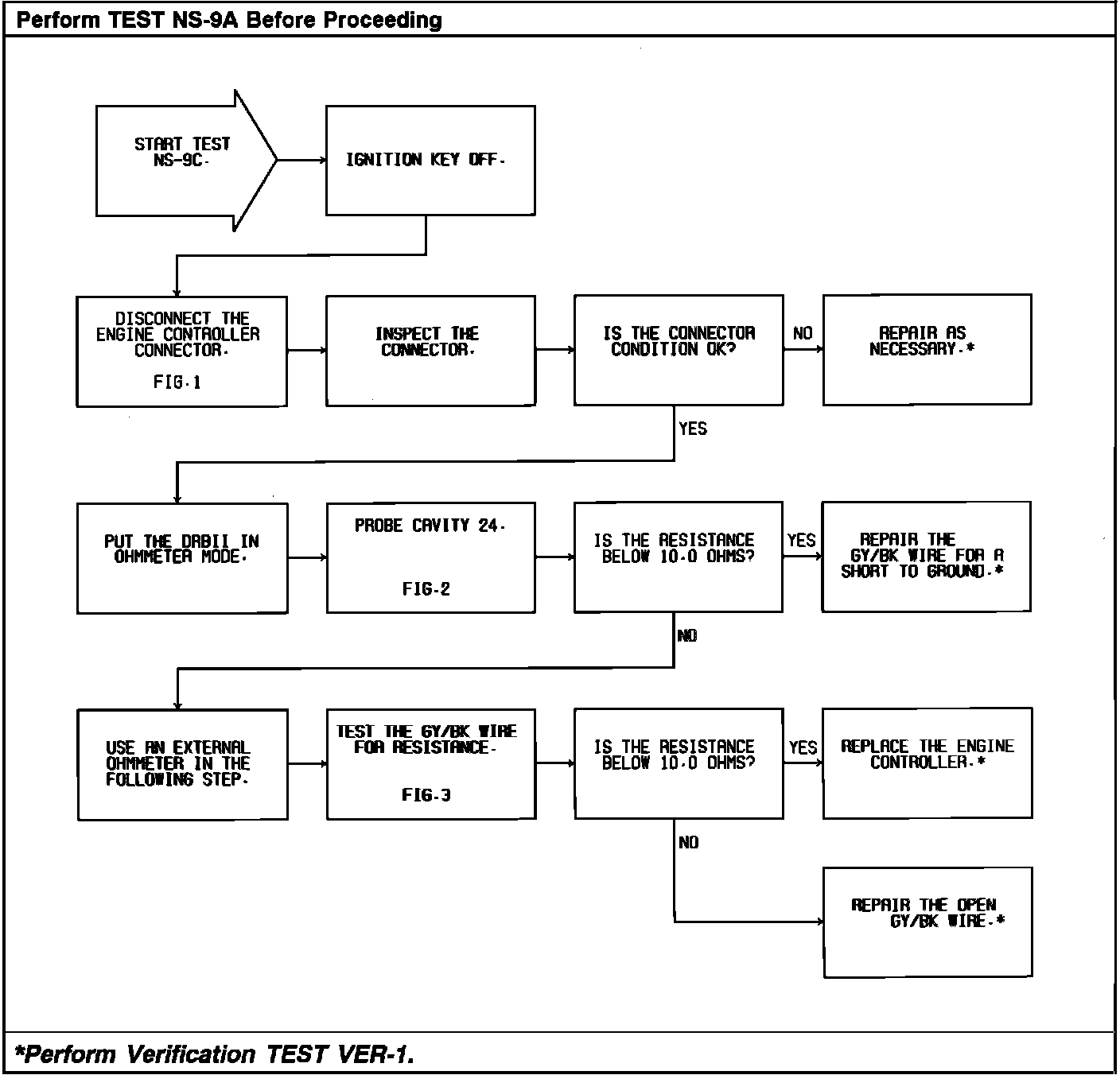

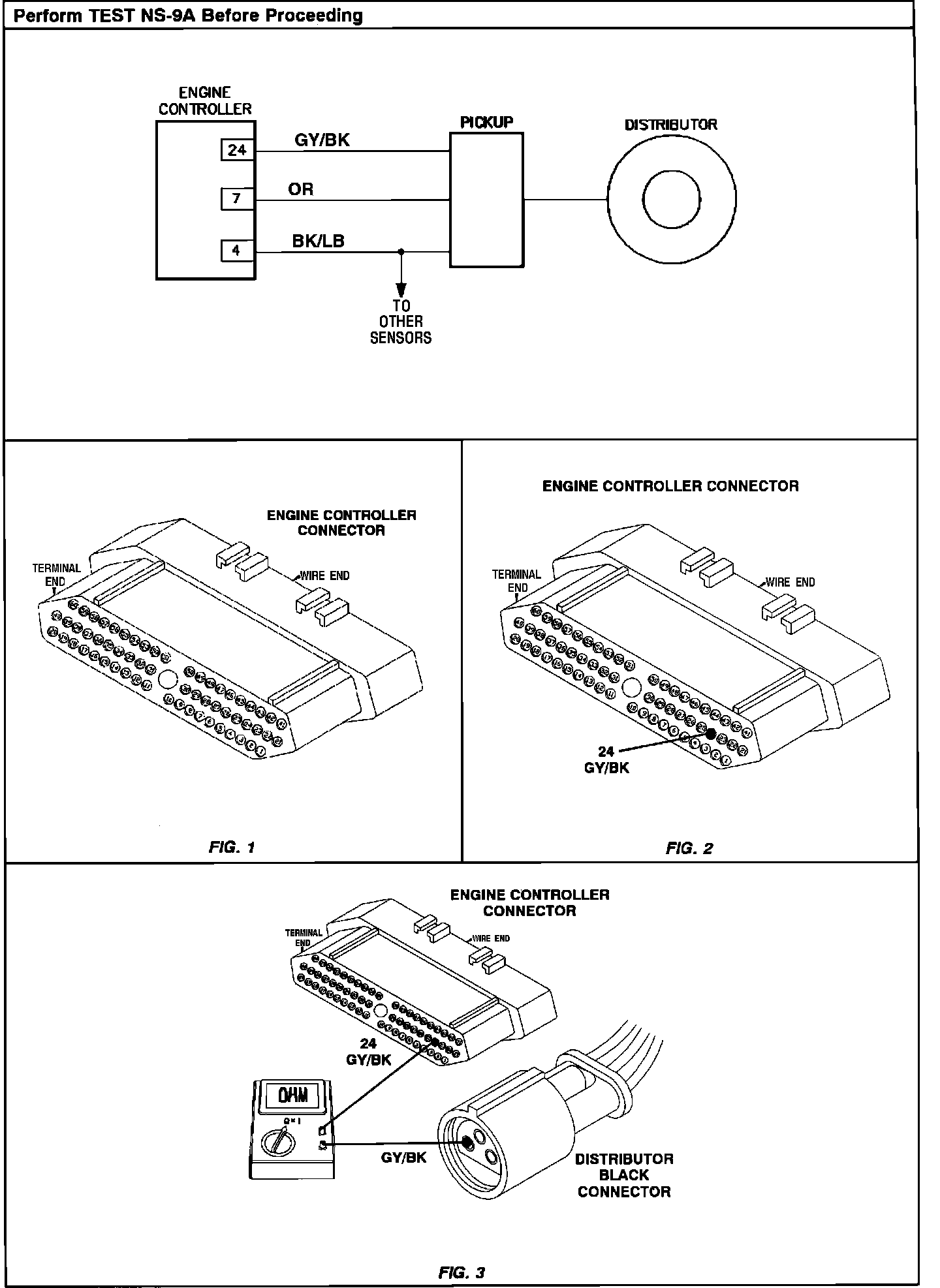

Test NS-9C - "No Reference Signal During Canking":
"No Reference Signal During Canking":
