NS-9B Repairing "No Tach Signal During Cranking" Fault
NS-9B Repairing "No Tach Signal During Cranking" Fault

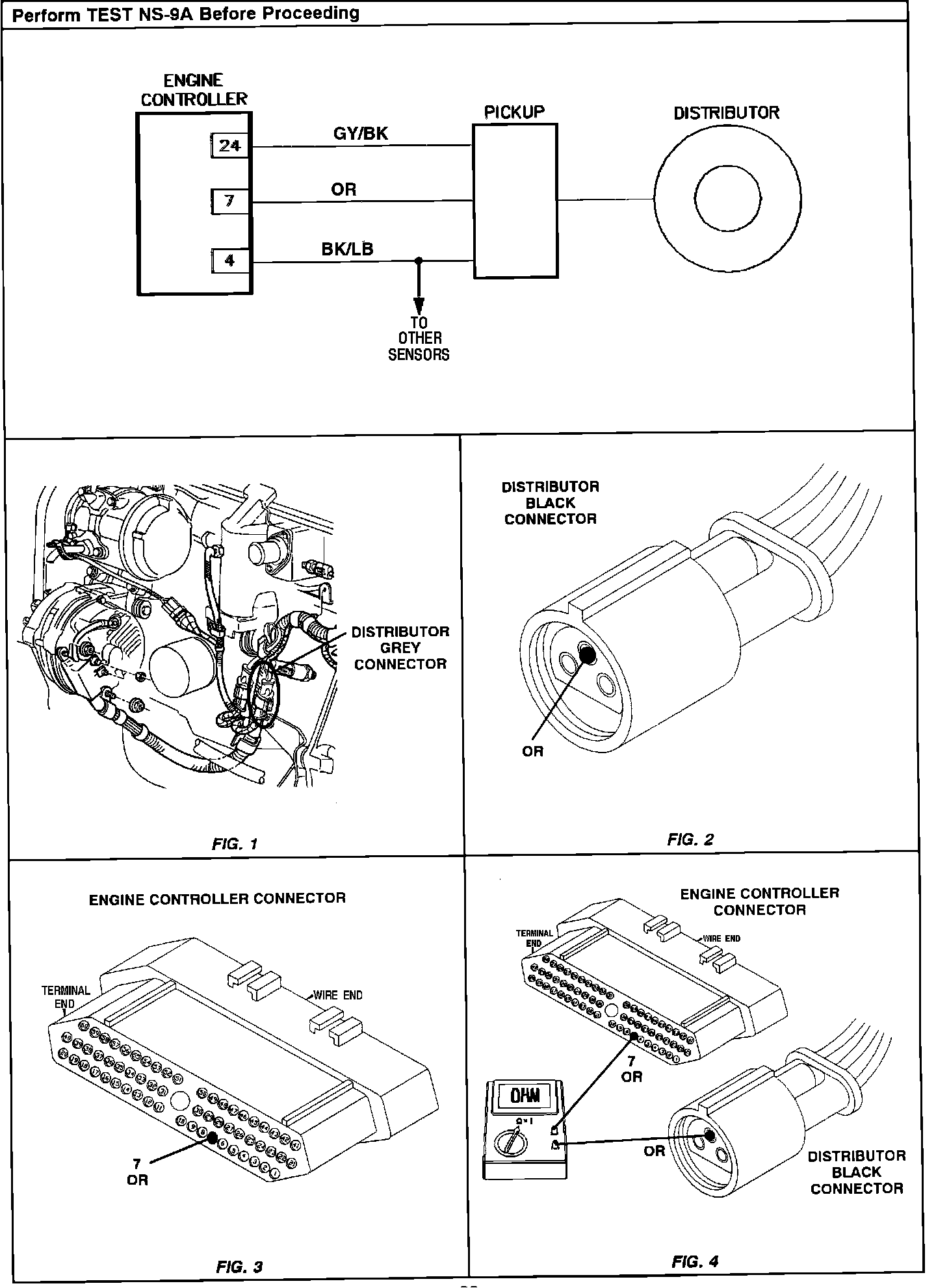

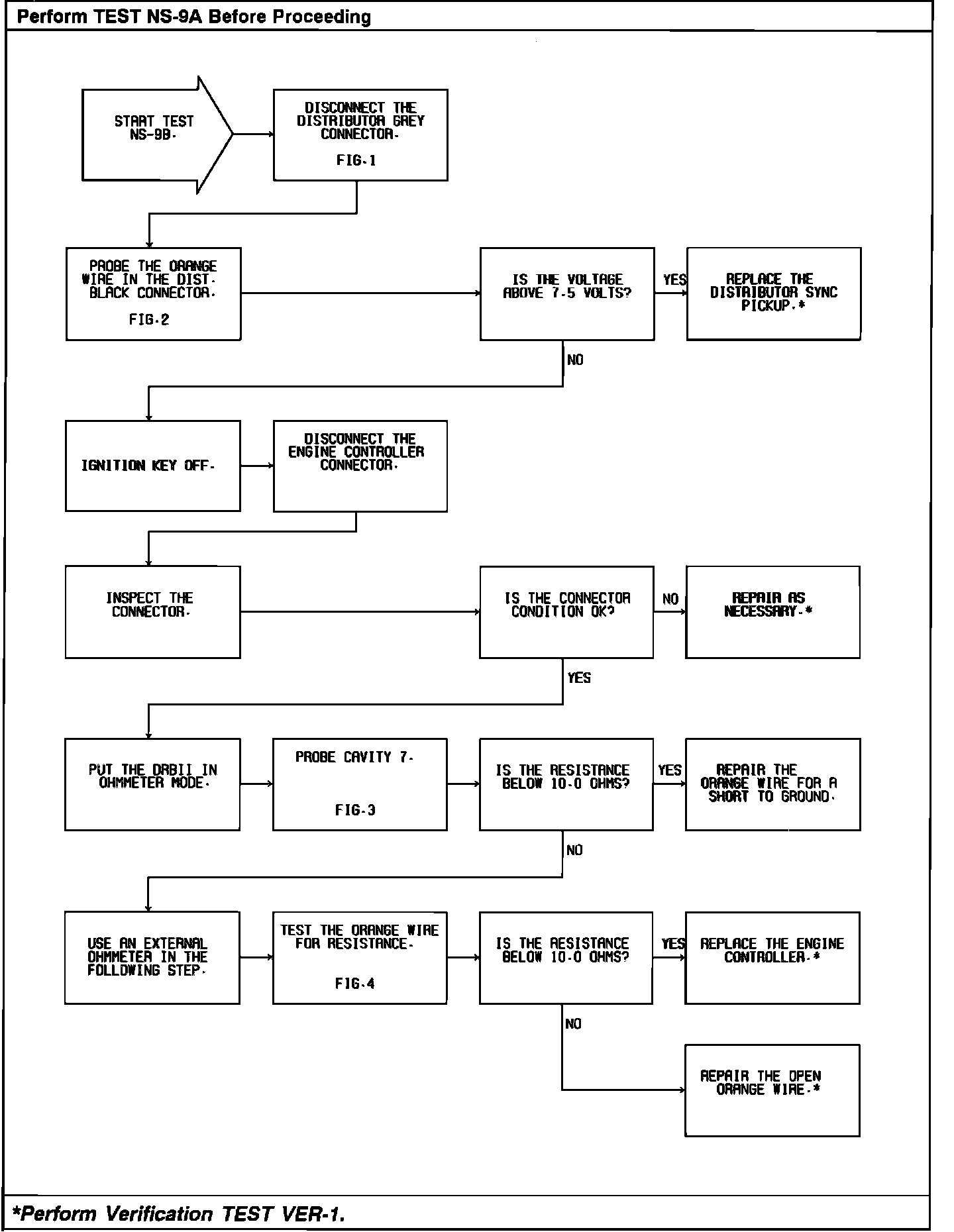

Test NS-9B - "No Reference Signal During Cranking":
Test NS-9B - "No Reference Signal During Cranking":
