Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-8C Repairing "No Response" Fault >> Part 3 of 3

Part 3 of 3

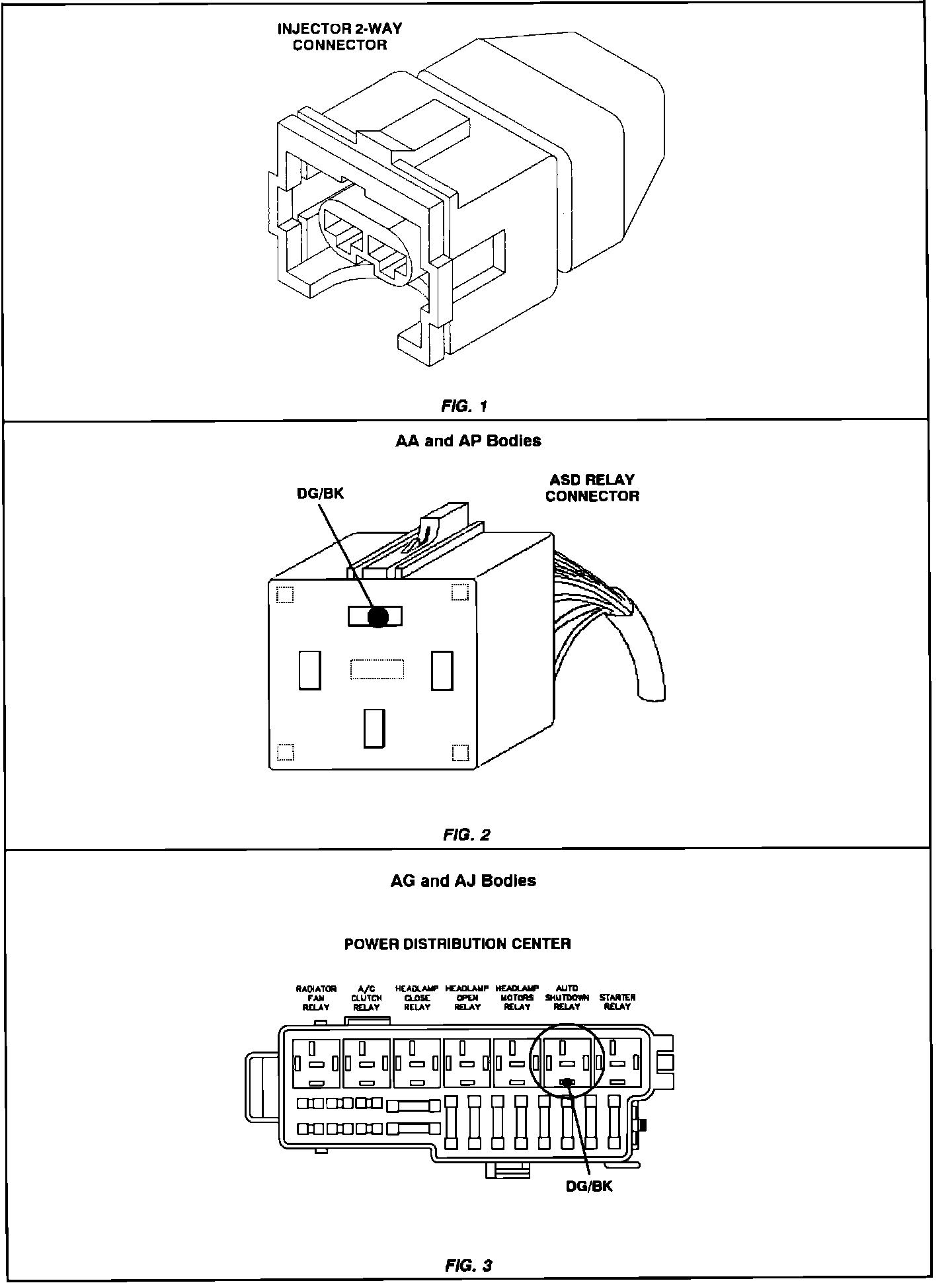

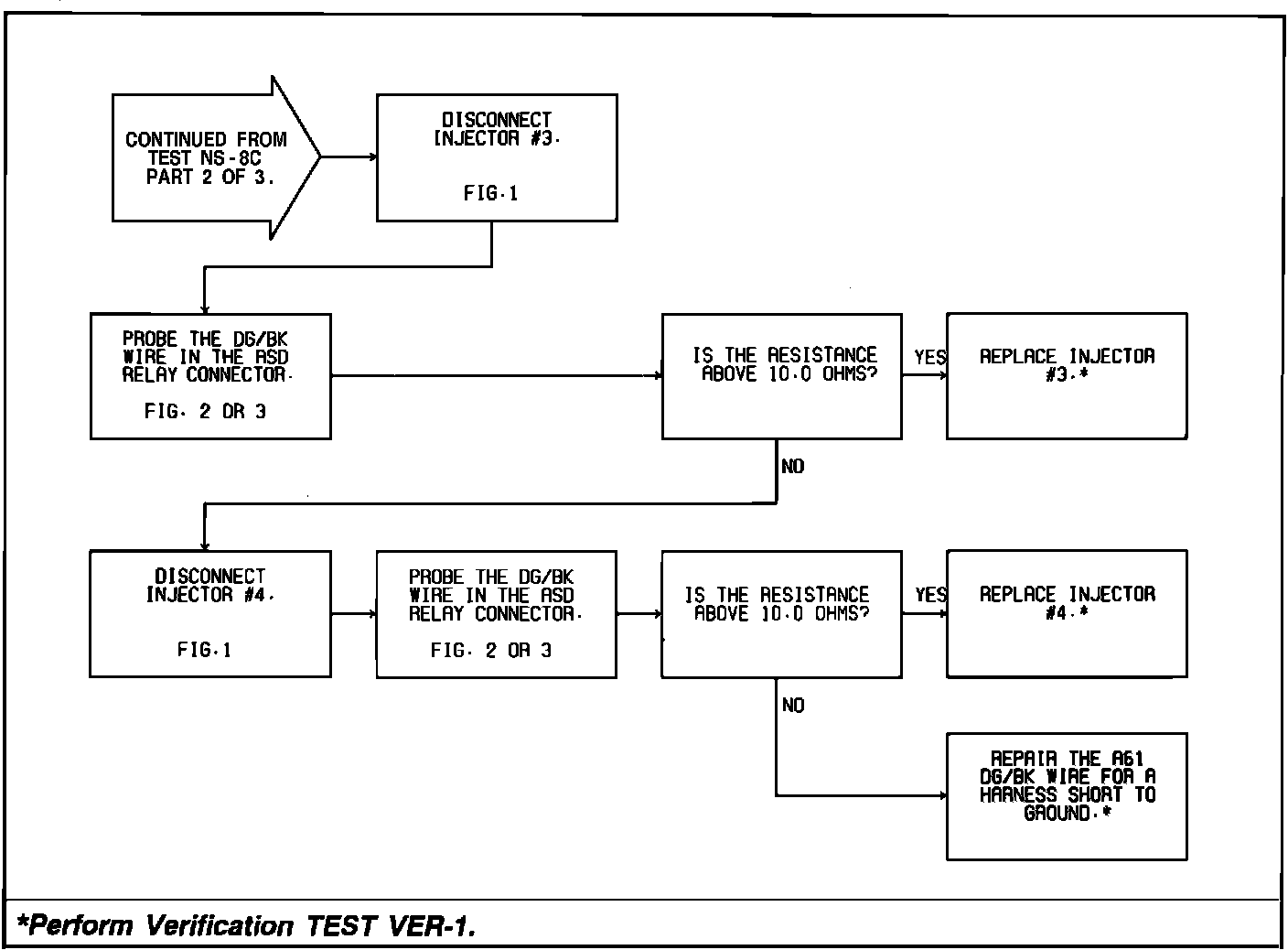

Test NS-8C - "No Response":



Test NS-8C - "No Response":
