Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-8B Repairing "No Response" Fault >> Part 1 of 2

Part 1 of 2

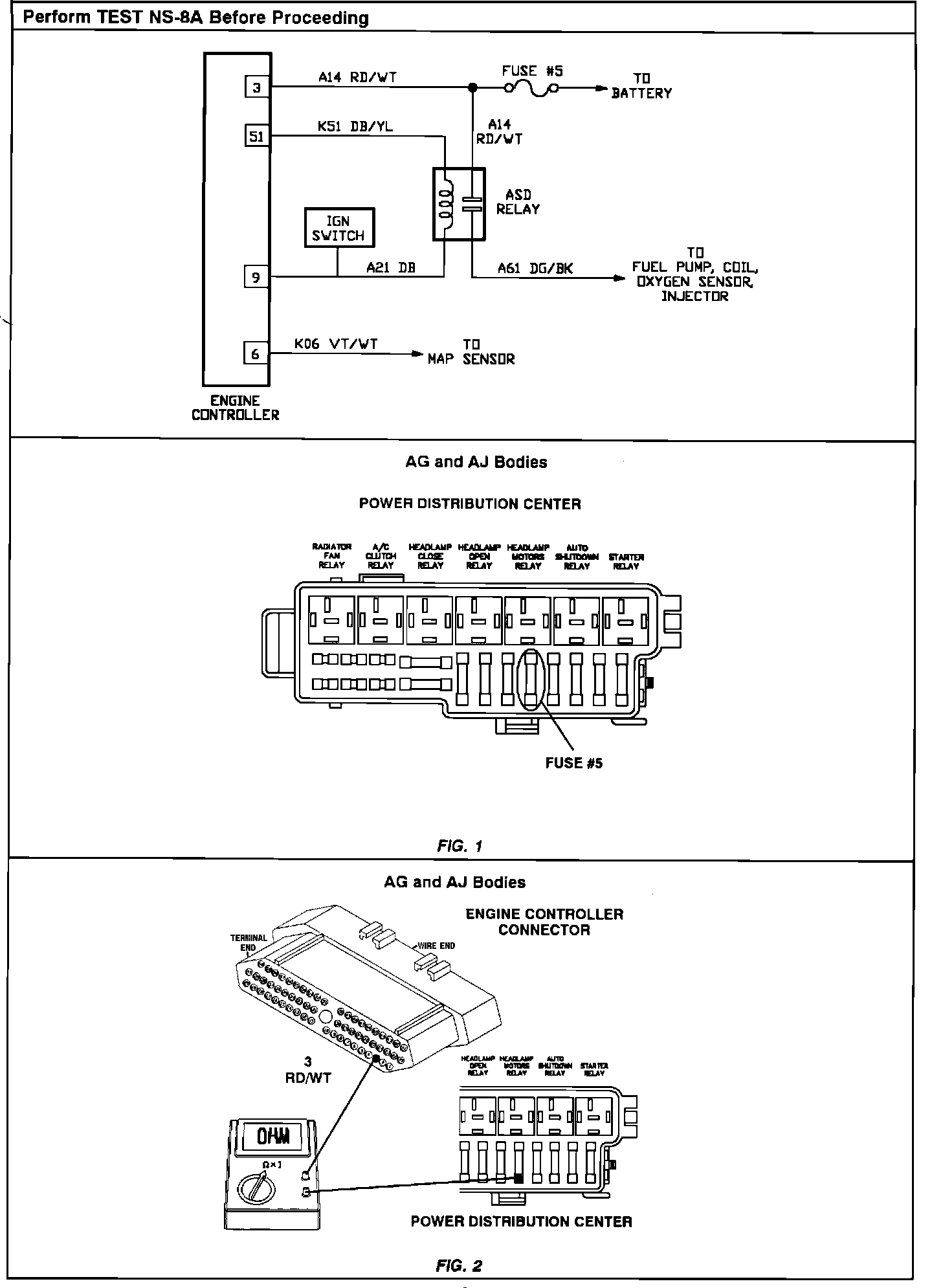

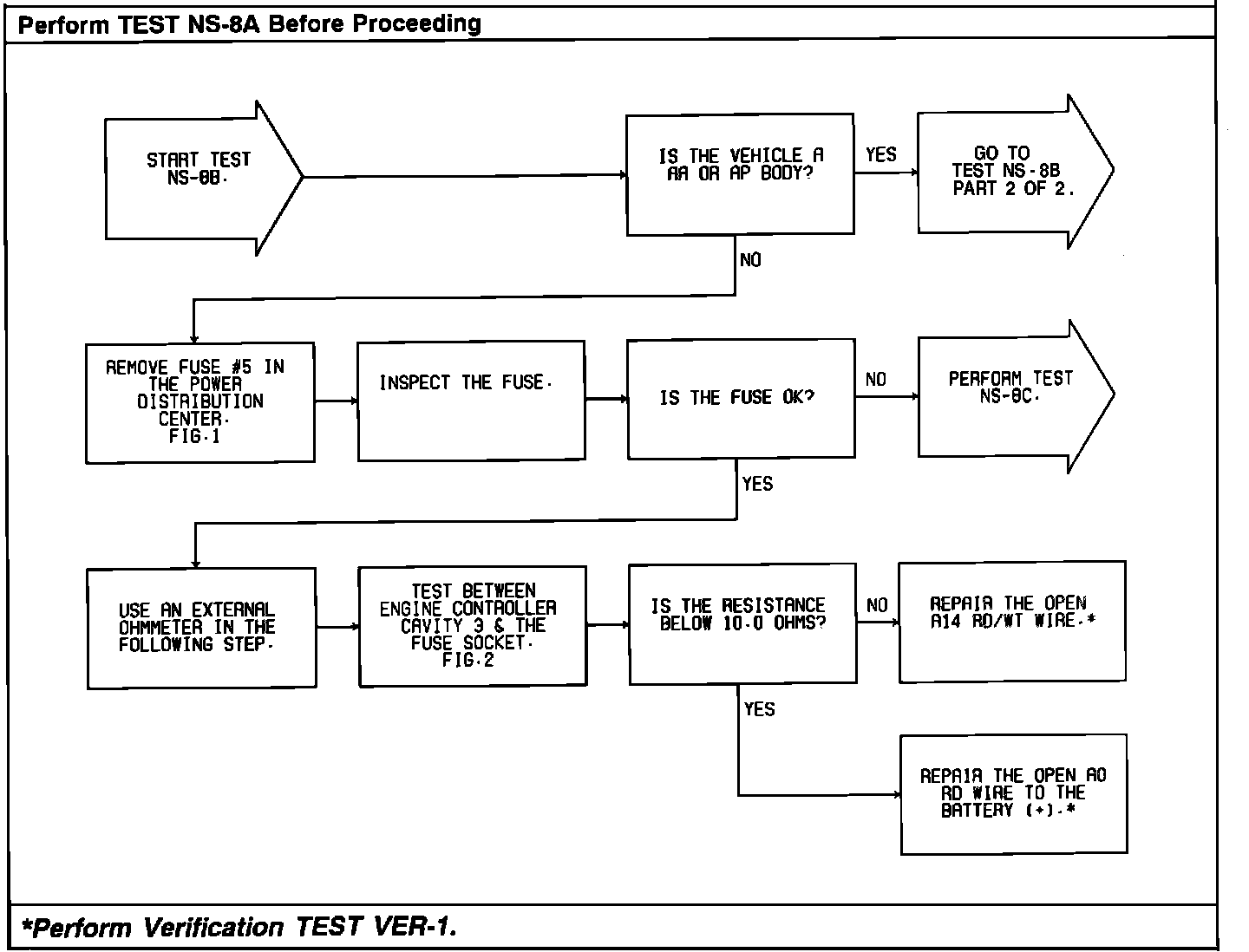

Test NS-8B - "No Response":



Test NS-8B - "No Response":
