Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-7A Fuel Pump Inspection

NS-7A Fuel Pump Inspection

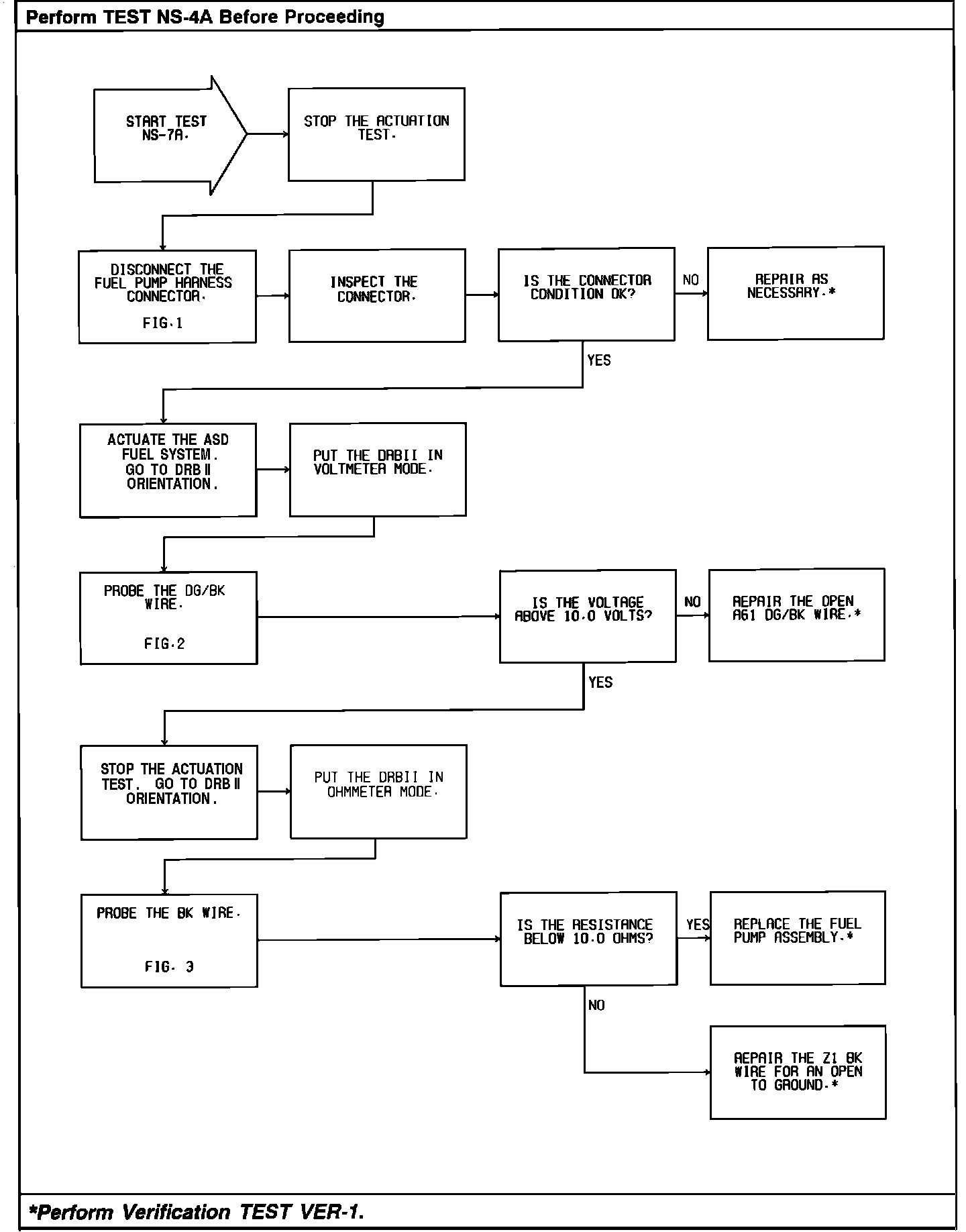

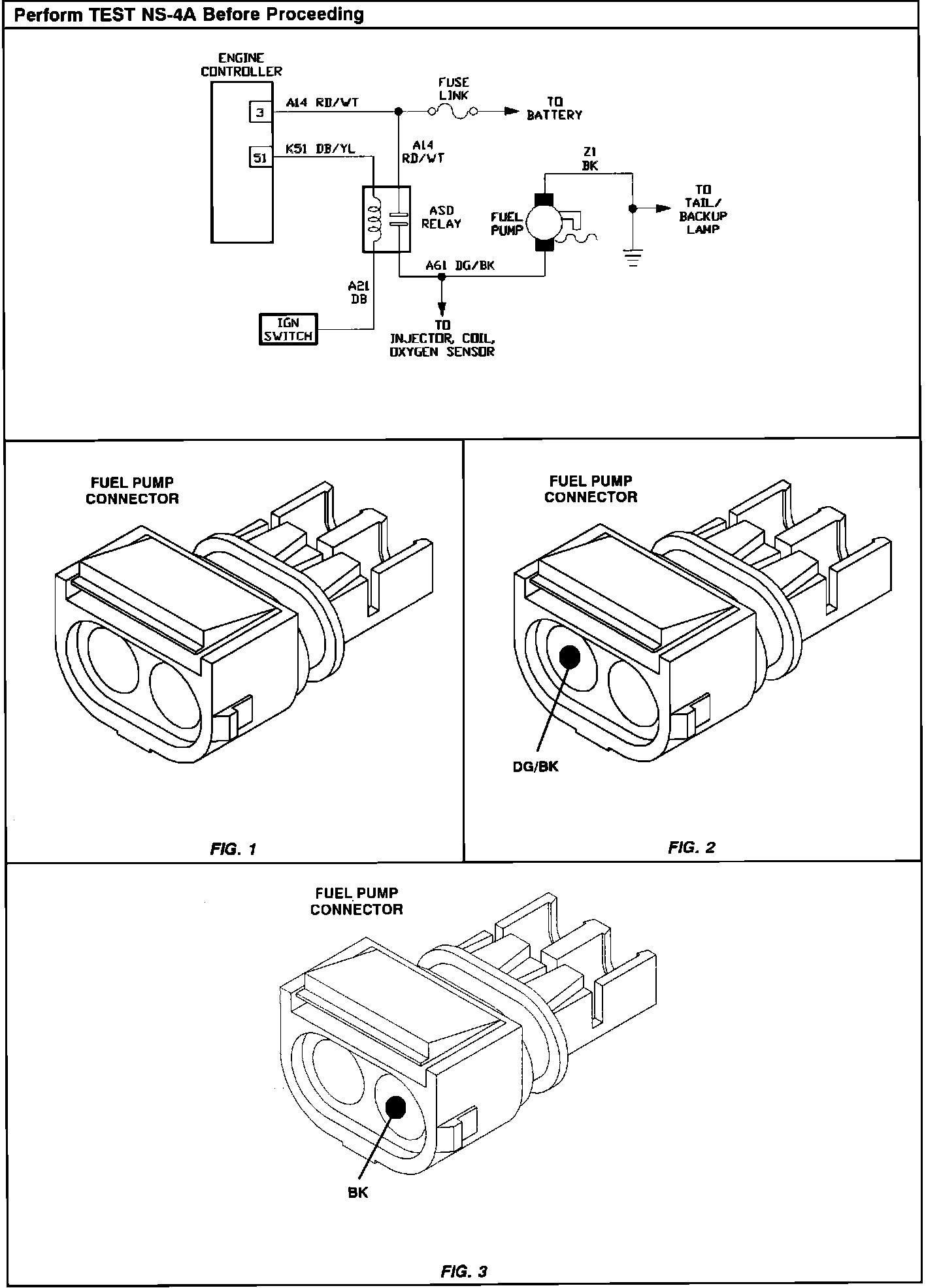

Test NS-7A - Checking Fuel Pump:



Test NS-7A - Checking Fuel Pump:
