NS-6C Repairing "No SYNC Pickup Signal" Fault
NS-6C Repairing "No SYNC Pickup Signal" Fault

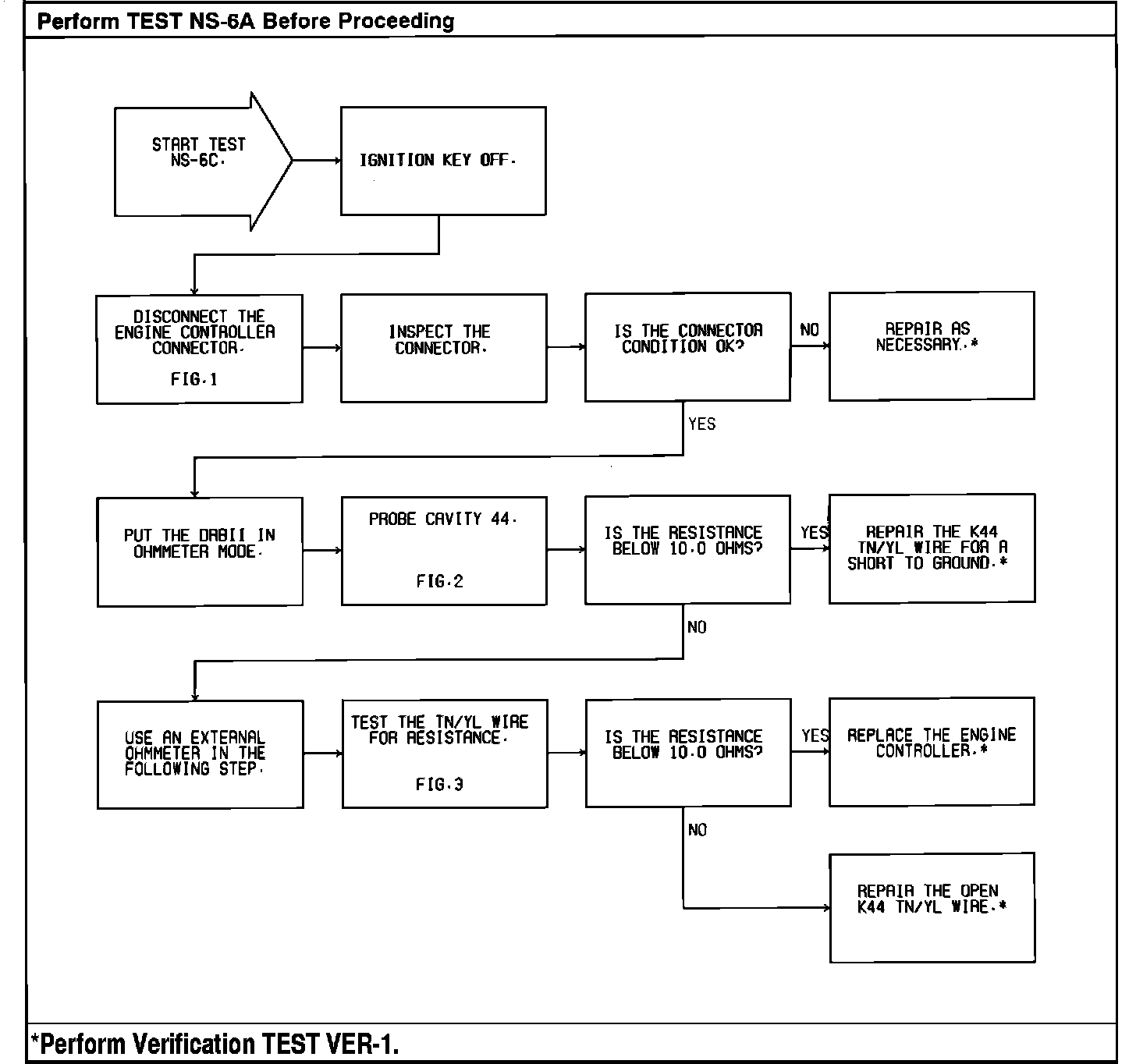

Test NS-6C - "No SYNC Pickup Signal":
Test NS-6C - "No SYNC Pickup Signal":
