Home
>>
Dodge
>>
1991
>>
Shadow Convertible L4-153 2.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
NS-6B Repairing "No SYNC Pickup Signal" Fault
NS-6B Repairing "No SYNC Pickup Signal" Fault
Test NS-5B - "No SYNC Pickup Signal":

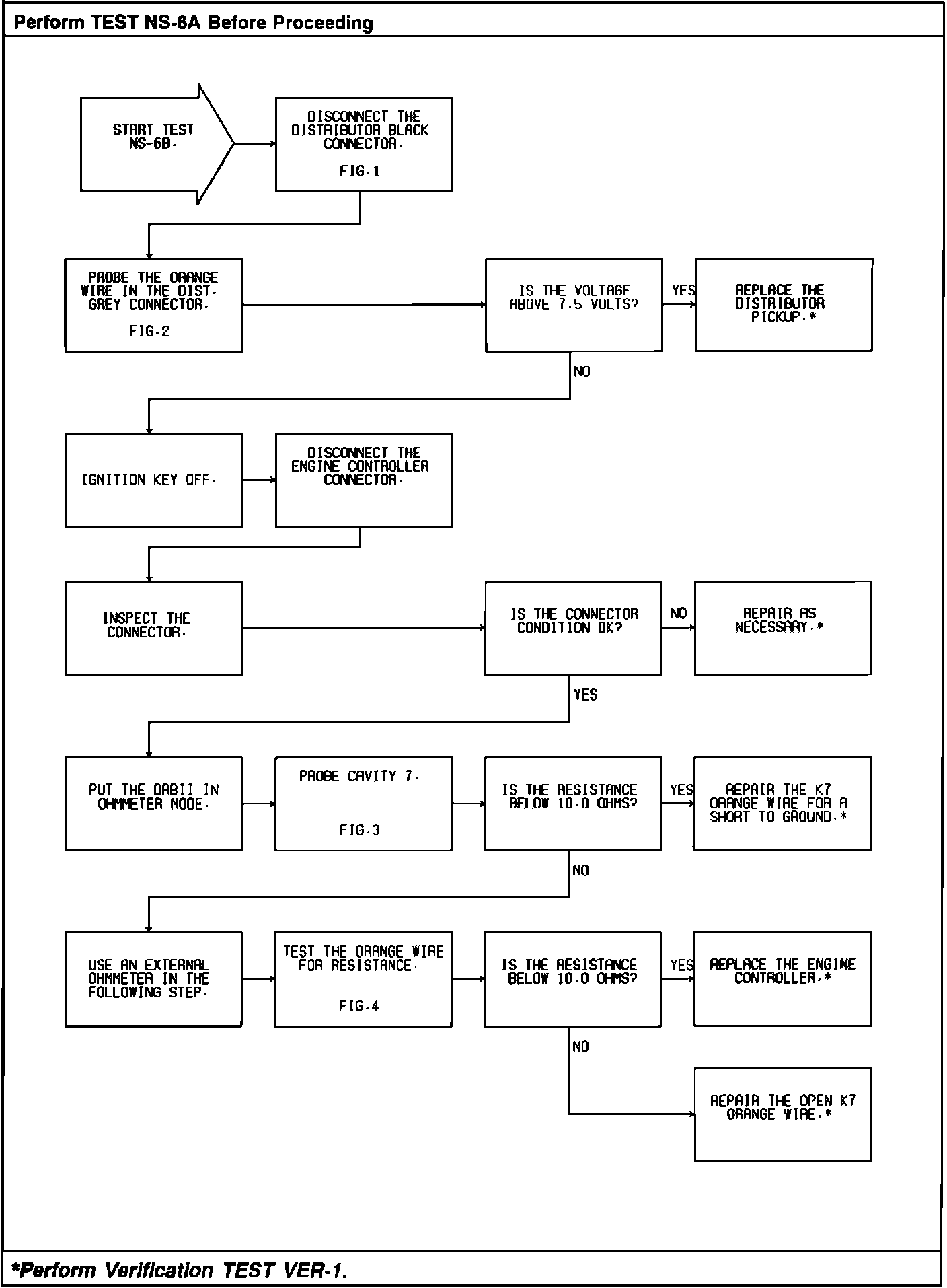

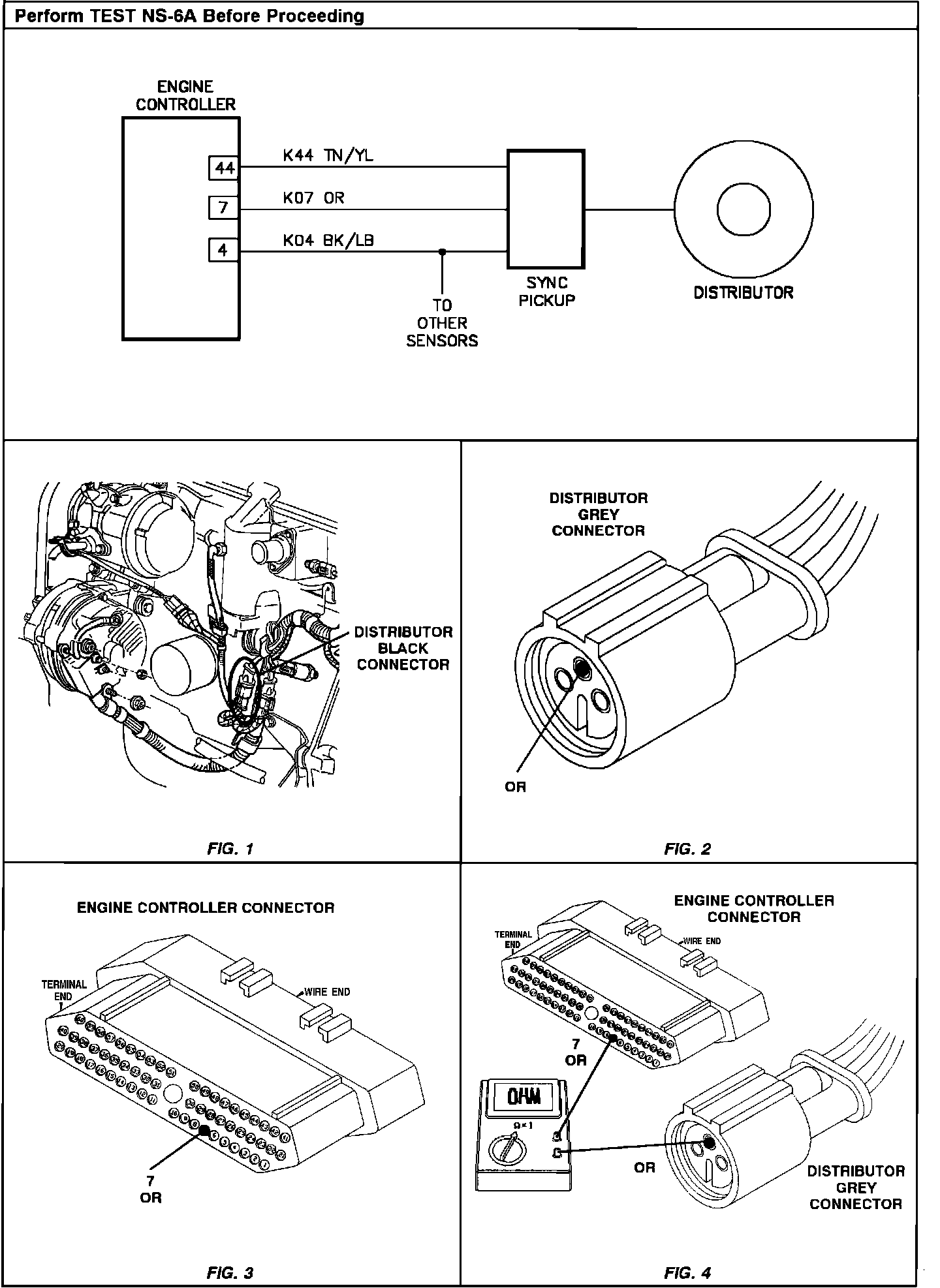

Test NS-6B - "No SYNC Pickup Signal":
