NS-5A Checking Coil & Control Circuit
NS-5A Checking Coil & Control Circuit

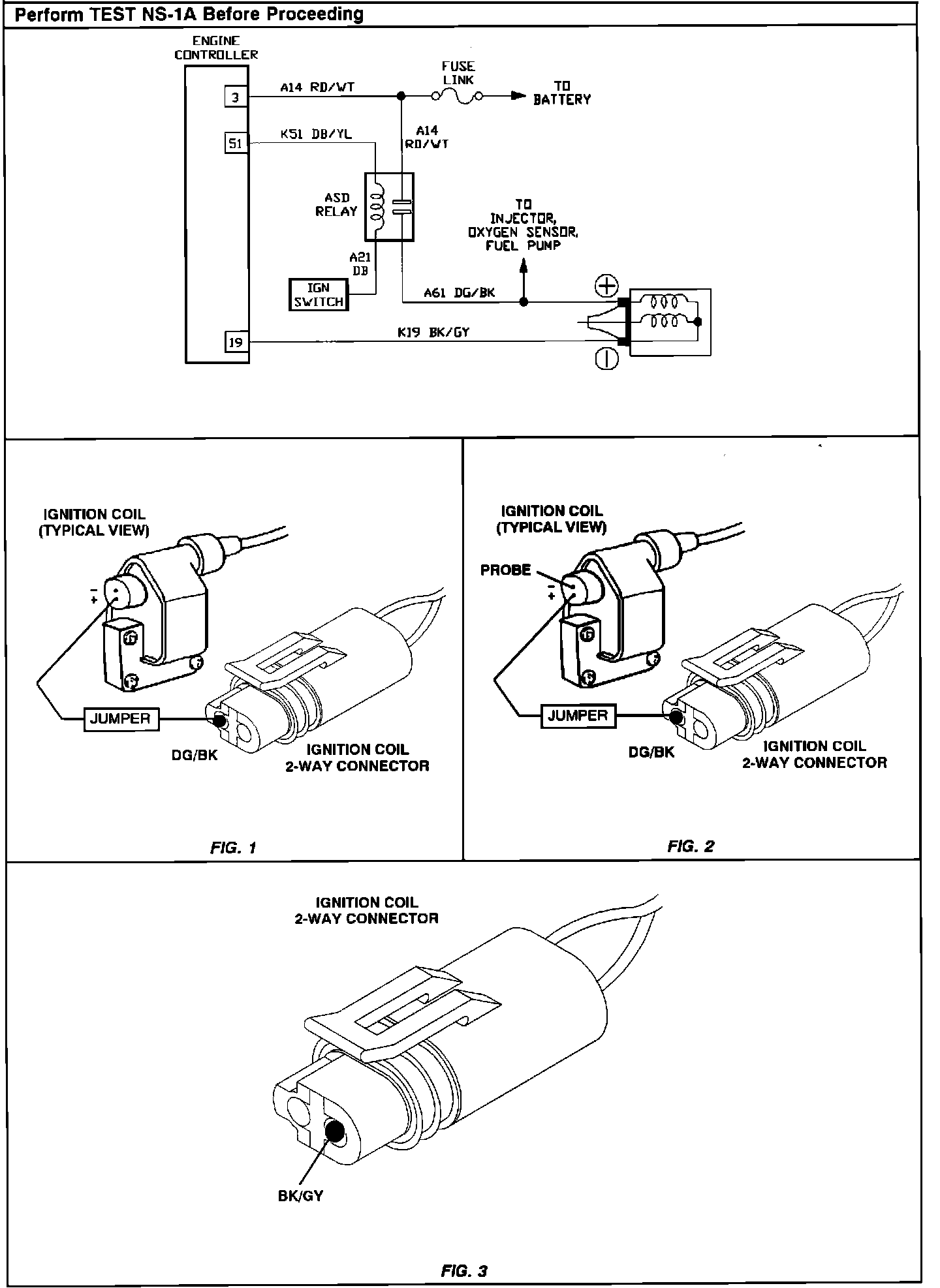

Test NS-5A - Checking Ignition Coil:

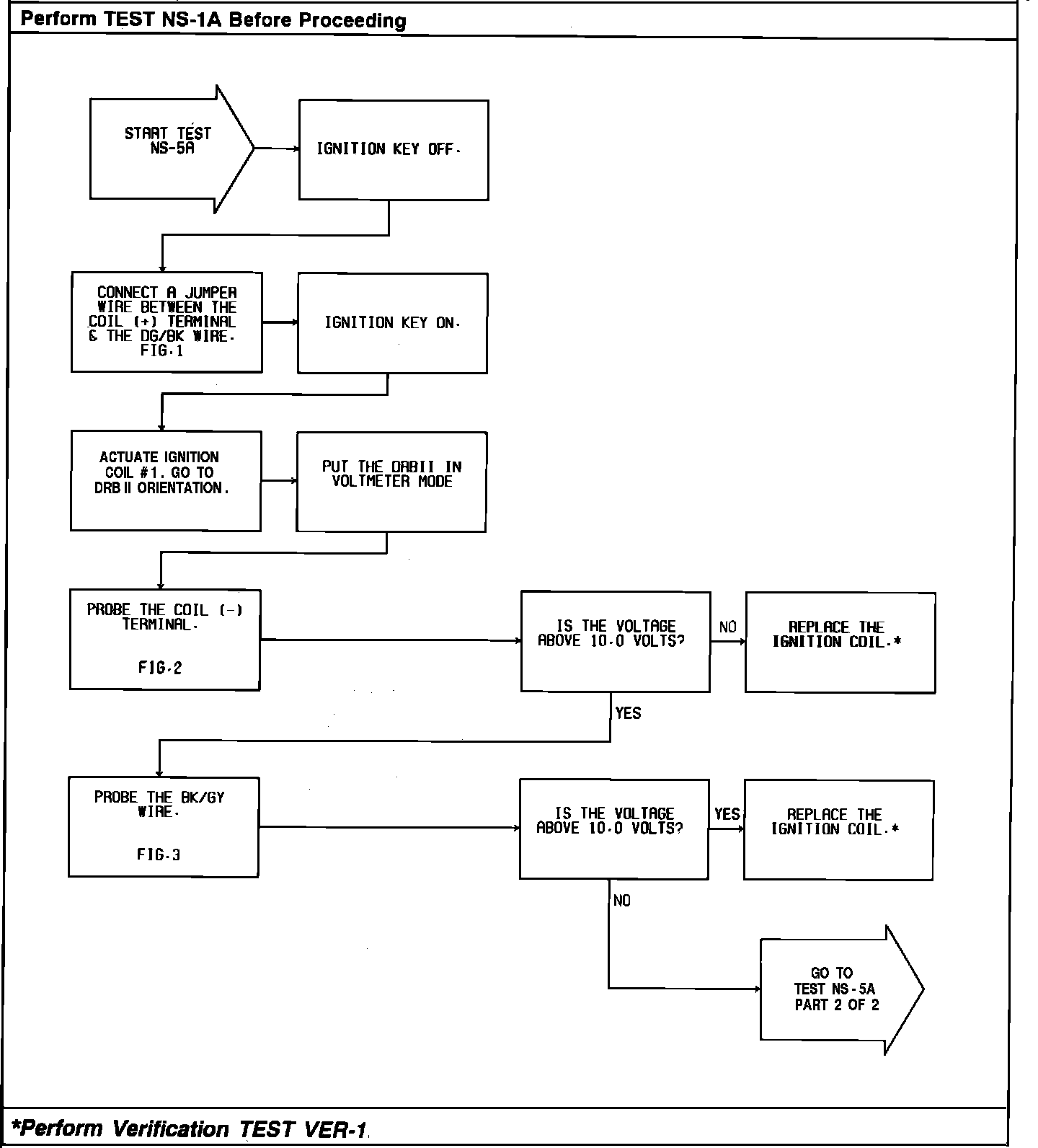

Test NS-5A - Checking Ignition Coil:

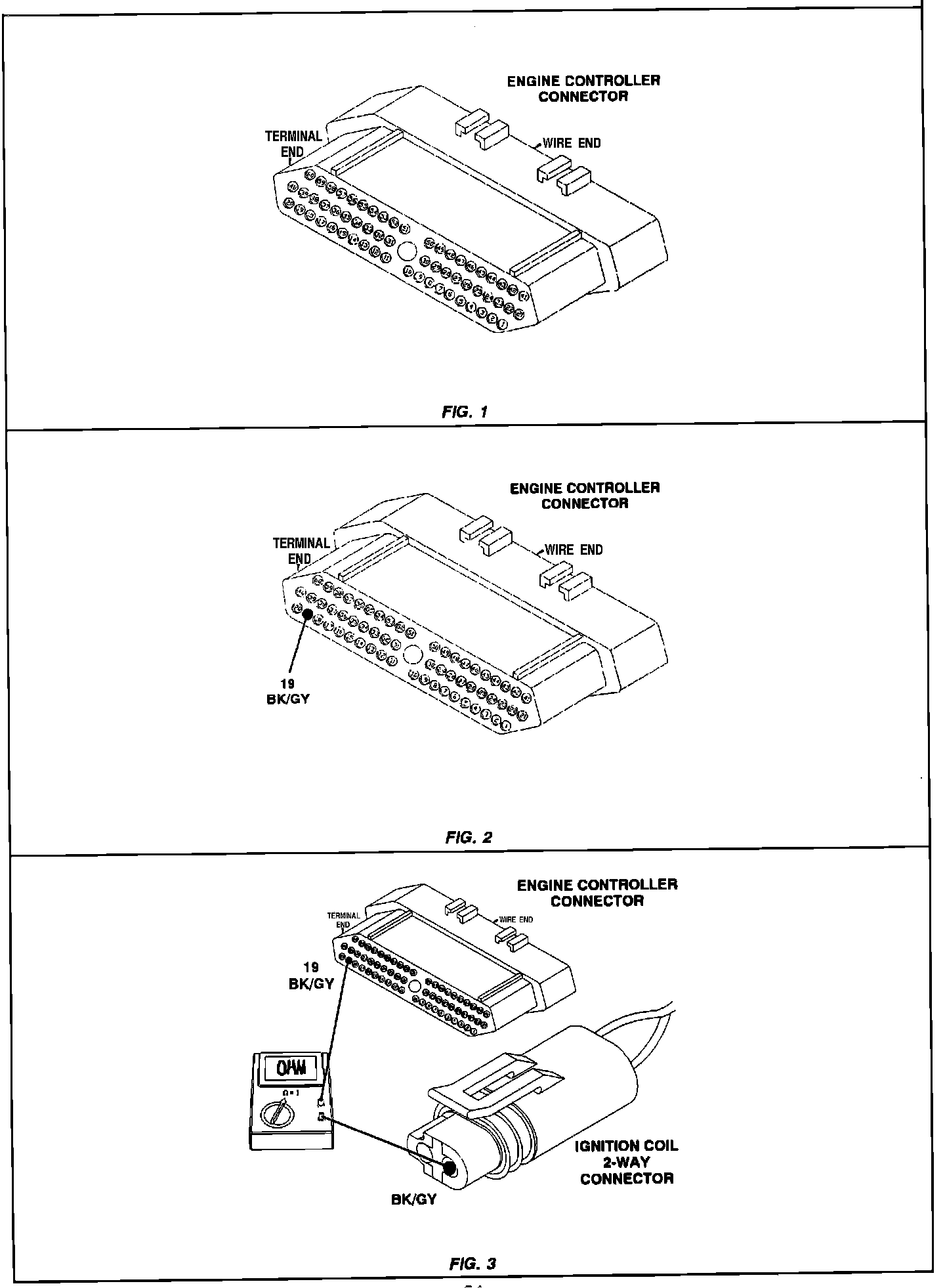

Test NS-5A - Checking Ignition Coil:

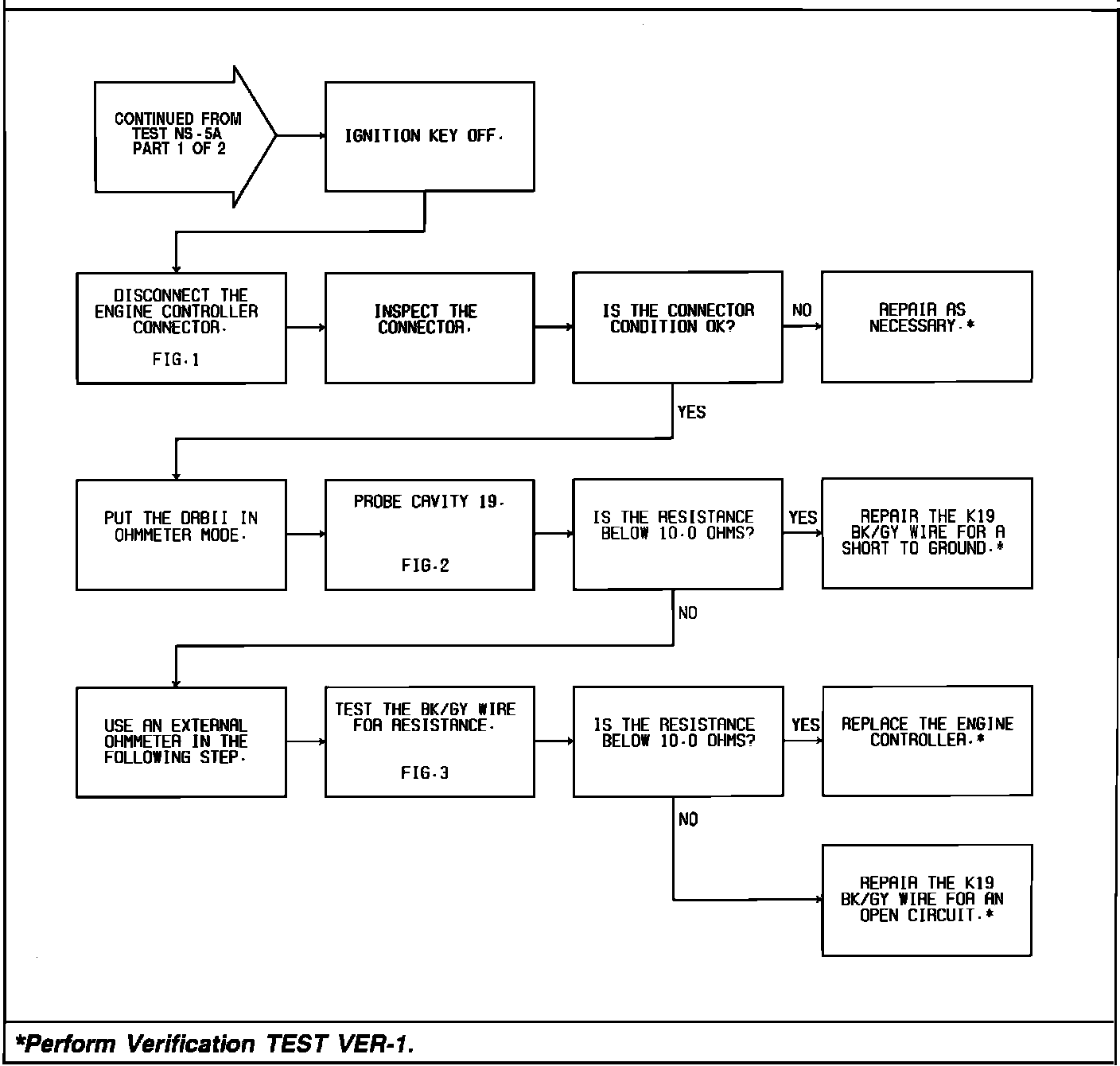

Test NS-5A - Checking Ignition Coil:
