Shadow Convertible L4-153 2.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
NS-4B Checking High Fuel Pressure
NS-4B Checking High Fuel Pressure
High Fuel Pressure:
High Fuel Pressure:

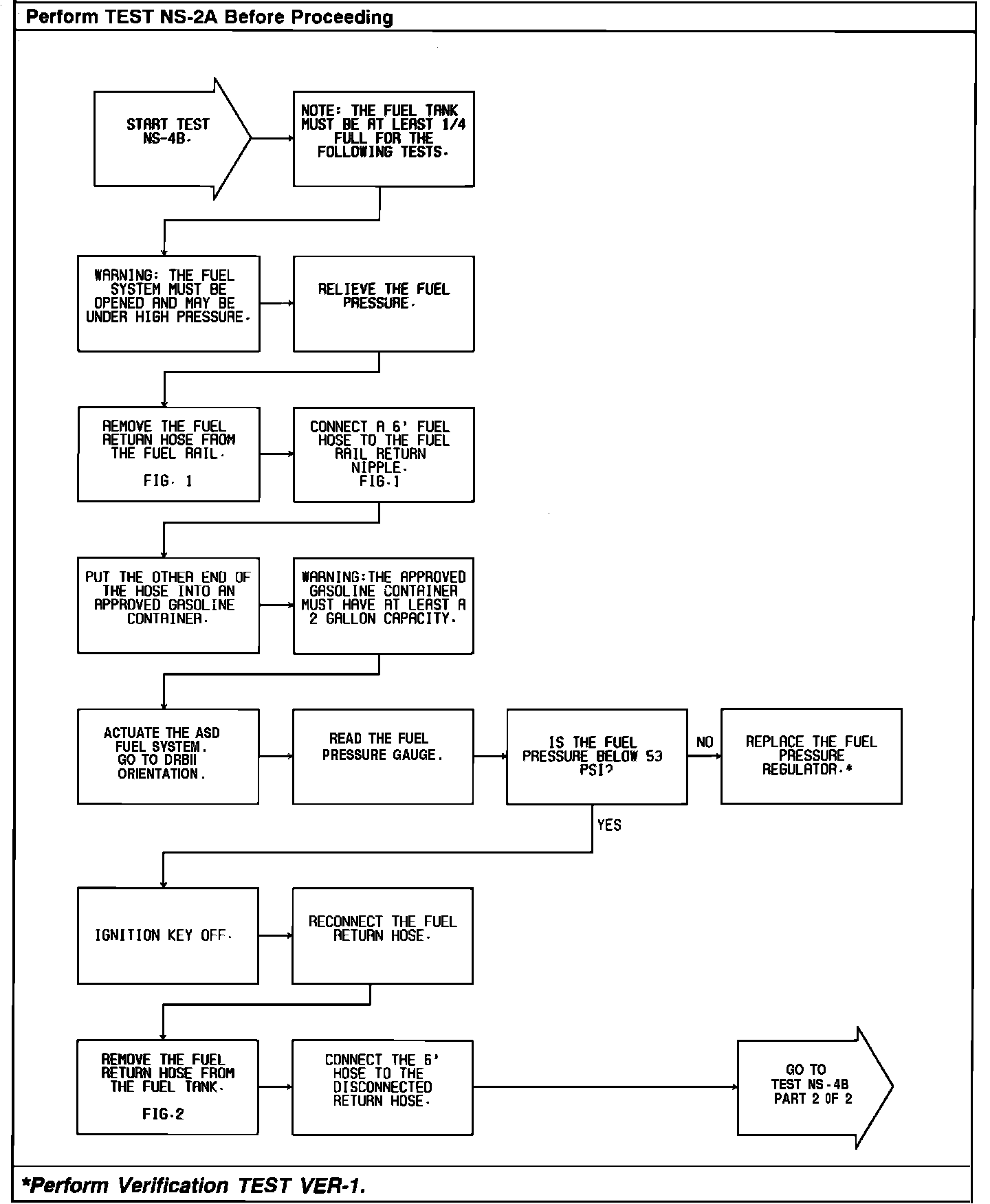

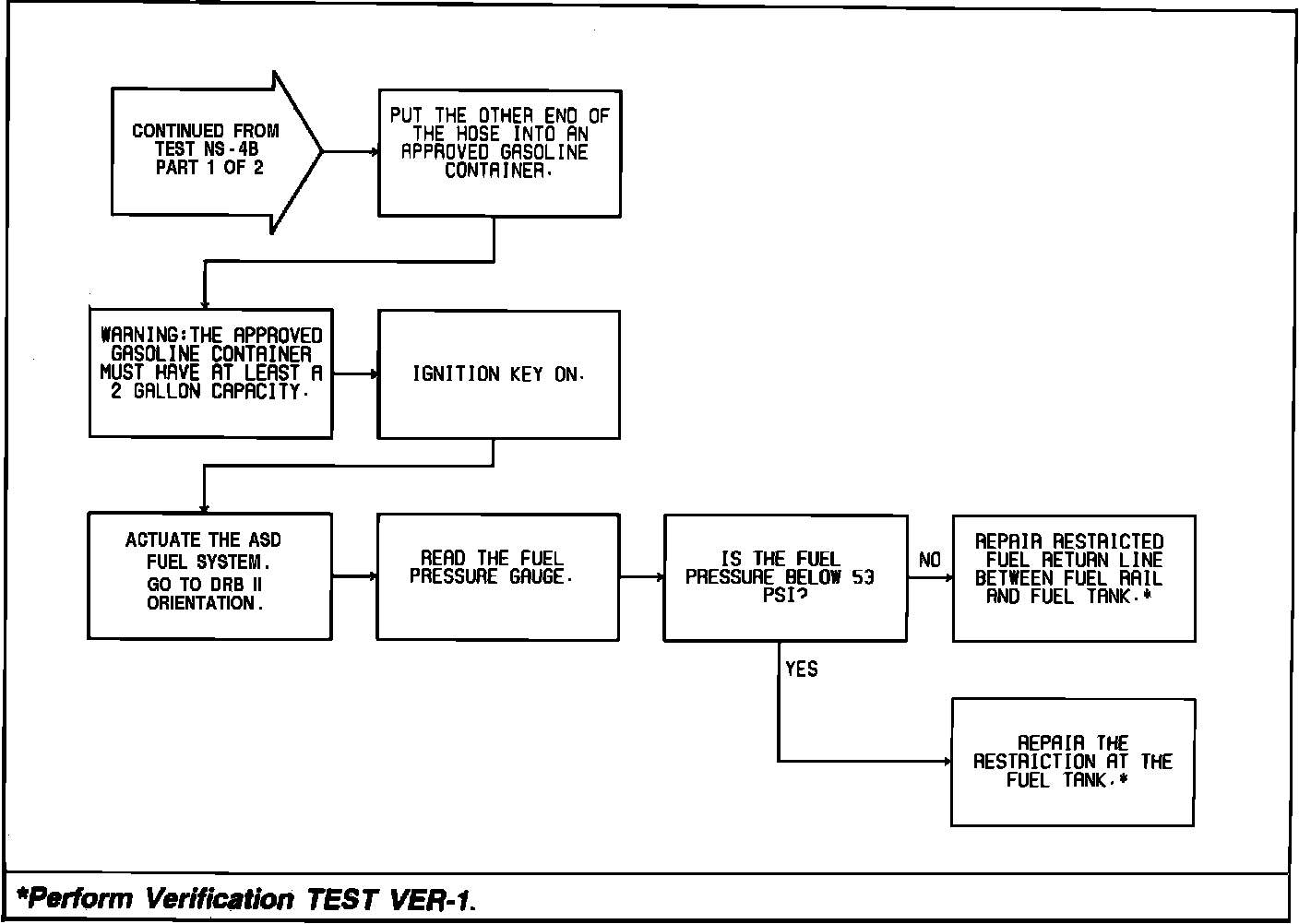

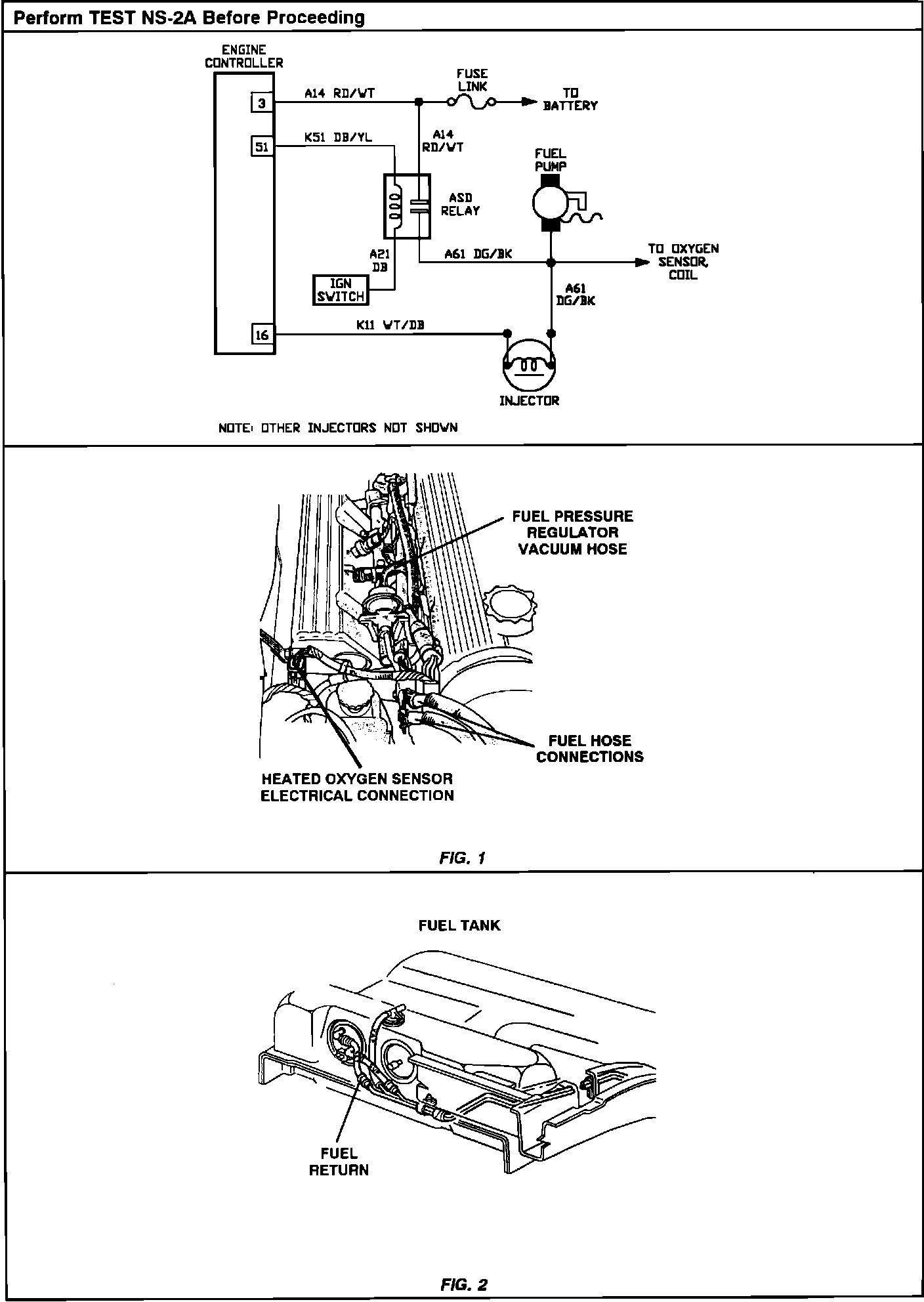

Test NS-4B - High Fuel Pressure:
