FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Dodge
>>
1991
>>
Shadow Convertible L4-153 2.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
NS-4A Checking Low Fuel Pressure
NS-4A Checking Low Fuel Pressure

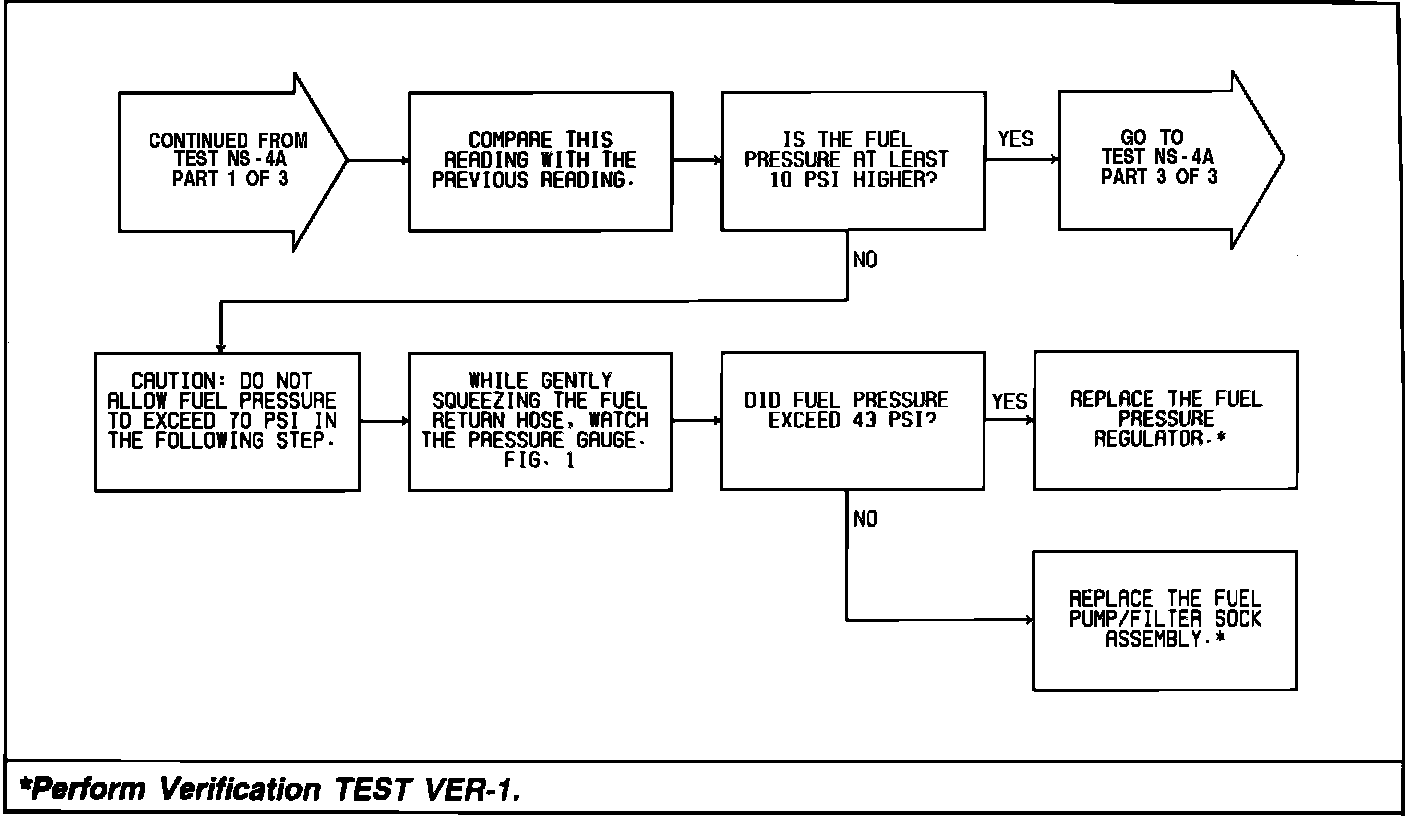

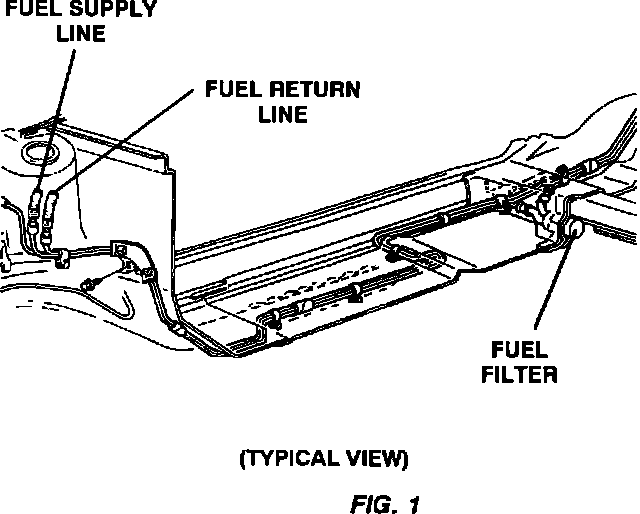

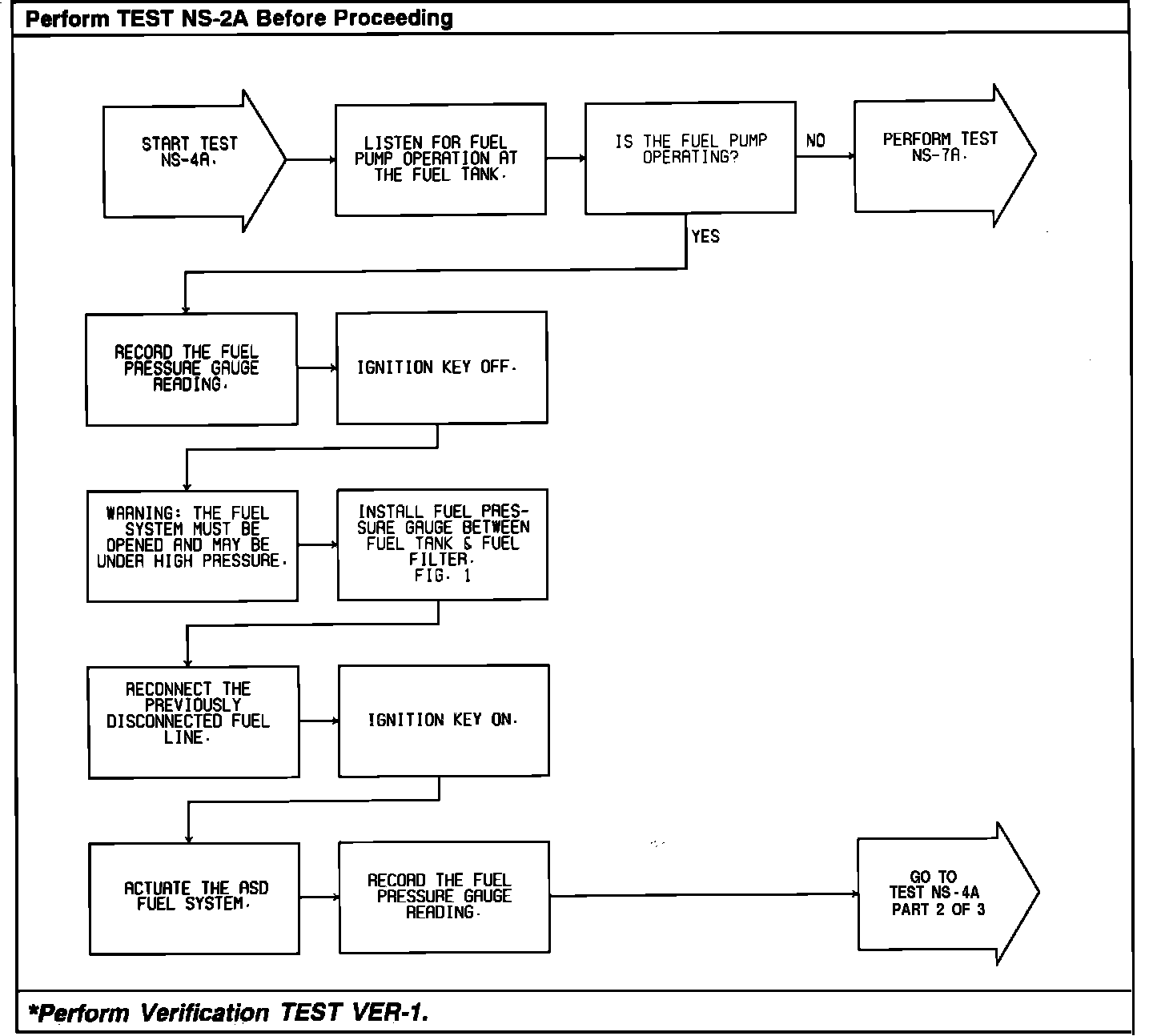

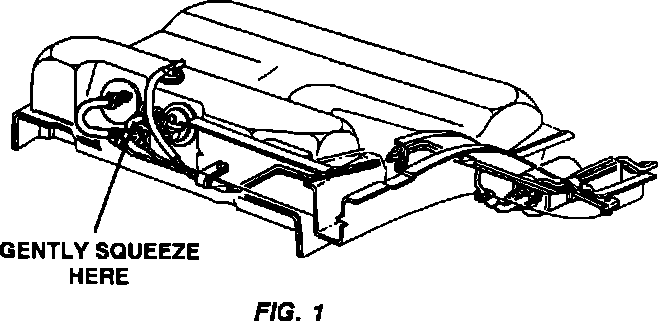

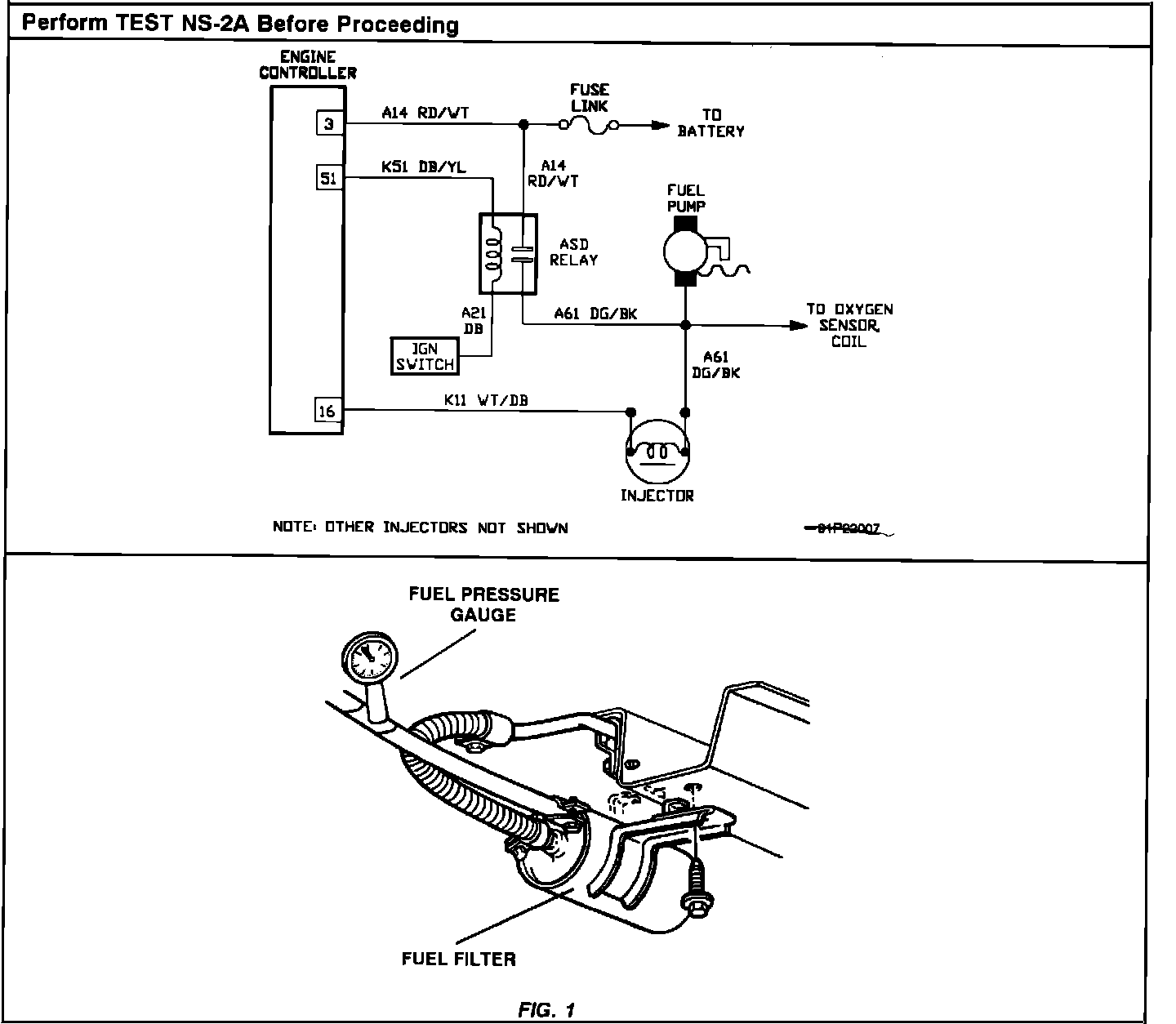

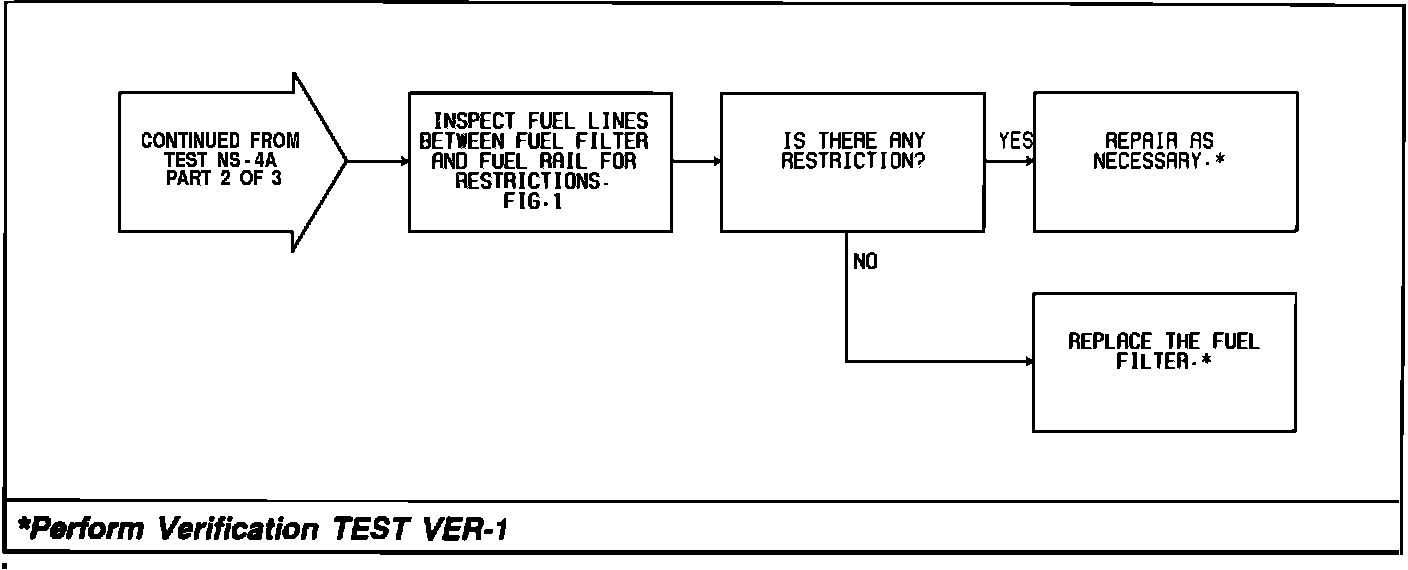

Low Fuel Pressure:
Low Fuel Pressure:
Low Fuel Pressure:
Low Fuel Pressure:
Low Fuel Pressure:
Low Fuel Pressure:
