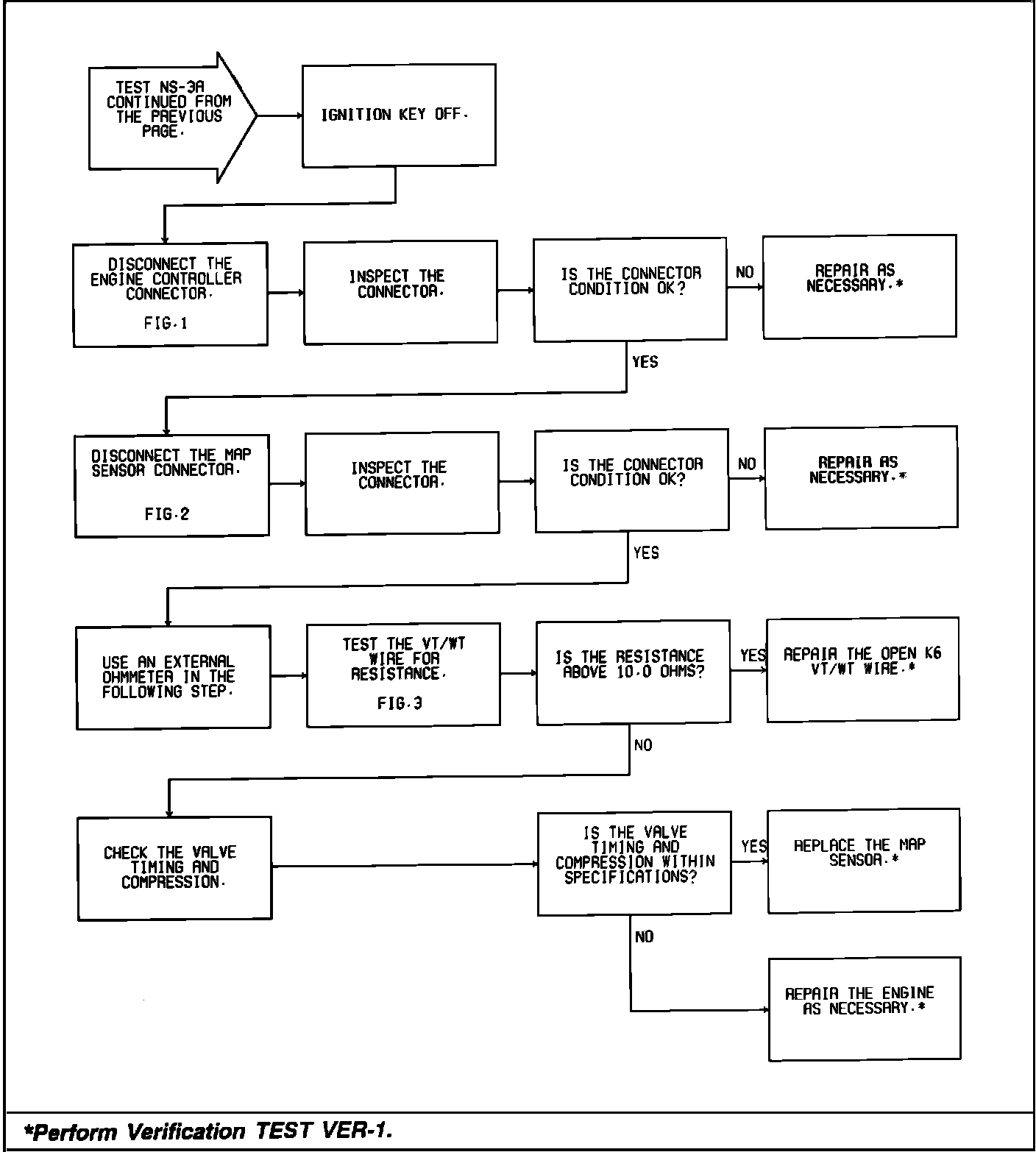

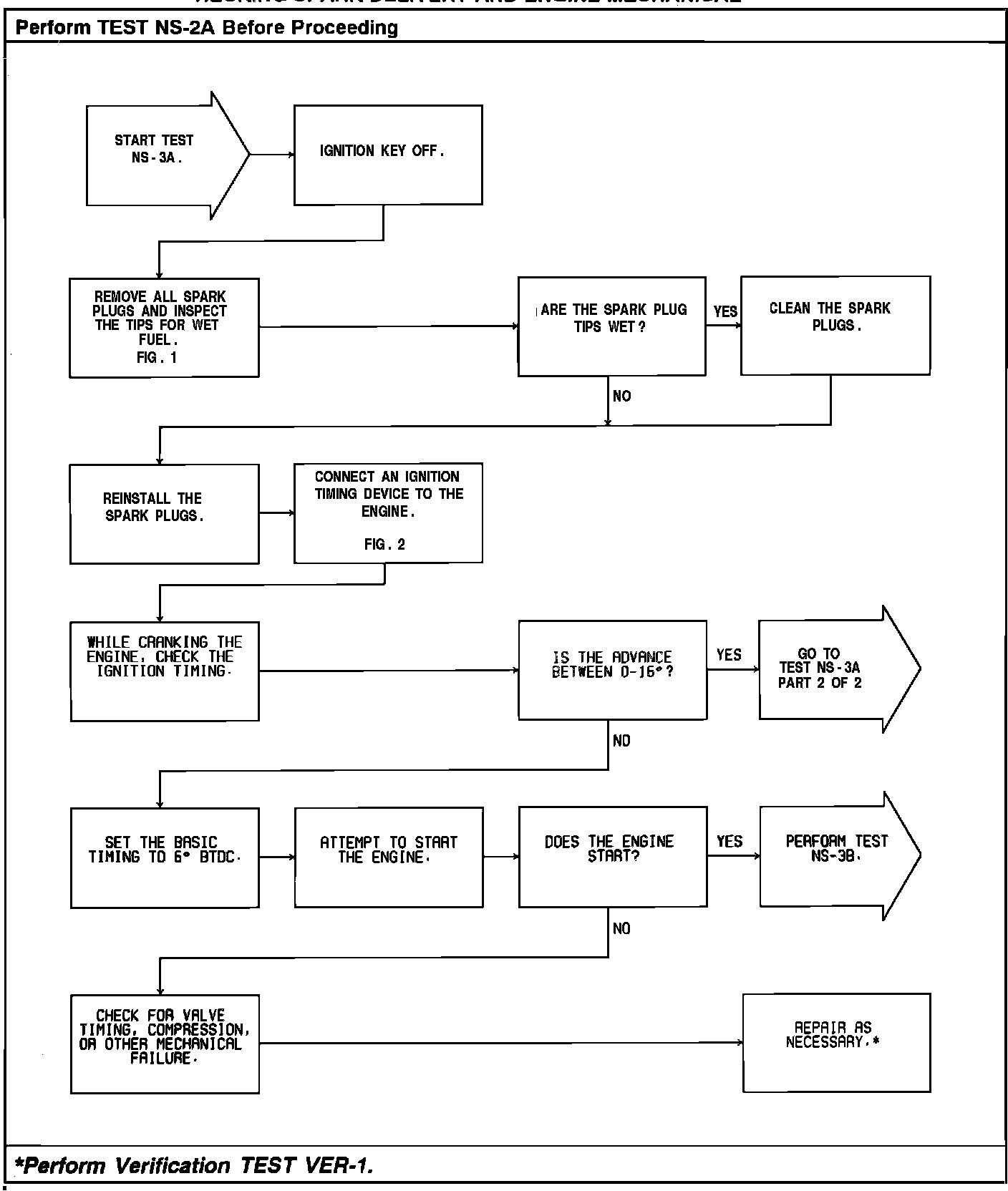

NS-3A Spark Delivery and Engine Mechanical Systems

Spark Delivery And Engine Mechanical:



Spark Delivery And Engine Mechanical:



Spark Delivery And Engine Mechanical:



Spark Delivery And Engine Mechanical:
