Shadow Convertible L4-153 2.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>

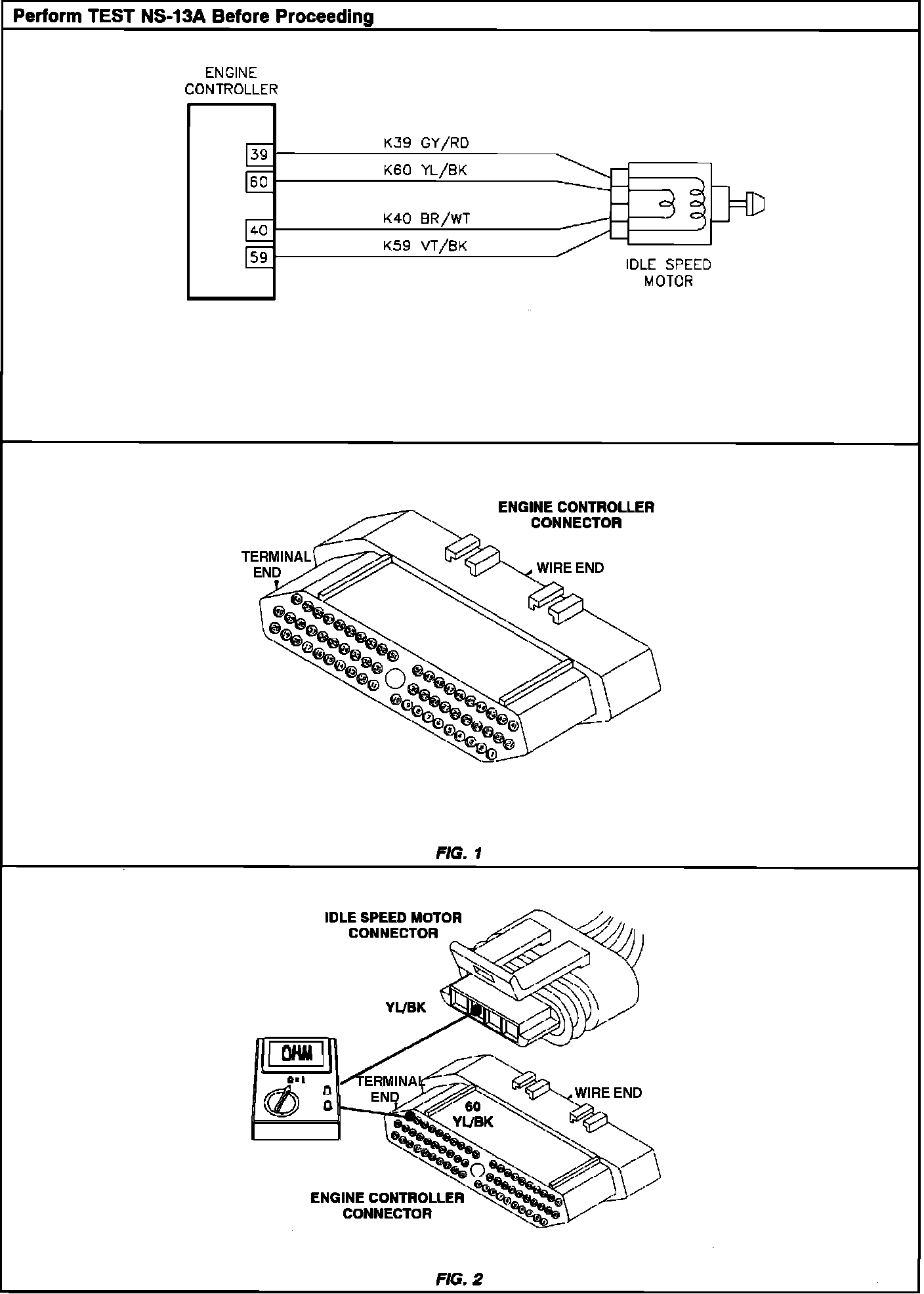

NS-13E Checking Idle Speed Motor Operation
NS-13E Checking Idle Speed Motor Operation

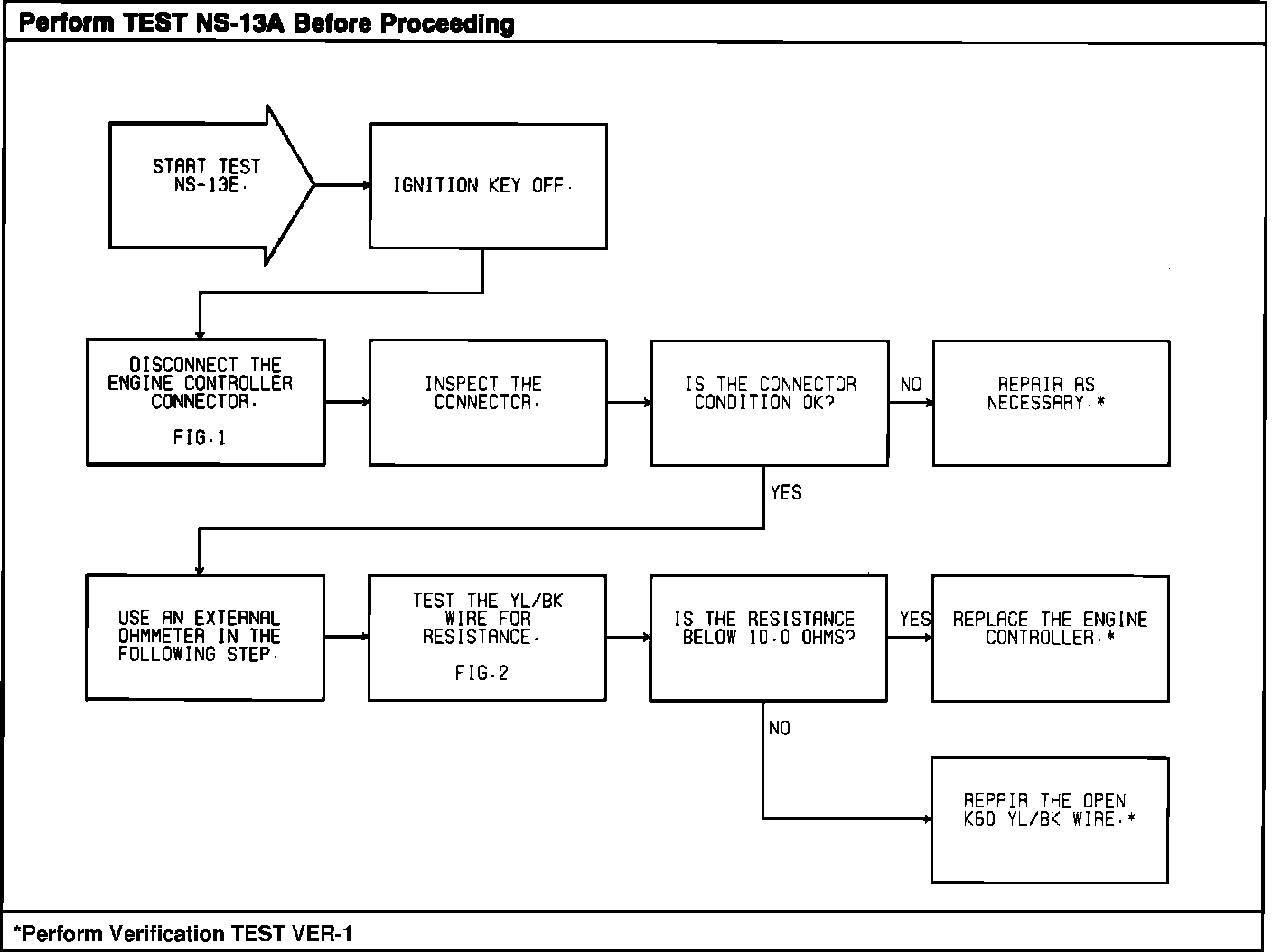

Test NS-13E - Idle Speed Motor Operation:
Test NS-13E - Idle Speed Motor Operation:
