Shadow Convertible L4-153 2.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
NS-12A Repairing Fault In Injector Circuit
NS-12A Repairing Fault In Injector Circuit

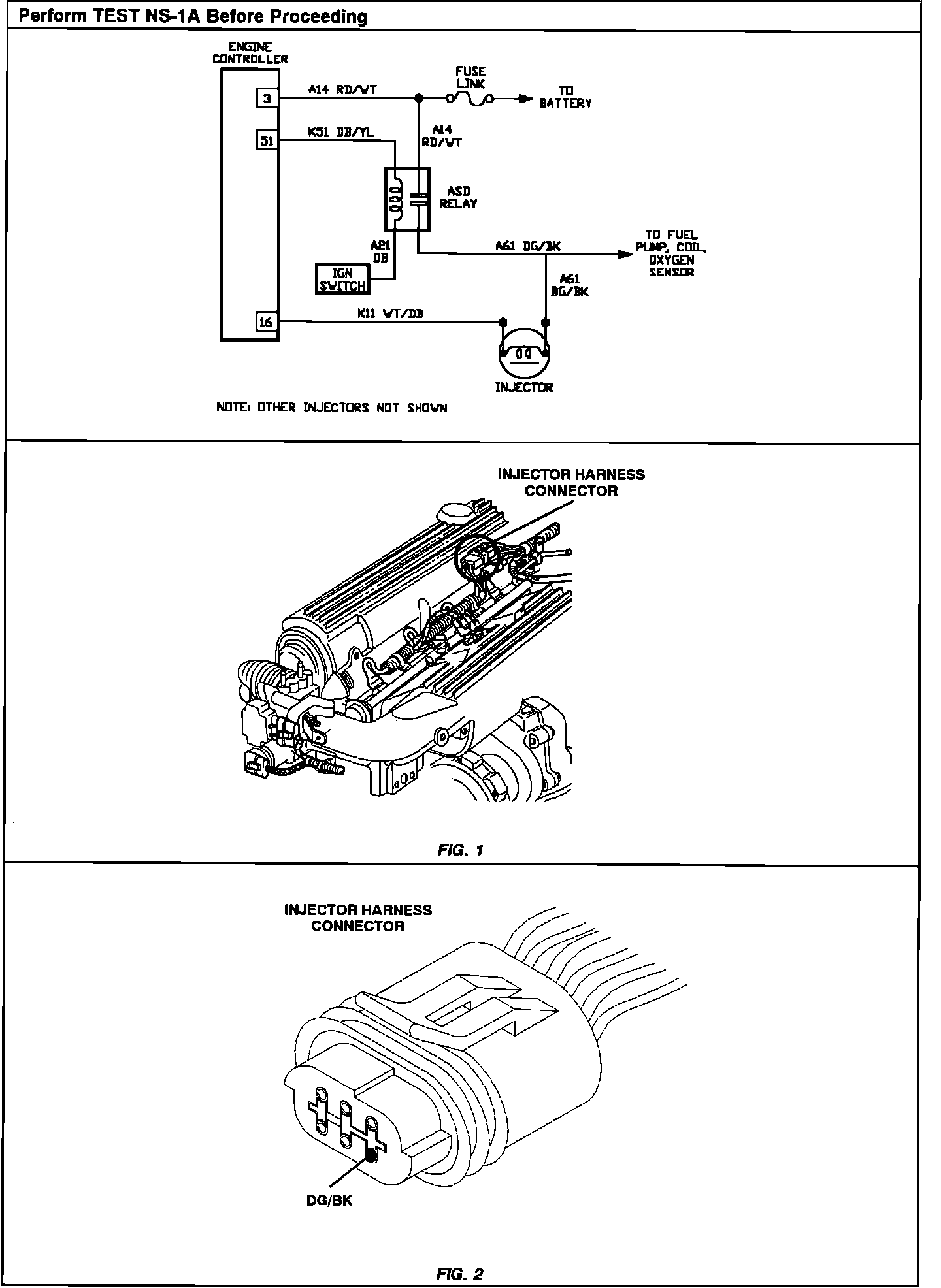

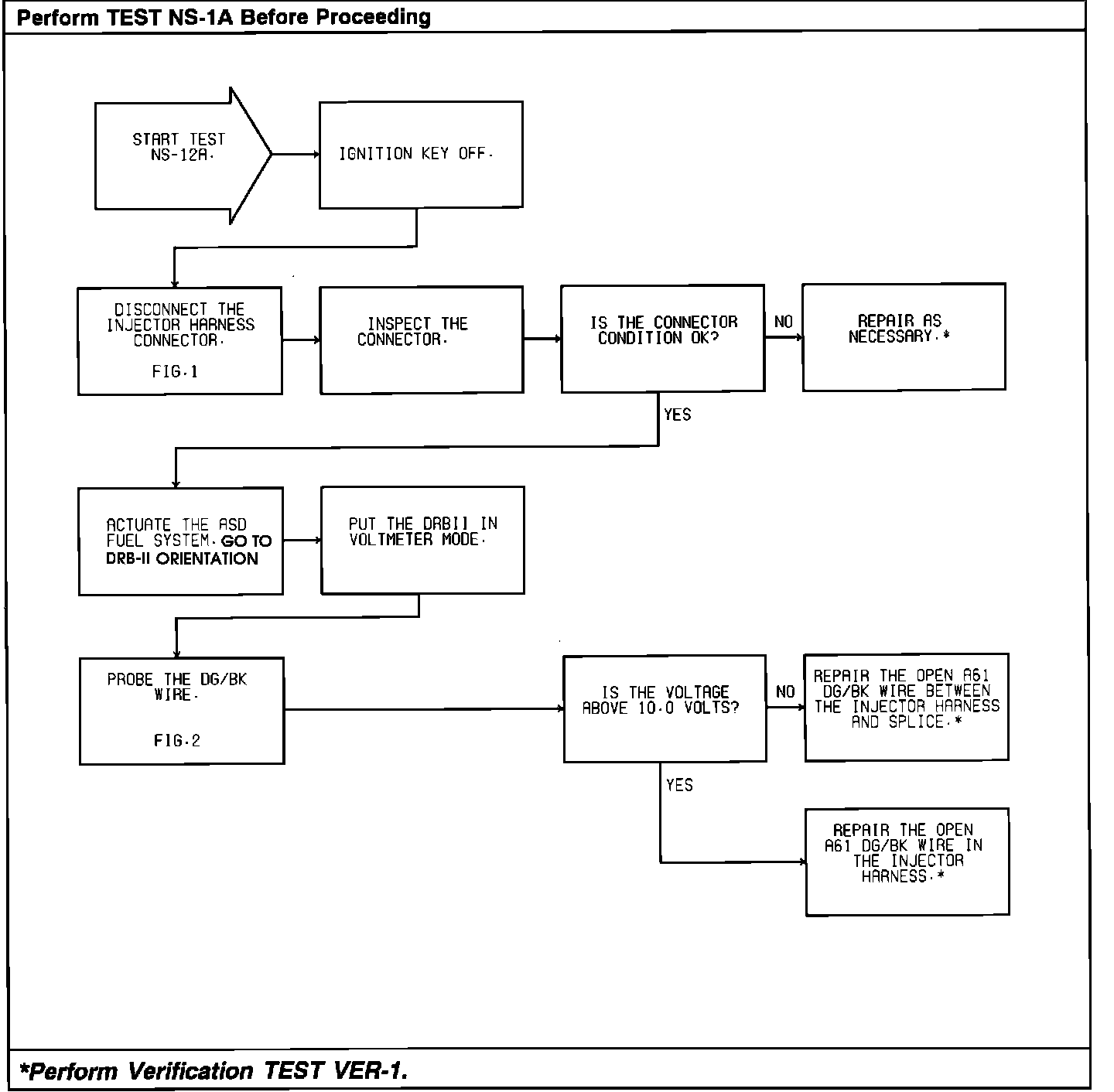

Test NS-12A - Injector Circuit Fault:
Test NS-12A - Injector Circuit Fault:
