Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Door/Trunk Ajar Indicator/Lamp >> Locations

Door/Trunk Ajar Indicator/Lamp: Locations

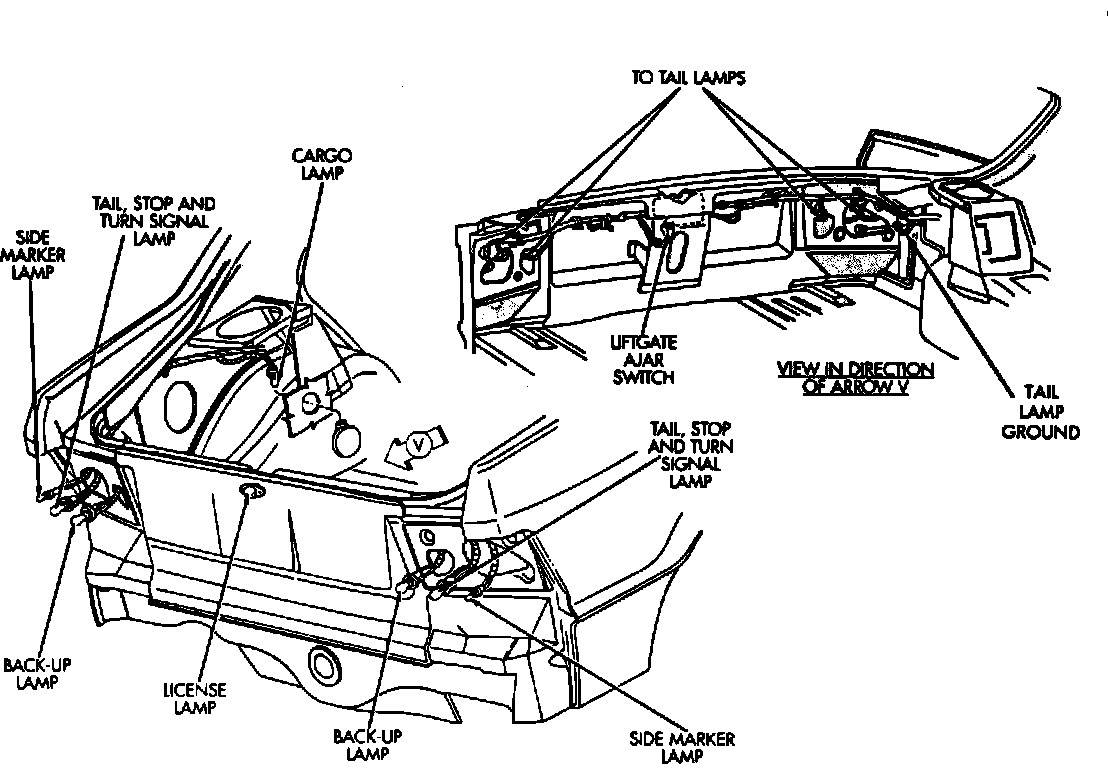

Rear End Components & Connectors:




Rear Center Of Luggage Compartment
