Engine Mount: Service and Repair

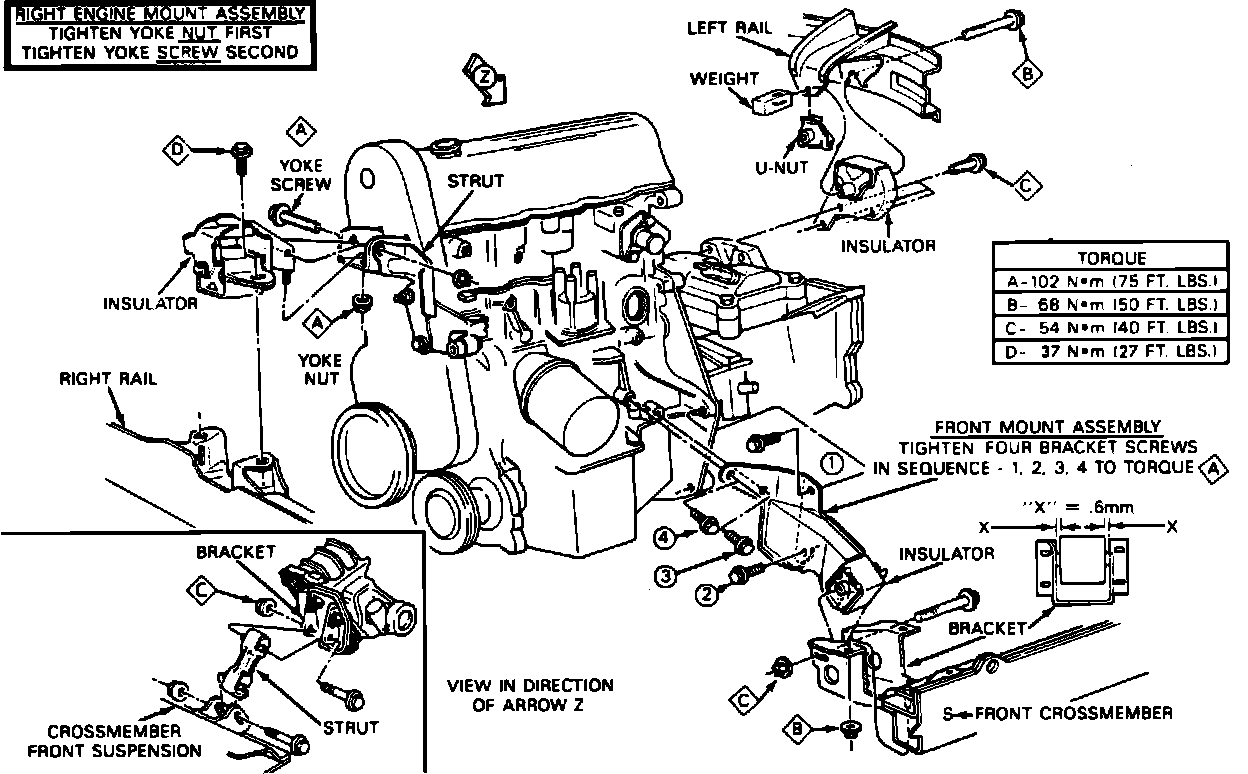

Fig. 1 Engine Mounts. 1989-91:

Fig. 2 Anti Roll Strut & Damper:

CAUTION: When positioning the engine, check driveshaft length. The engine mounts incorporate slotted bolt holes to permit side-to-side positioning of the engine thereby affecting the length of the driveshaft. Failure to properly position engine may result in extensive damage to the engine.

Refer to Fig. 1 and 2 when replacing the engine mounts.
