Cooling System: Testing and Inspection

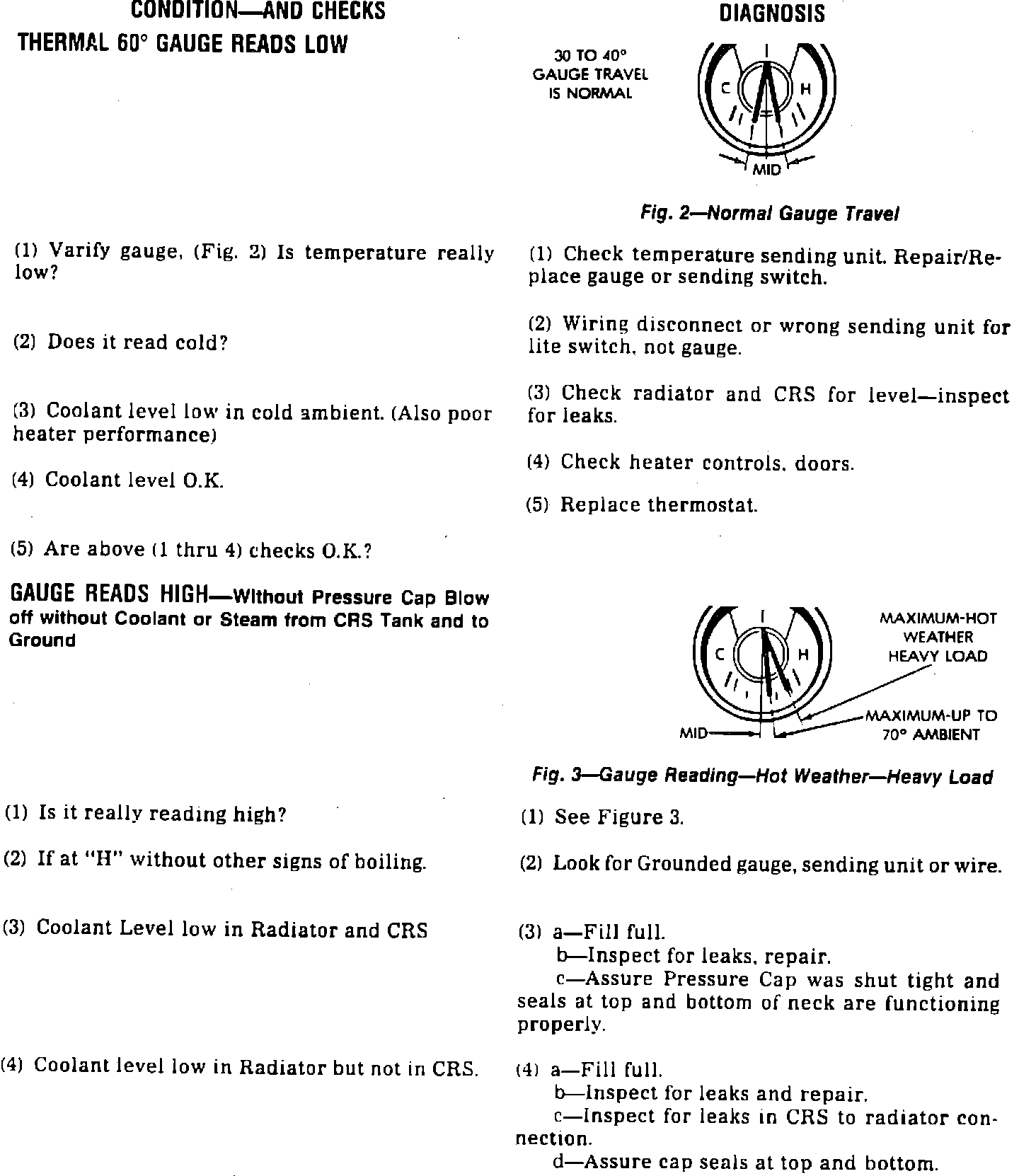

Cooling (Part 1 Of 7) - For Illustration Only:

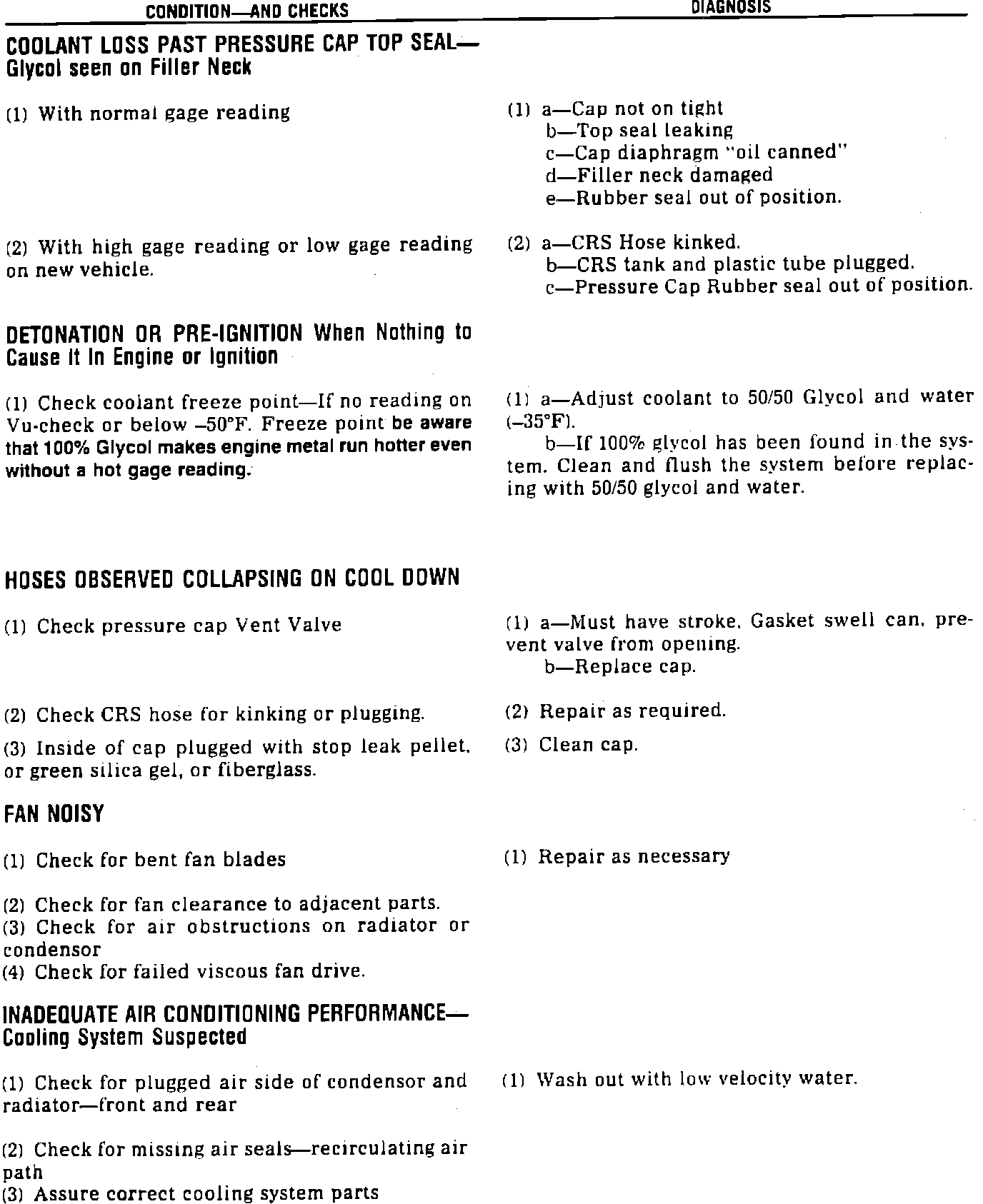

Fig. 1 Cooling (Part 2 Of 7):

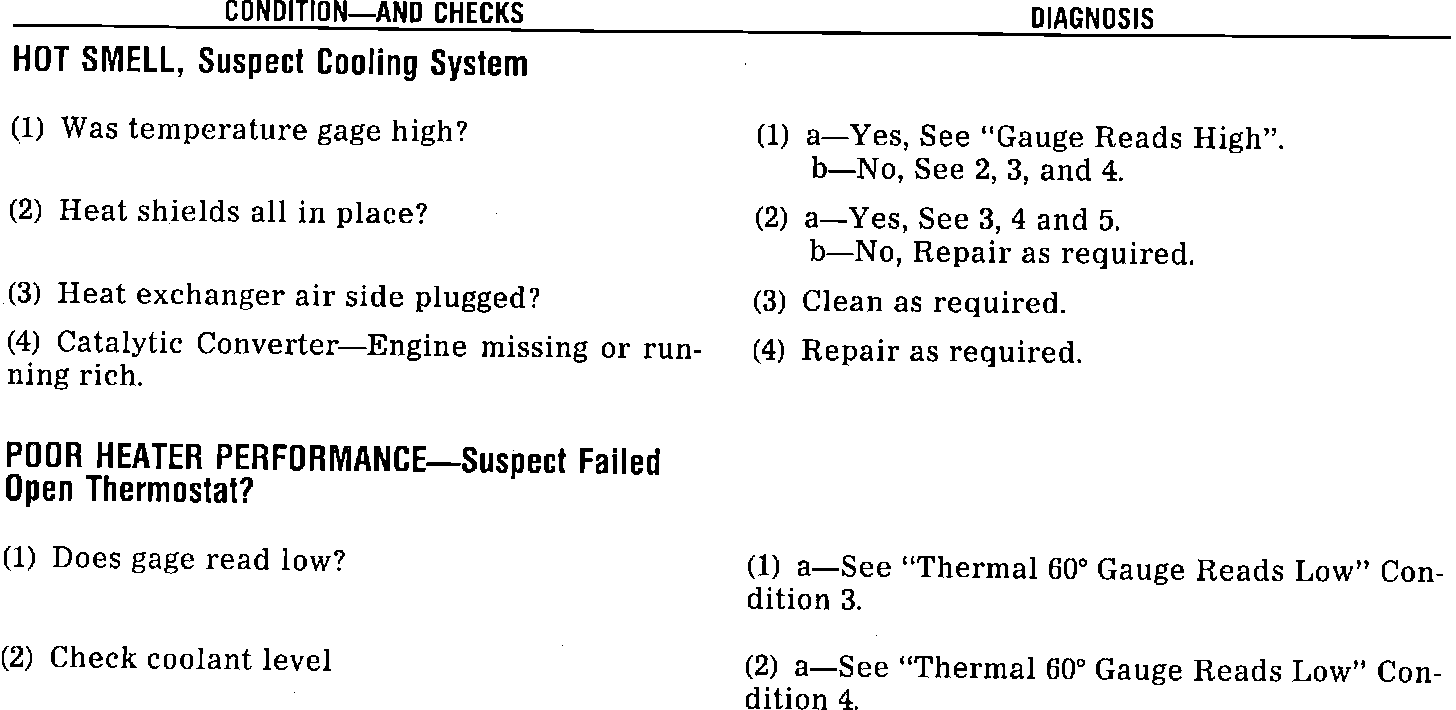

Fig. 1 Cooling (Part 3 Of 7):

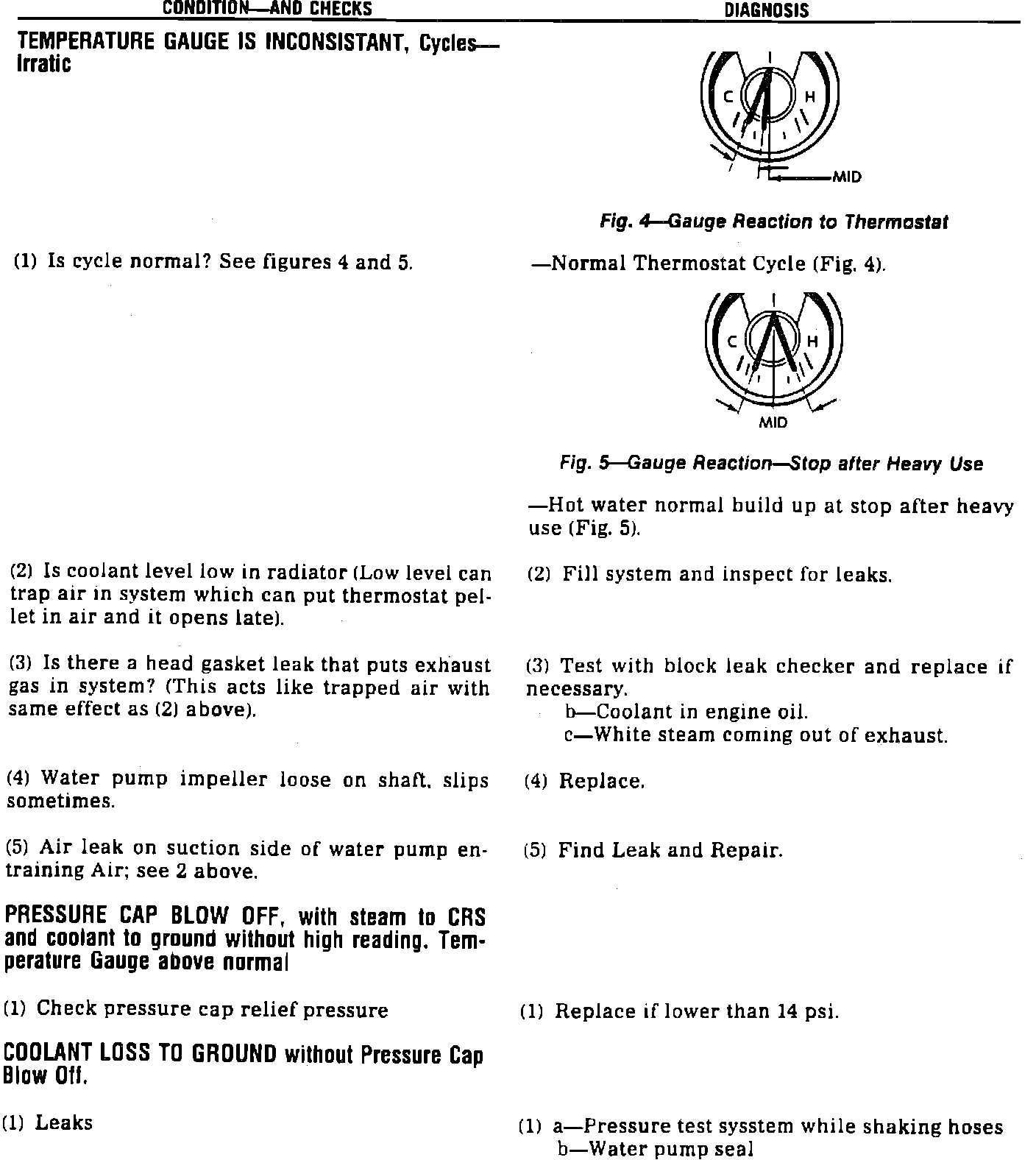

Fig. 1 Cooling (Part 4 Of 7):

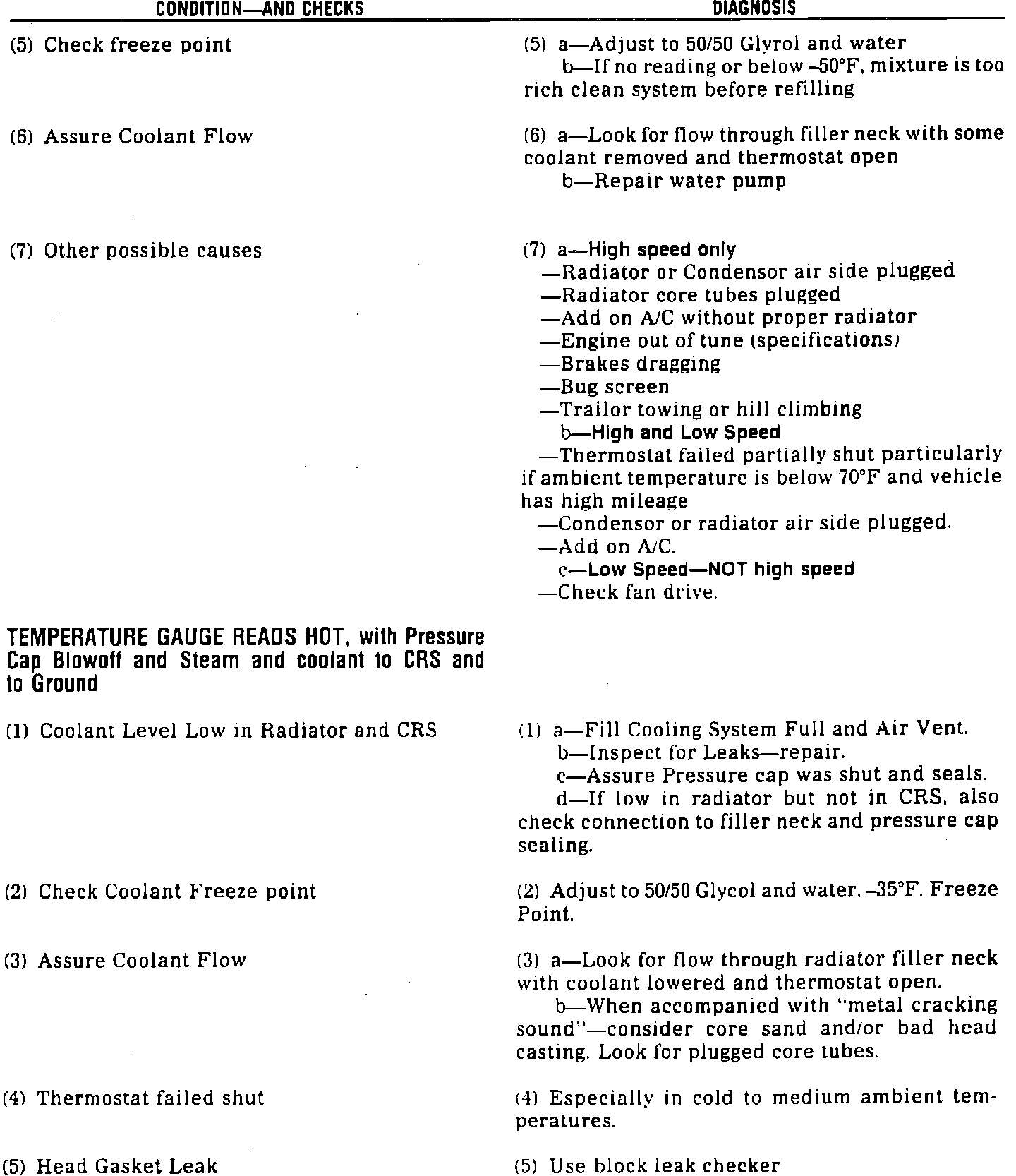

Fig. 1 Cooling (Part 5 Of 7):

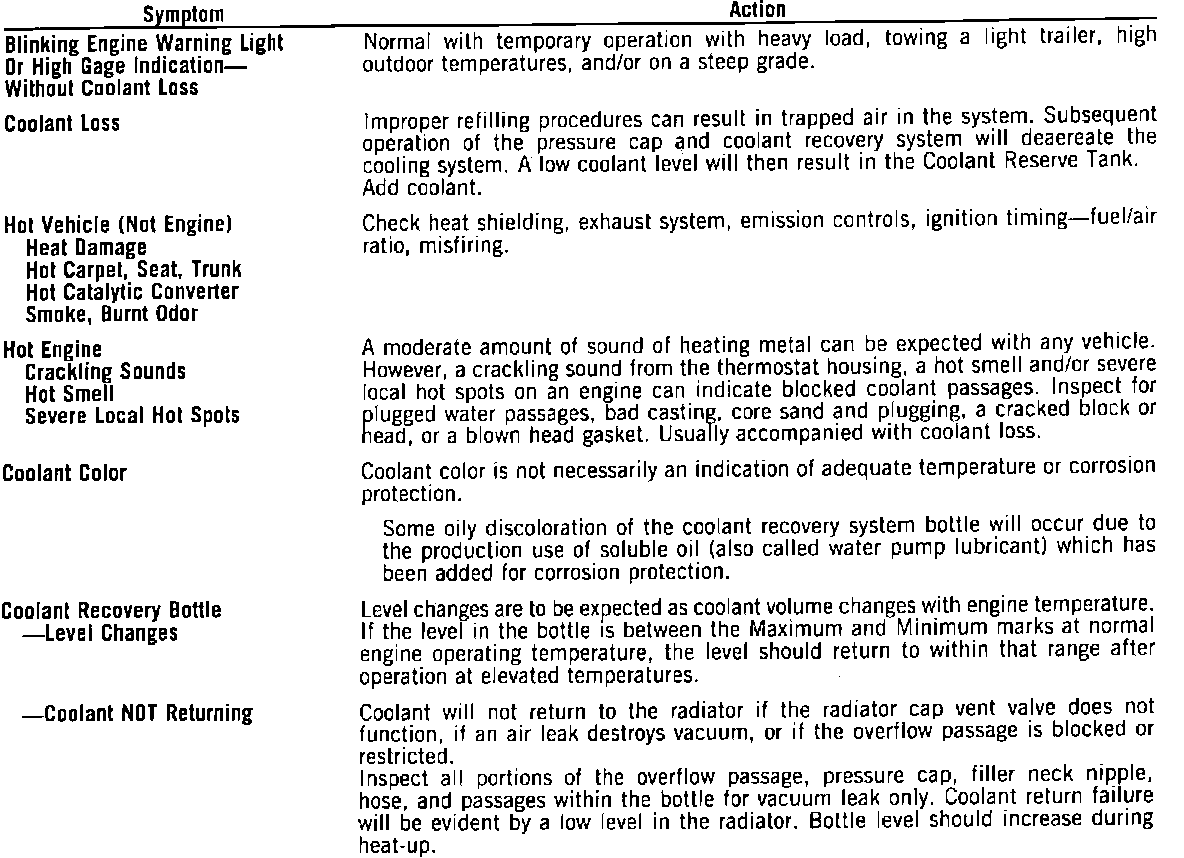

Fig. 1 Cooling (Part 6 Of 7):

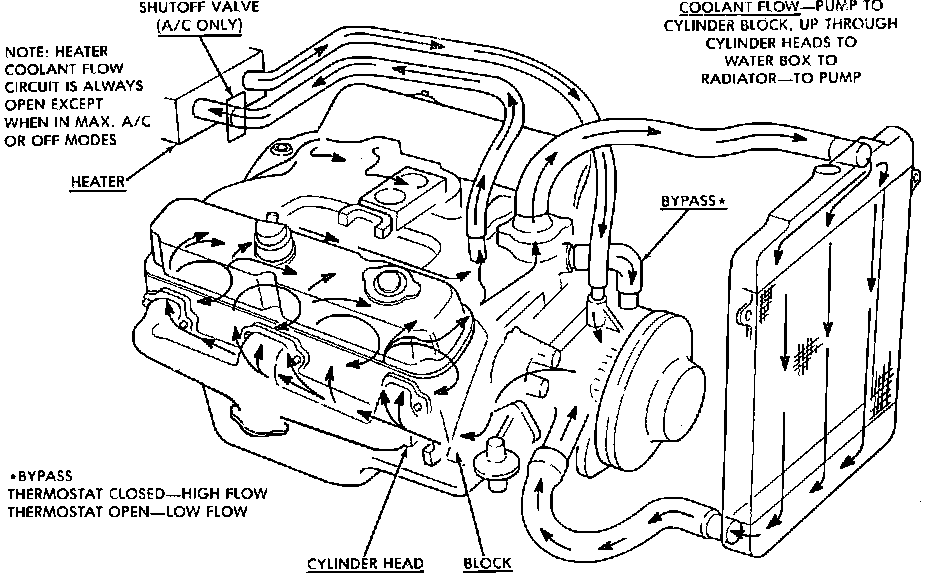

Fig. 1 Cooling (Part 7 Of 7):
