Shadow Convertible L4-153 2.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Instrument Panel Components & Connectors

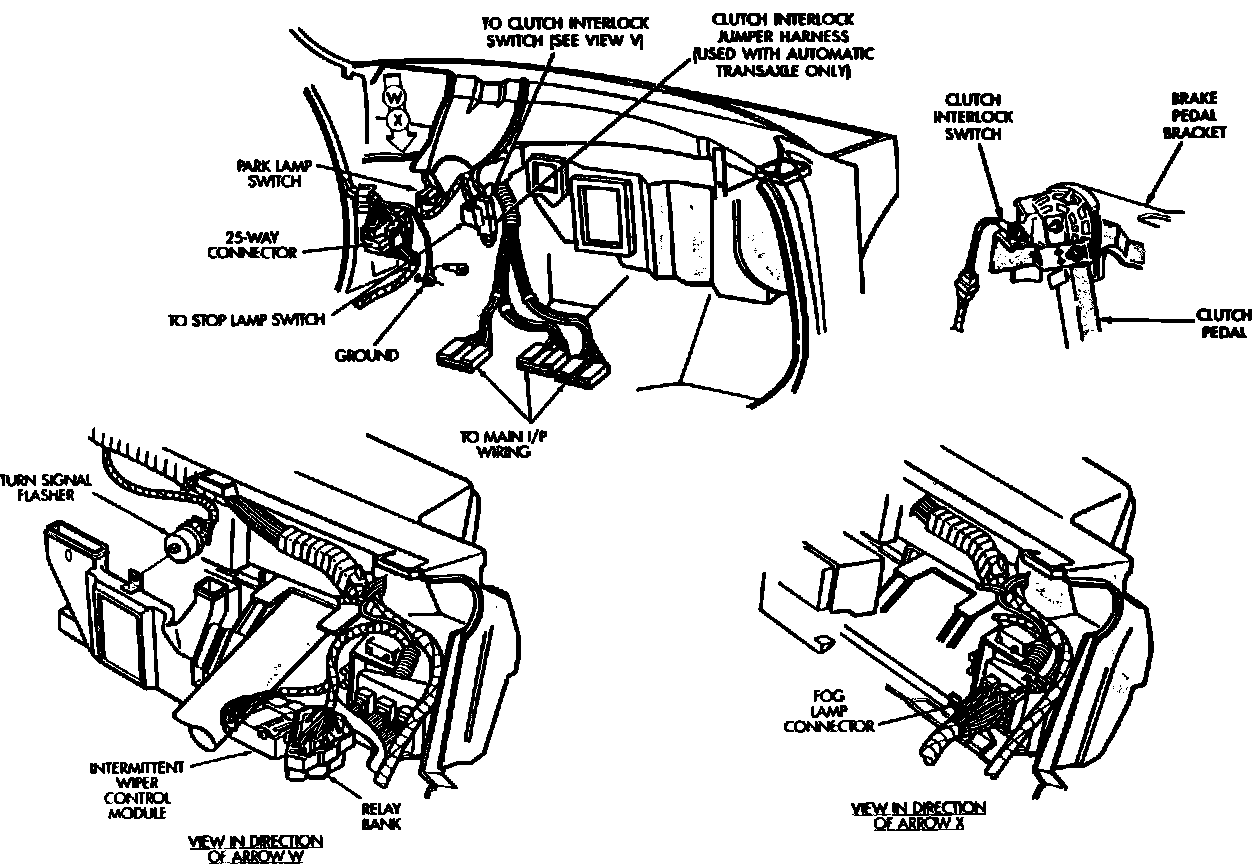

Instrument Panel Components & Connectors
Instrument Panel Connectors & Switches:
Above Clutch Pedal
