Instrument Panel Circuit Board
>>
Without Tachometer
Without Tachometer

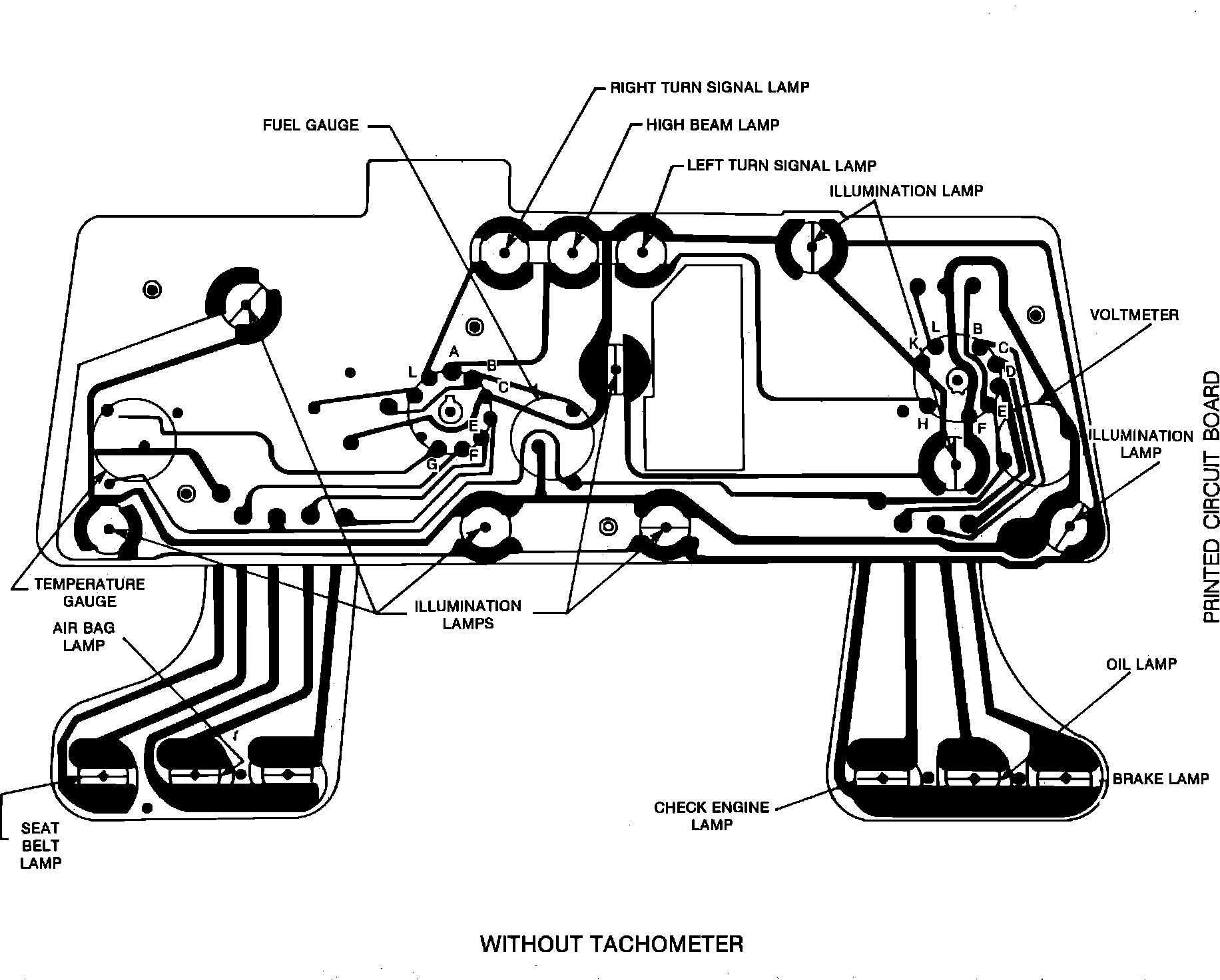

Printed Circuit Board Without Tachometer:
