Cruise Control Servo Cable: Adjustments

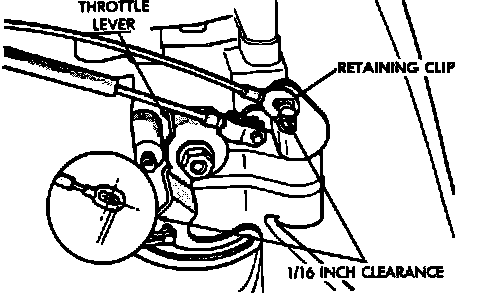

Fig. 88 Speed Control Cable Adjustment. FWD:

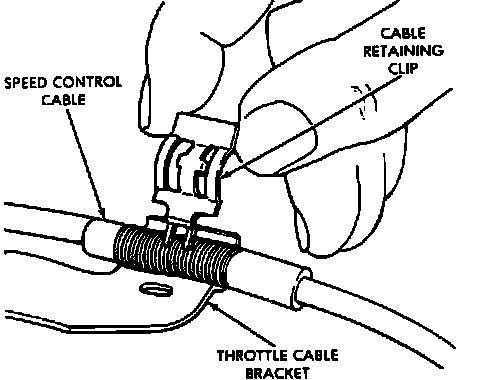

Fig. 89 Cable Retaining Clip. FWD:

1. Clearance between throttle stud and cable clevis should be 1/16 inch.
2. Adjust cable by removing cable retaining clip at throttle bracket. Do not pull throttle away from curb idle.
3. Reinstall cable retaining clip.
