Seat Adjusting Mechanisms - Identification

90chrysler15
SUBJECT: Front Seat Adjuster and Track Covers
NO.: 23-14-90

GROUP: BODY

DATE: Nov. 19, 1990

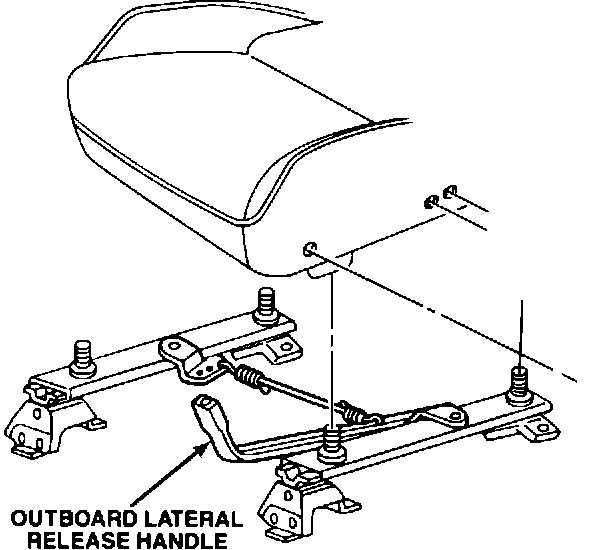

Figure 1:

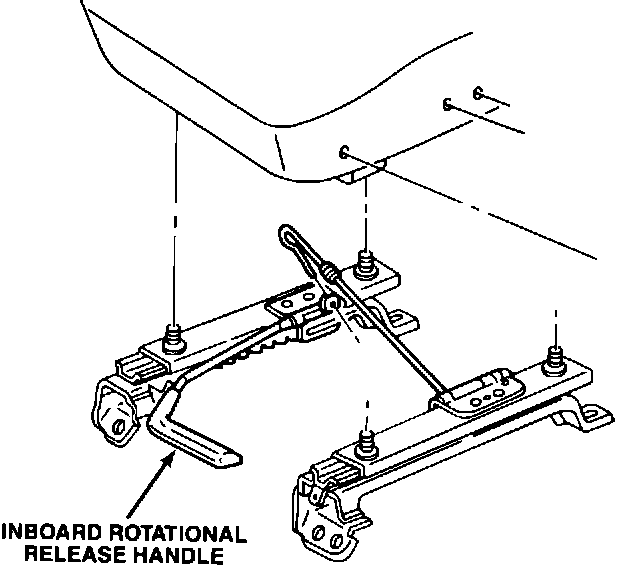

Figure 2:

MODELS:

1991 (AP) SUNDANCE/SHADOW/SHADOW CONVERTIBLE


DISCUSSION:

Two different types of front seat manual seat adjusters have been used in the listed models. The first type has a "rotational" release mechanism and was used in production from MDH 07-23-XX through 08-12-XX. The second type has a "lateral" release mechanism and entered production on MDH 08-13-XX. When ordering replacement parts, the seat style can be determined by the release mechanism design. The two types of adjusting mechanisms are shown in Figure 1 and 2.
