Sunroof / Moonroof: Service and Repair

Sun Roof:

1. Remove head lining as necessary.

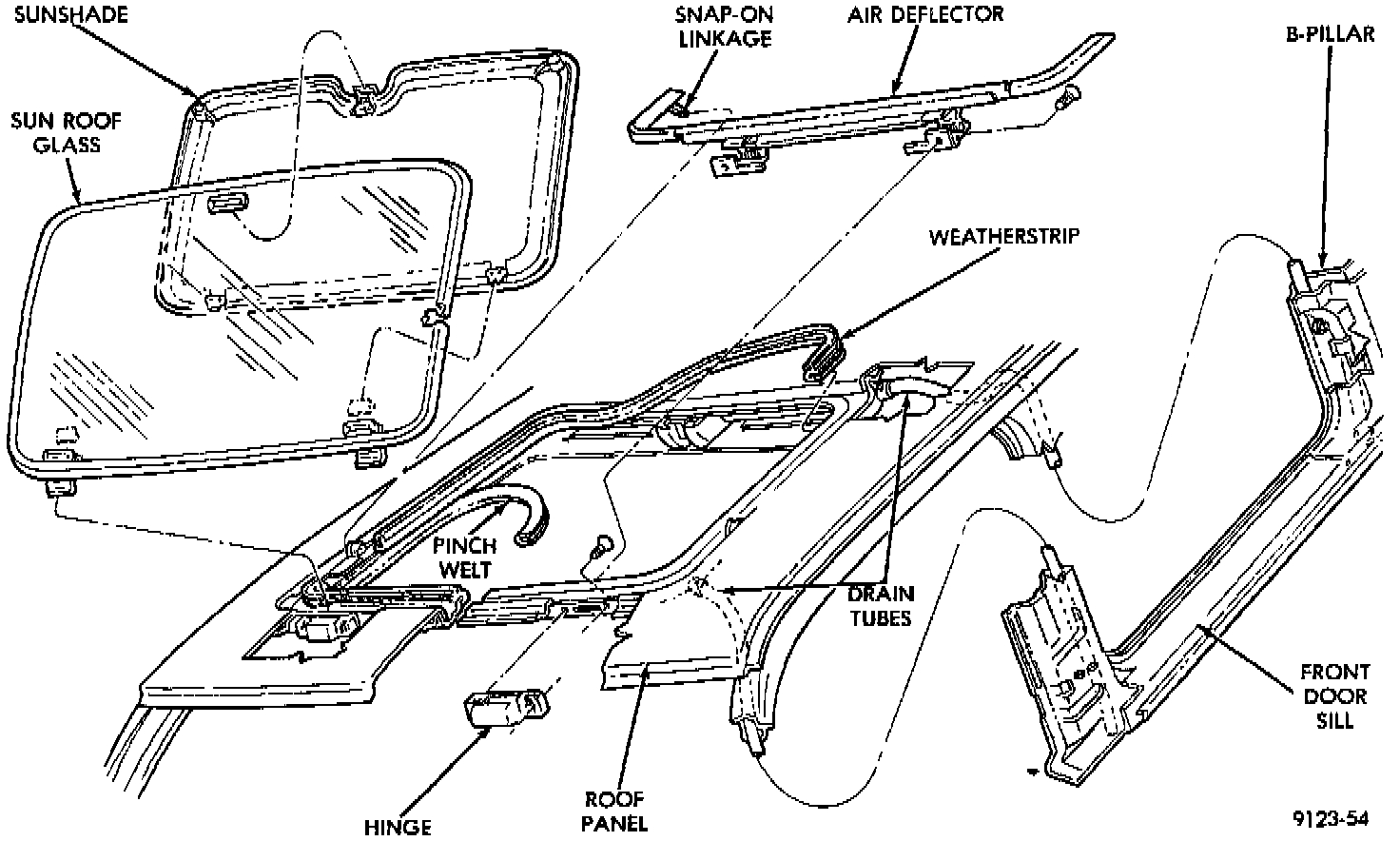

2. Remove A-pillar or B-pillar trim covers as necessary.
3. Remove cowl panel and sill plate trim as necessary.
4. Disconnect effected drain tube from nipple at sun roof opening.
5. Pull drain tube upward to remove from pillar involved.
6. Reverse the preceding operation for installation. Route the tube to avoid kinks or puncture from sharp edges.
