7 Checking R31 & R33 Wires For Open Circuits

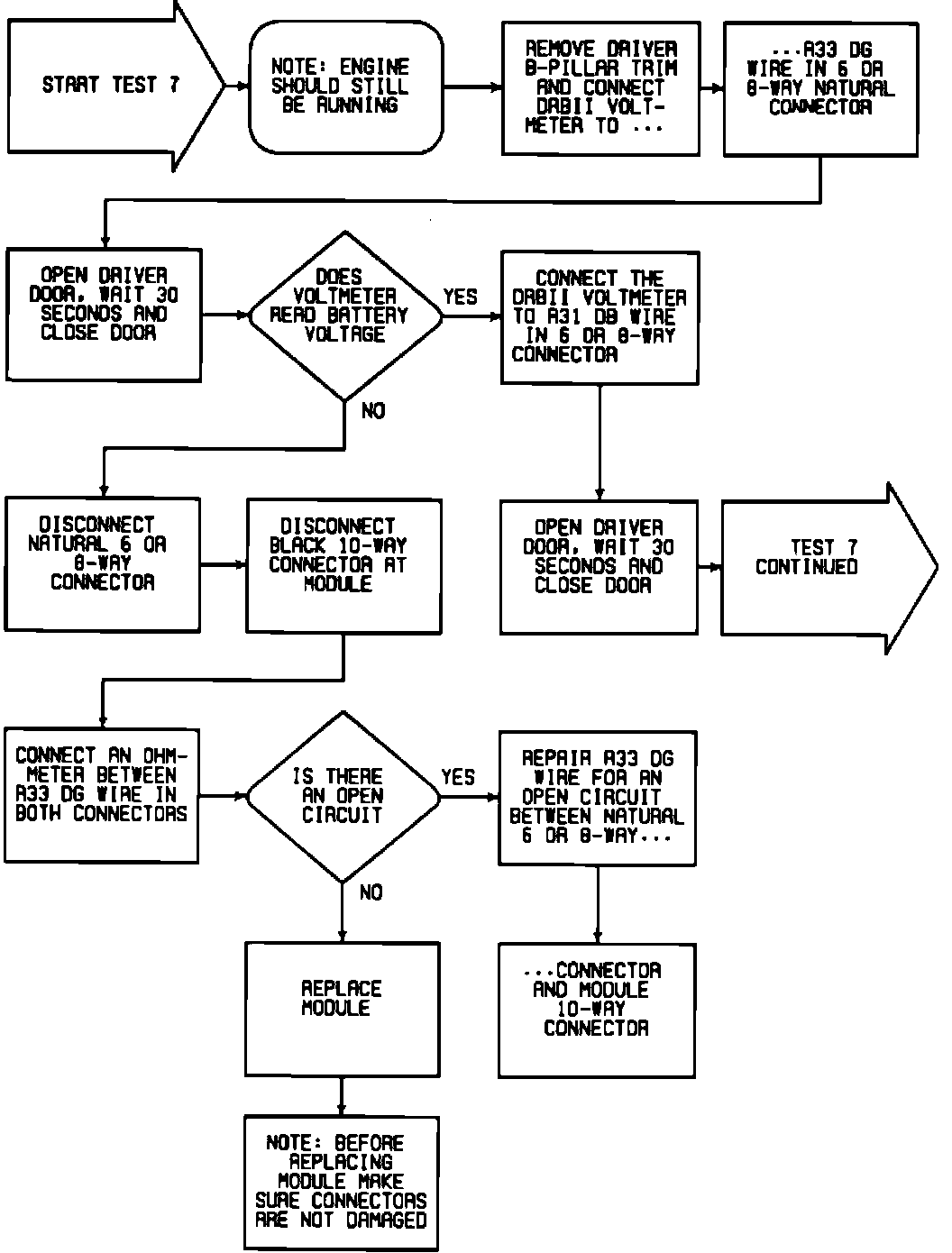

Fig. 109 Test 7 (Checking R31 & R33 Wires For Open Circuits, Part 1 Of 2):



Fig. 109 Test 7 (Checking R31 & R33 Wires For Open Circuits, Part 2 Of 2):
