2 Checking Rx & Tx Wires For Open Circuit

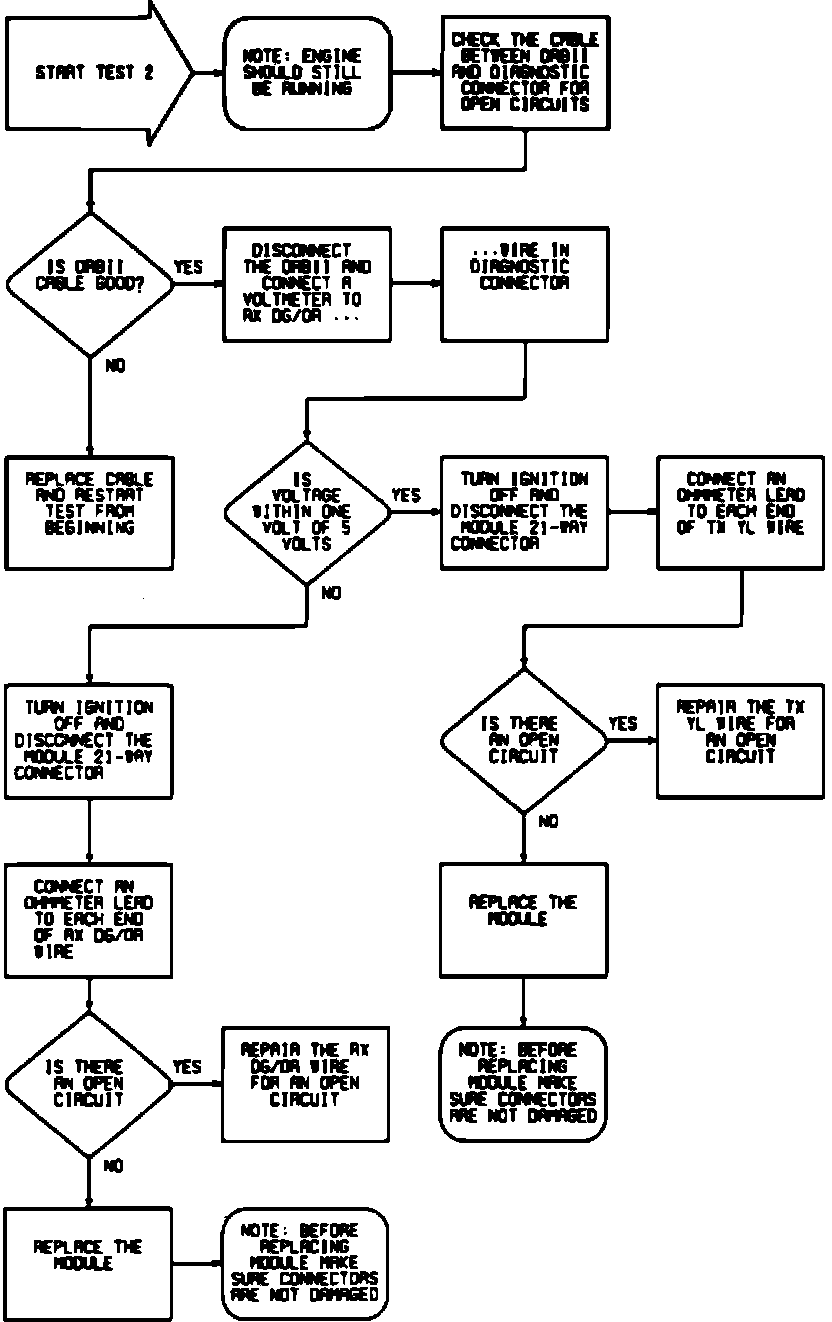

Fig. 104 Test 2 (Checking RX & TX Wires For Open Circuit):
