Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Seat Belt Systems >> 18 Checking G5 Wire For Open Circuit

18 Checking G5 Wire For Open Circuit

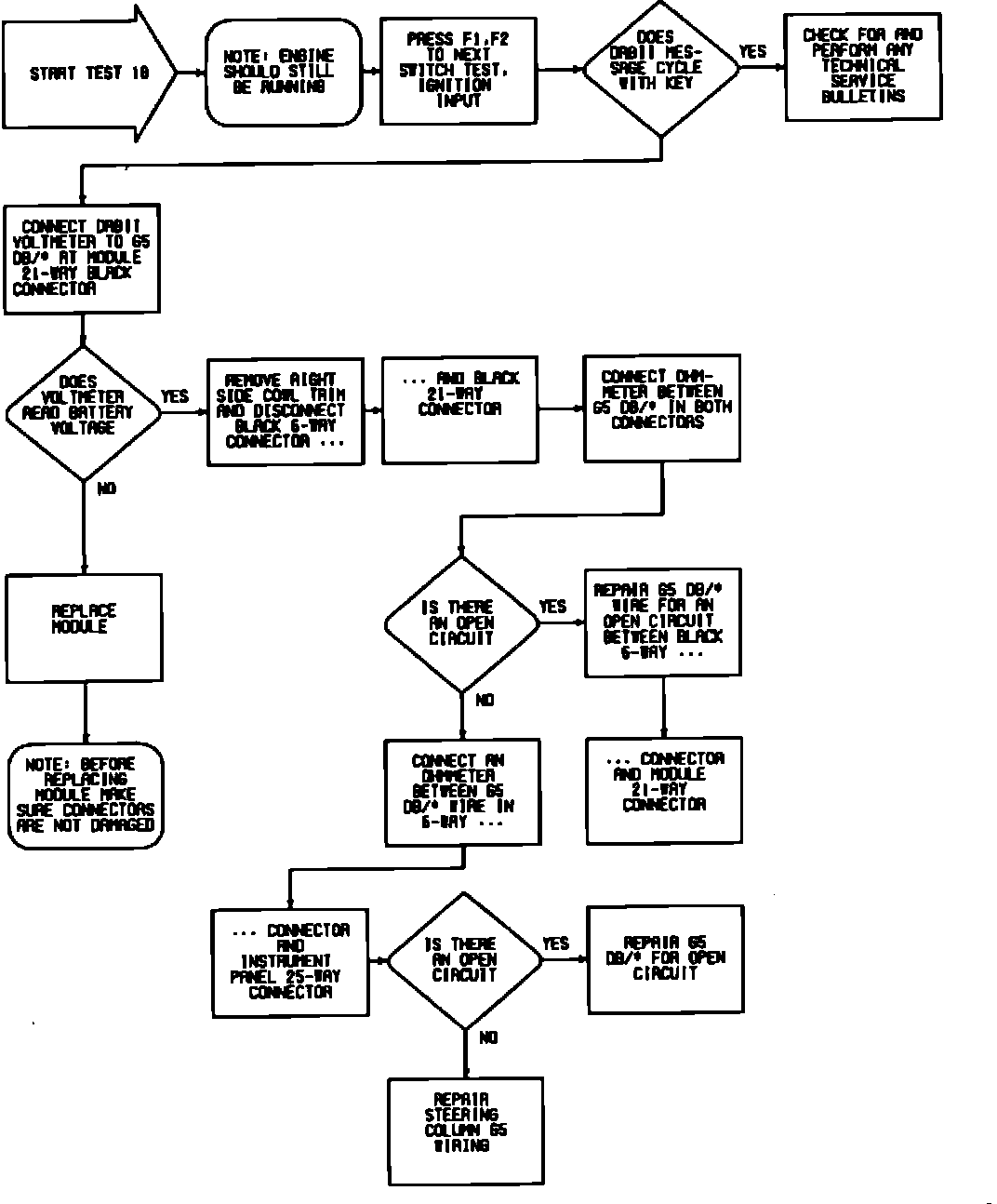

Fig. 120 Test 18 (Checking G5 Wire For Open Circuit):
