16 Checking R20 & M1 Wires For Open Circuits

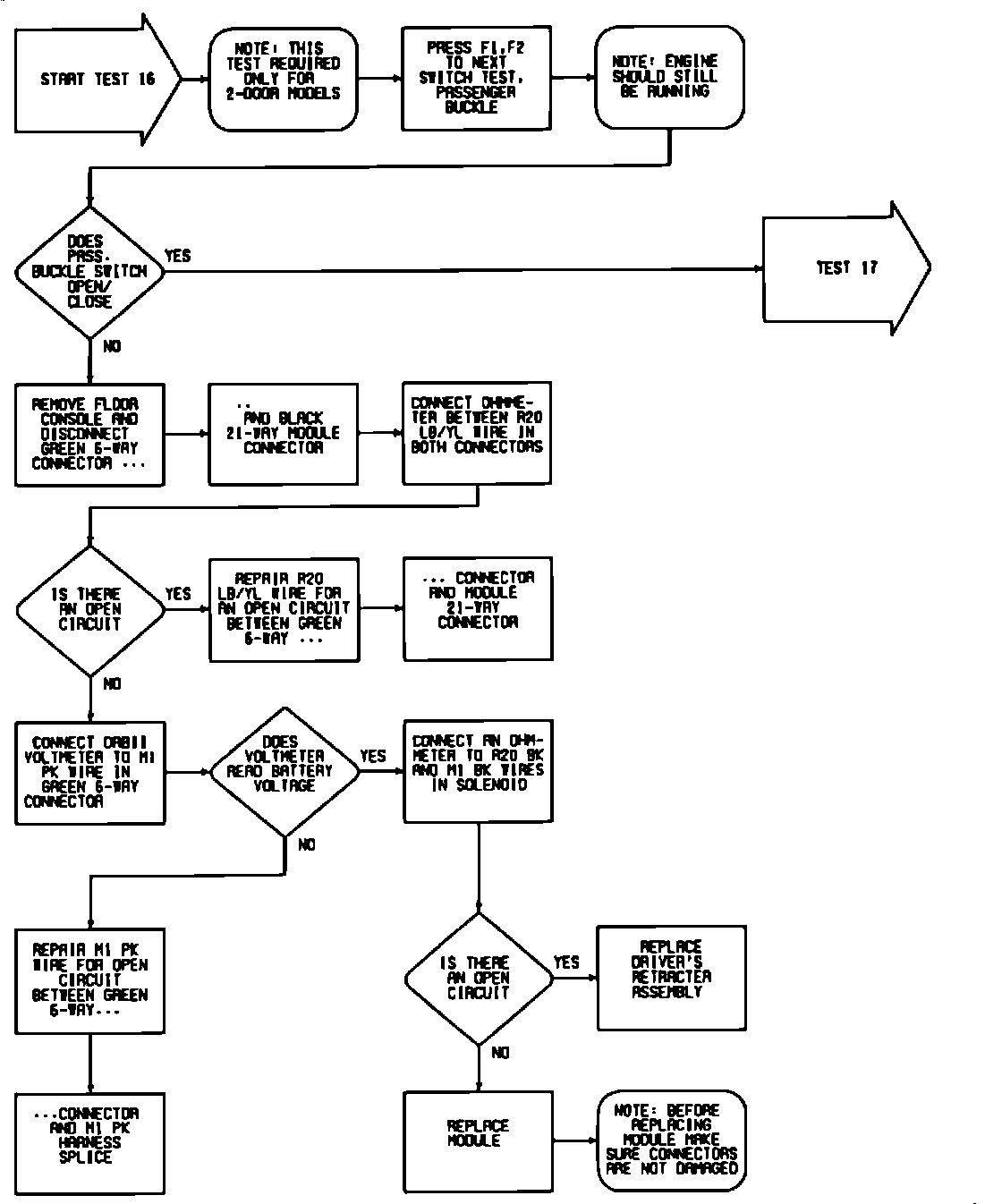

Fig. 118 Test 16 (Checking R20 & M1 Wires For Open Circuits):
