15 Checking R19 & M1 Wires For Open Circuits

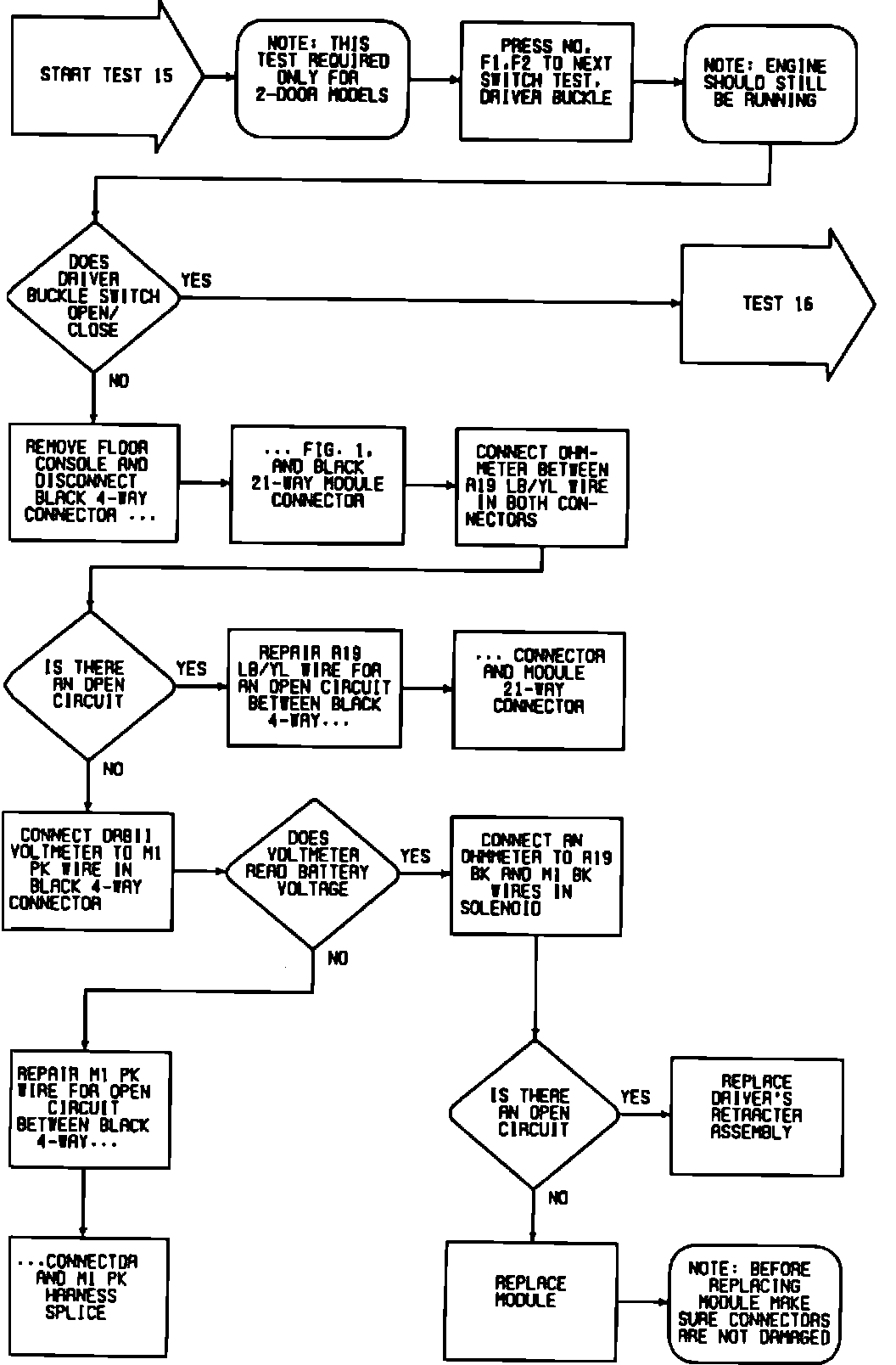

Fig. 117 Test 15 (Checking R19 & M1 Wires For Open Circuits):
