14 Checking R31 & R33 Wires For Open Circuits
14 Checking R31 & R33 Wires For Open Circuits

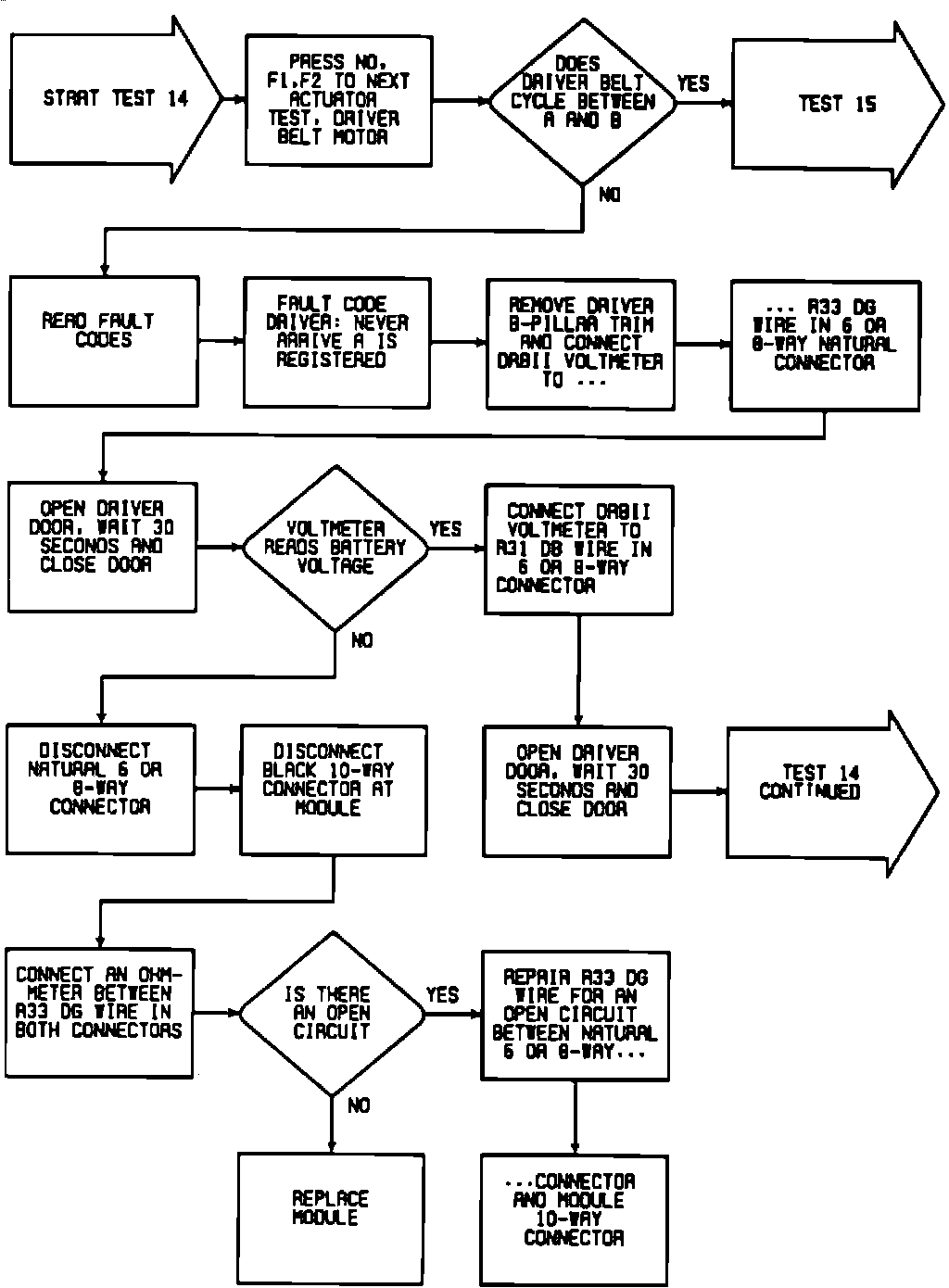

Fig. 116 Test 14 (Checking R31 & R33 Wires For Open Circuits, Part 1 Of 2):
Fig. 116 Test 14 (Checking R31 & R33 Wires For Open Circuits, Part 2 Of 2):
