12 Checking M16 Wire For Open Circuit

Fig. 114 Test 12 (Checking M16 Wire For Open Circuit, Part 1 Of 2):

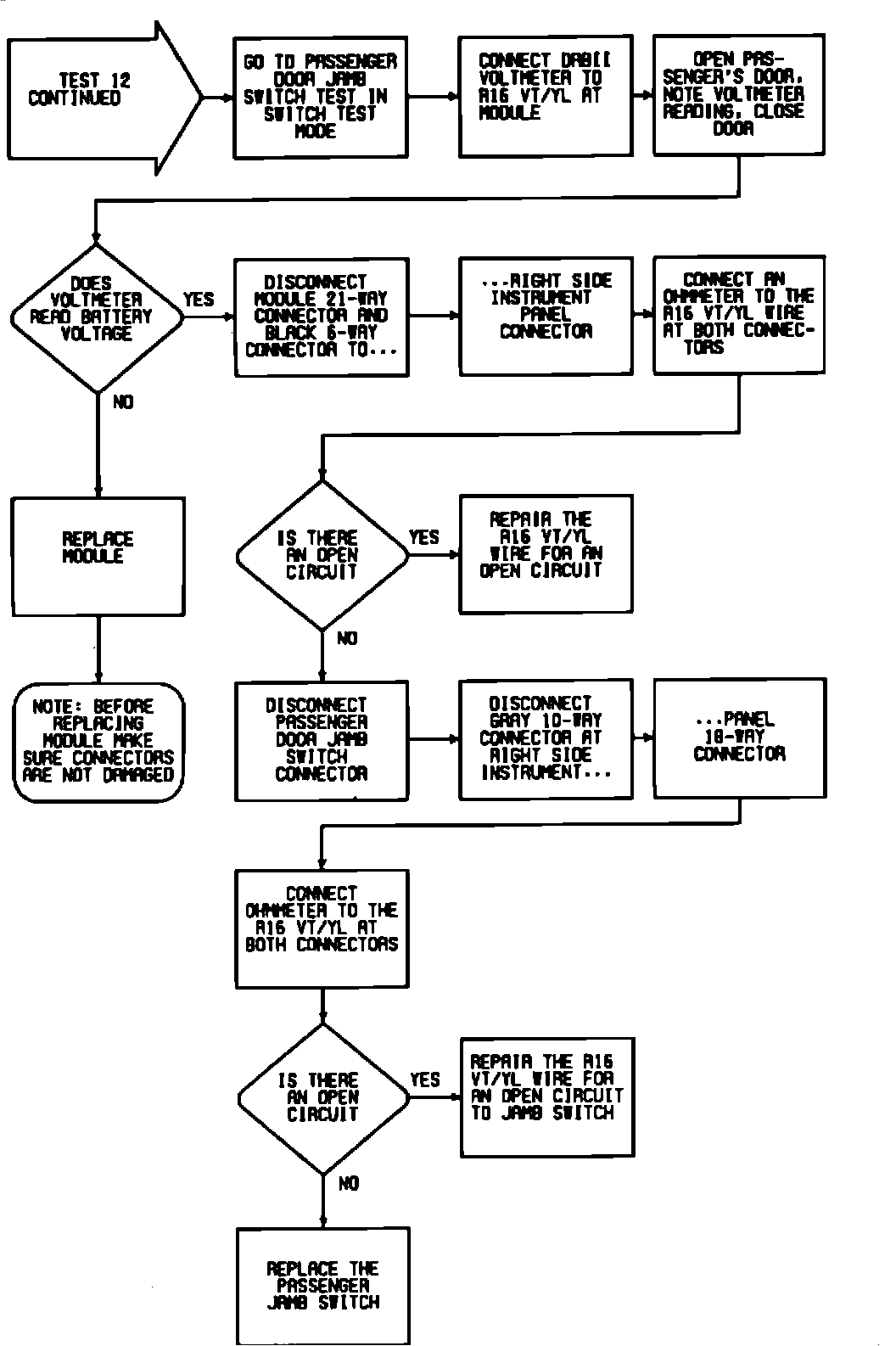

Fig. 114 Test 12 (Checking M16 Wire For Open Circuit, Part 2 Of 2):
