Shadow Convertible L4-153 2.5L SOHC Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>
DR-8A Repairing "O2 Sensor Signal Above 12 Volts" Fault
>>
Part 1 of 2
Part 1 of 2

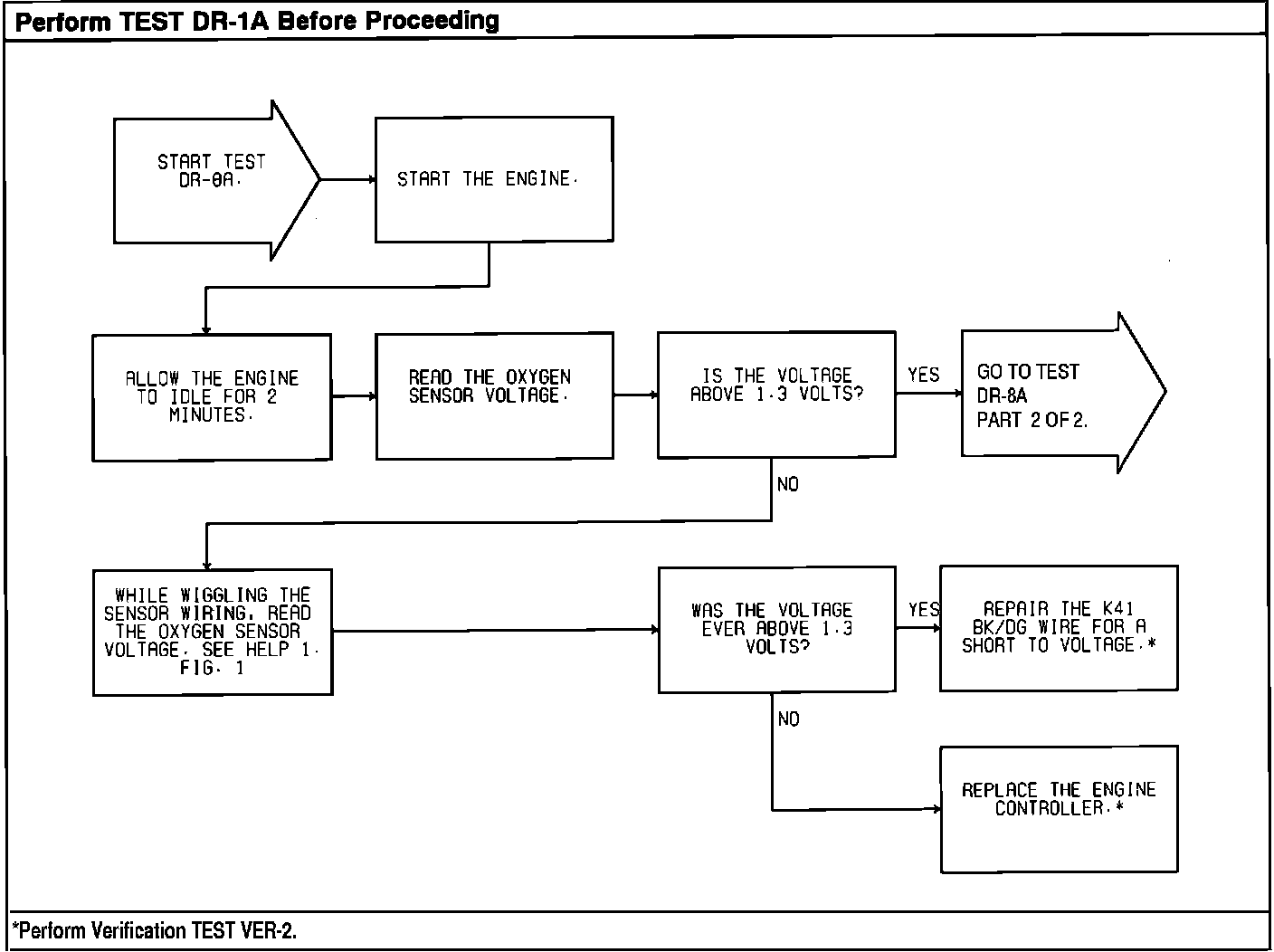

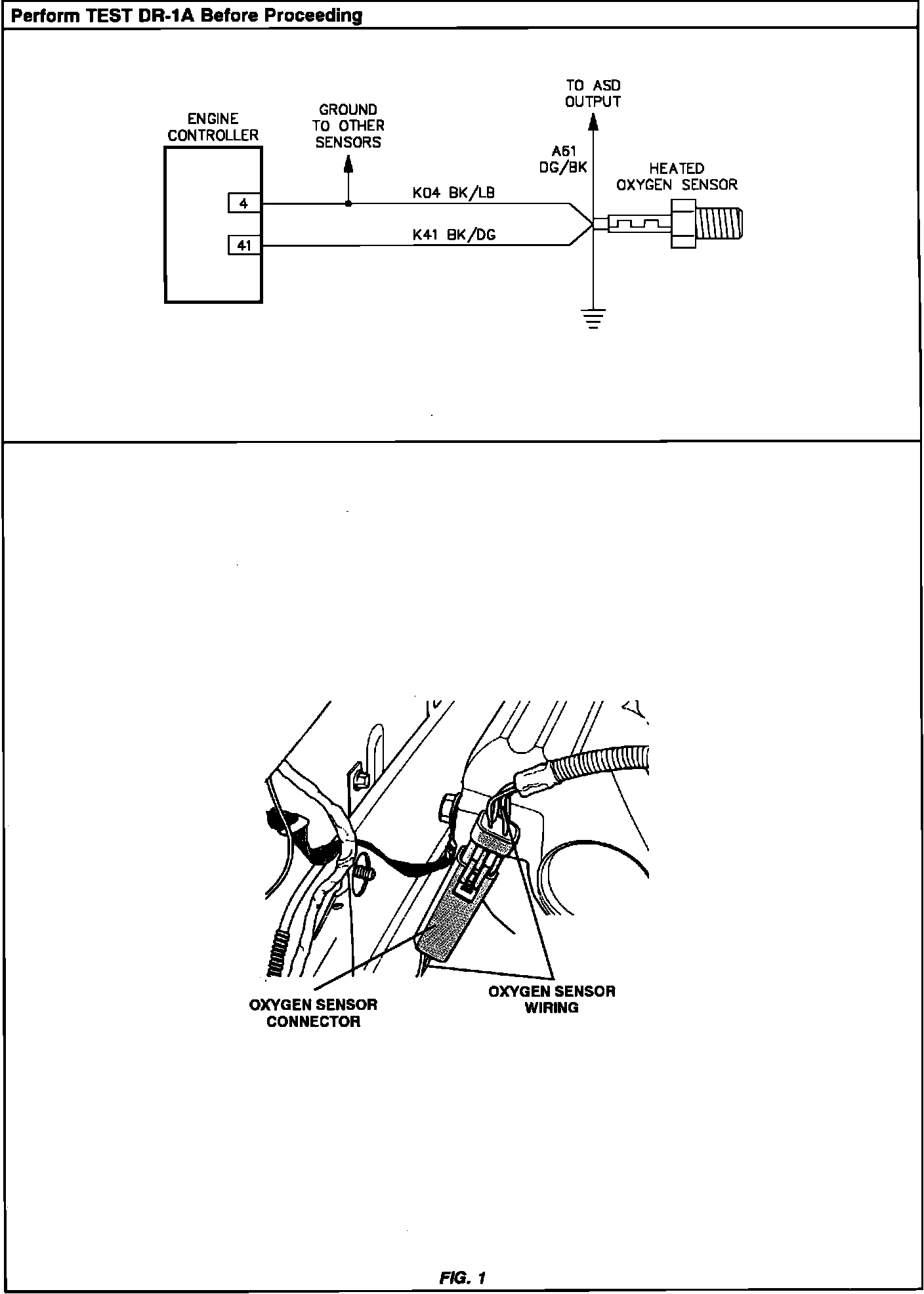

Test DR-8A - "Oxygen Sensor Shorted To Voltage":
Test DR-8A - "Oxygen Sensor Shorted To Voltage":
