Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-7A Repairing "O2 Sensor Signal Stays at Center" Fault >> Part 2 of 2

Part 2 of 2

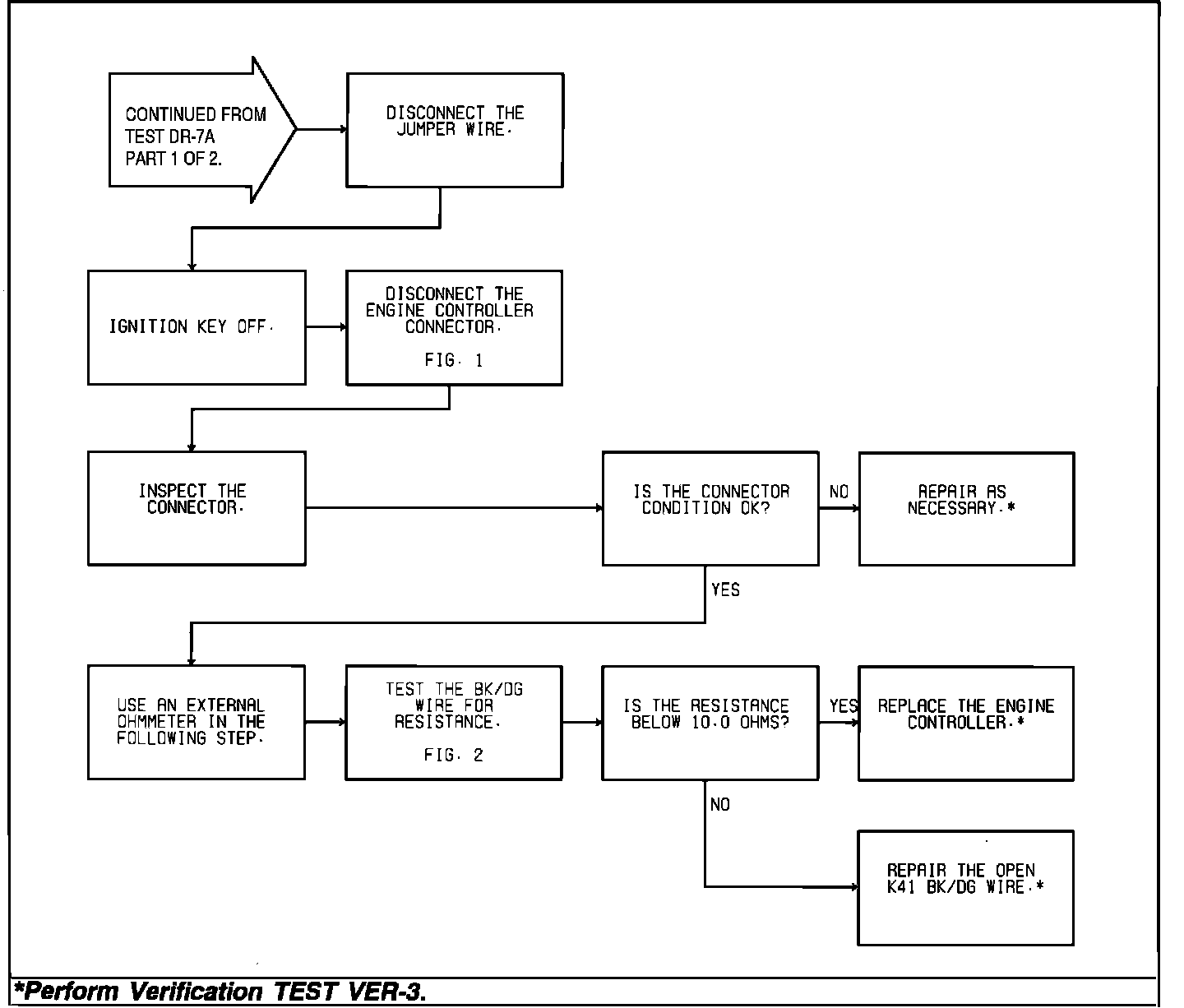

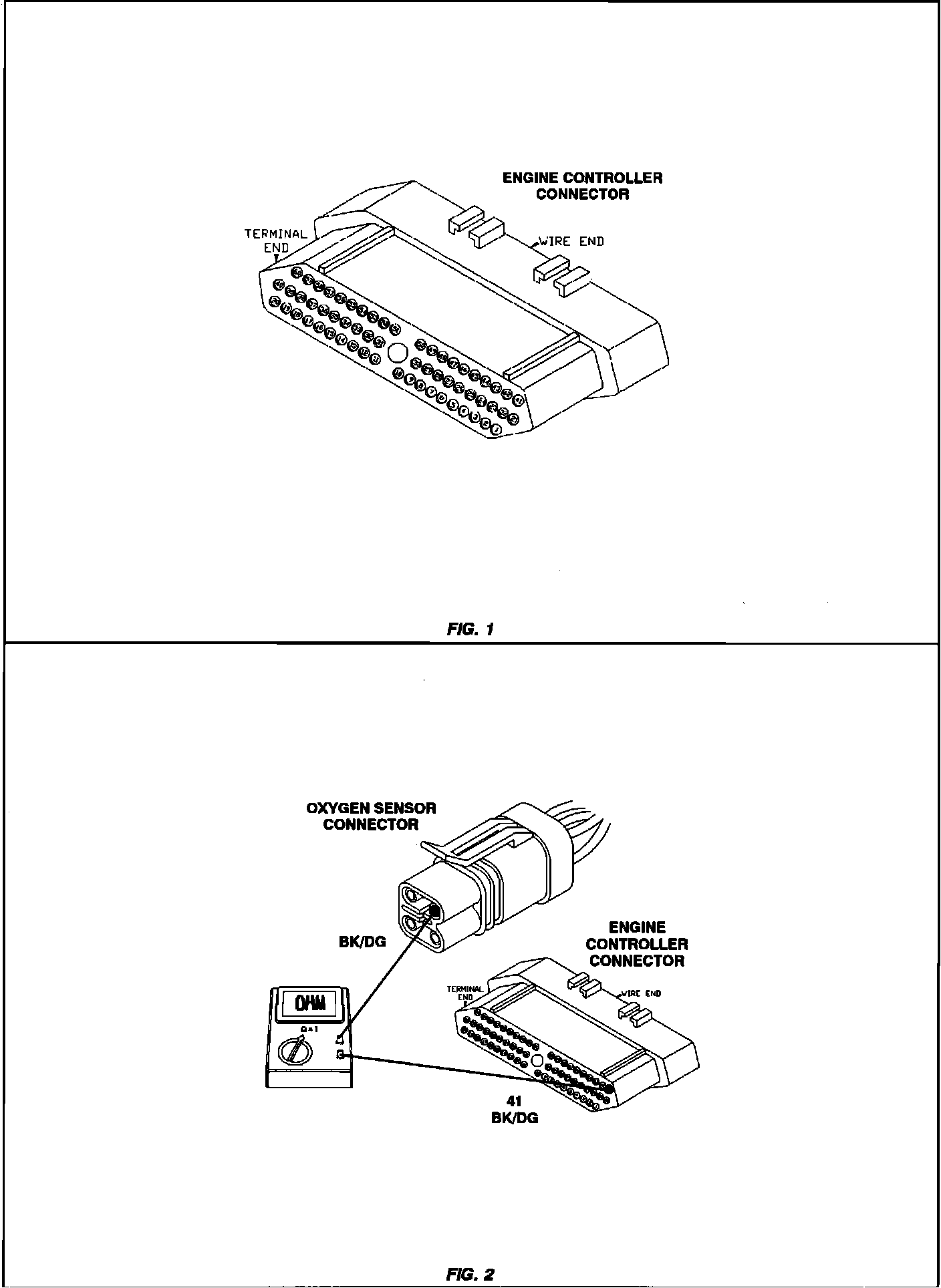

Test DR-7A - "Oxygen Sensor Signal Stays At Center":
