DR-44A Intermittent Test For Injector Circuits

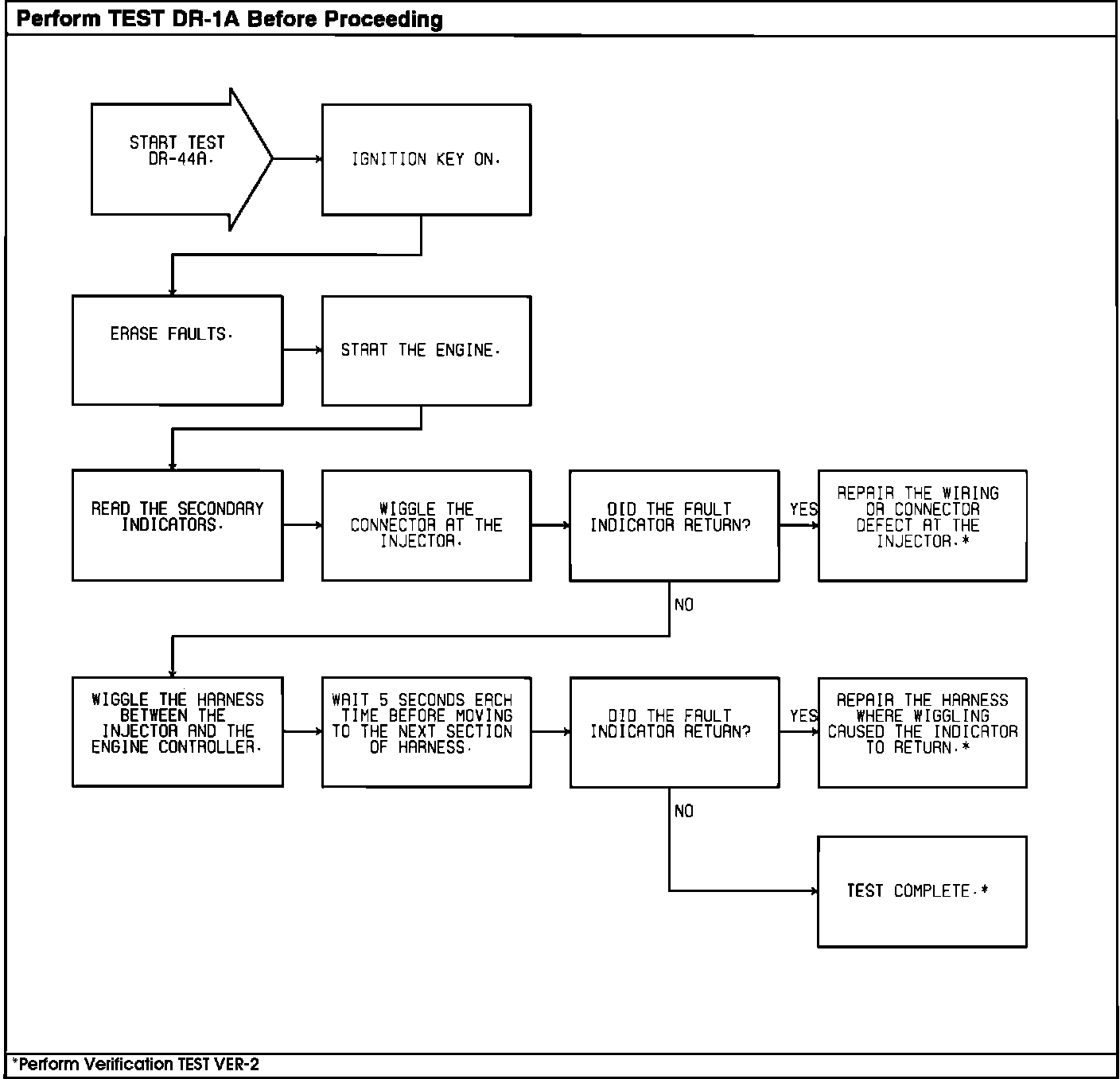

Test DR-44A - Intermittent Test For Injector Circuits:
