DR-3A Repairing "No MAP Change From Start to Run" Fault
DR-3A Repairing "No MAP Change From Start to Run" Fault

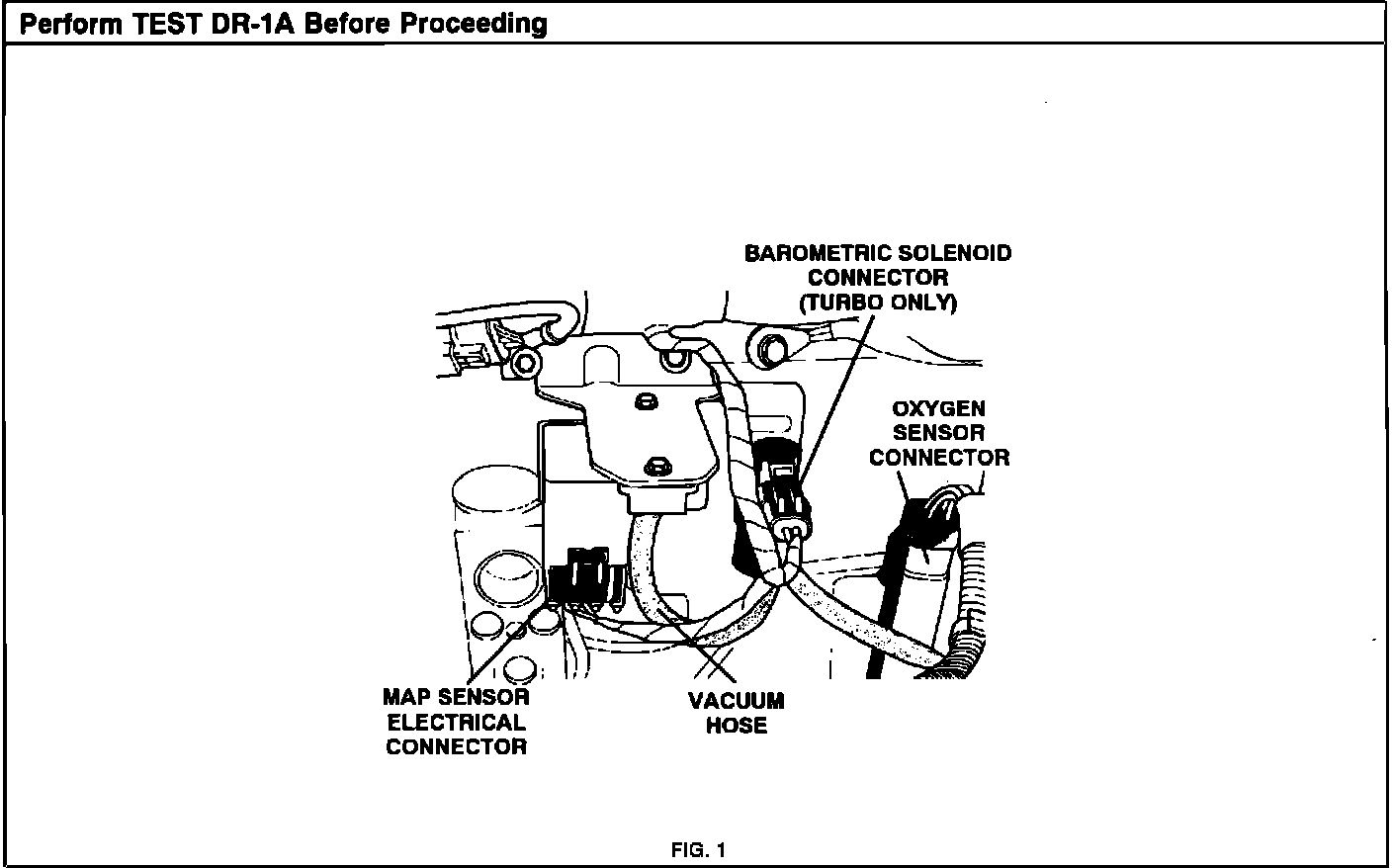

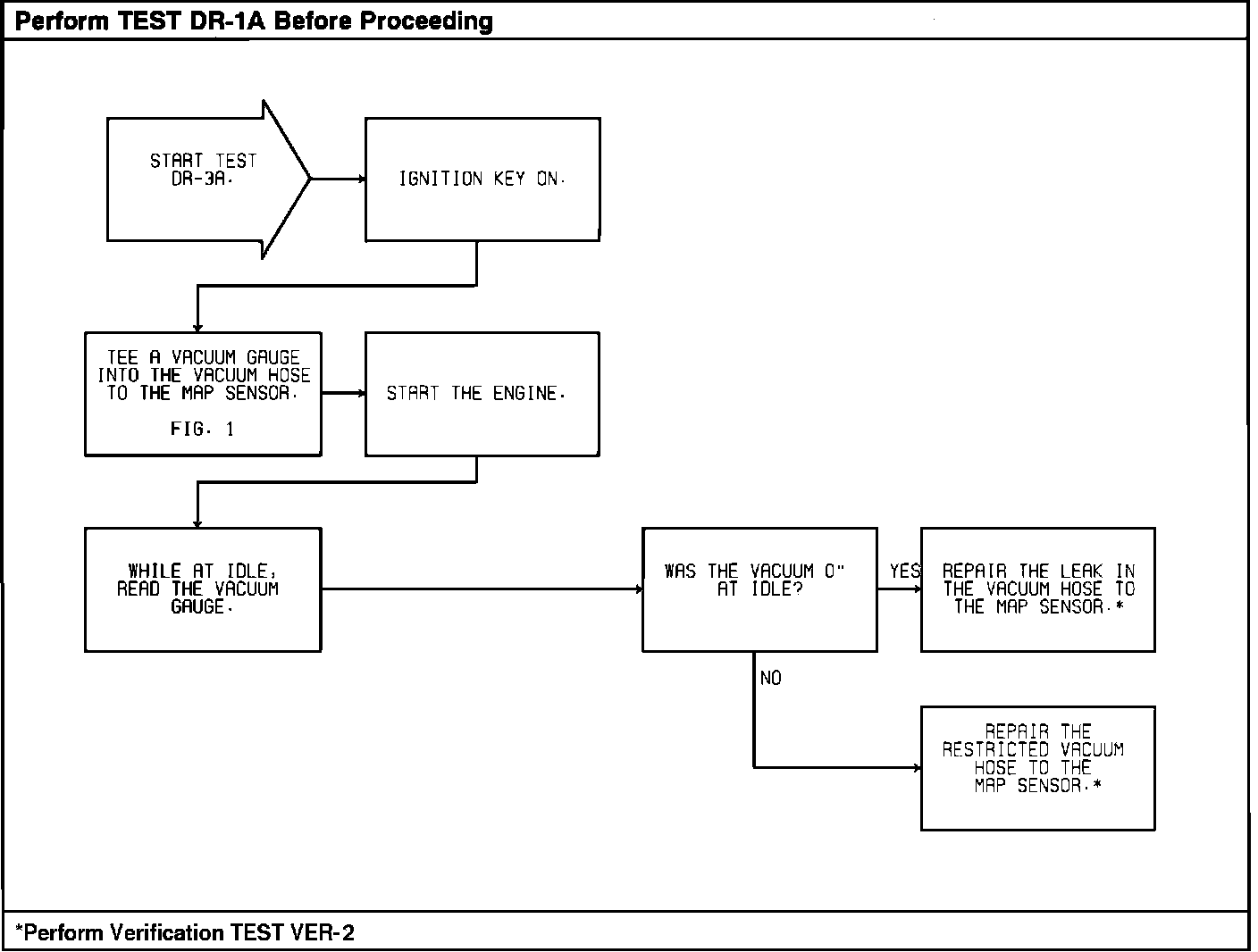

Test DR-3A - "No Change In MAP From Start To Run":
Test DR-3A - "No Change In MAP From Start To Run":
