Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-38A Checking Engine Vacuum

DR-38A Checking Engine Vacuum

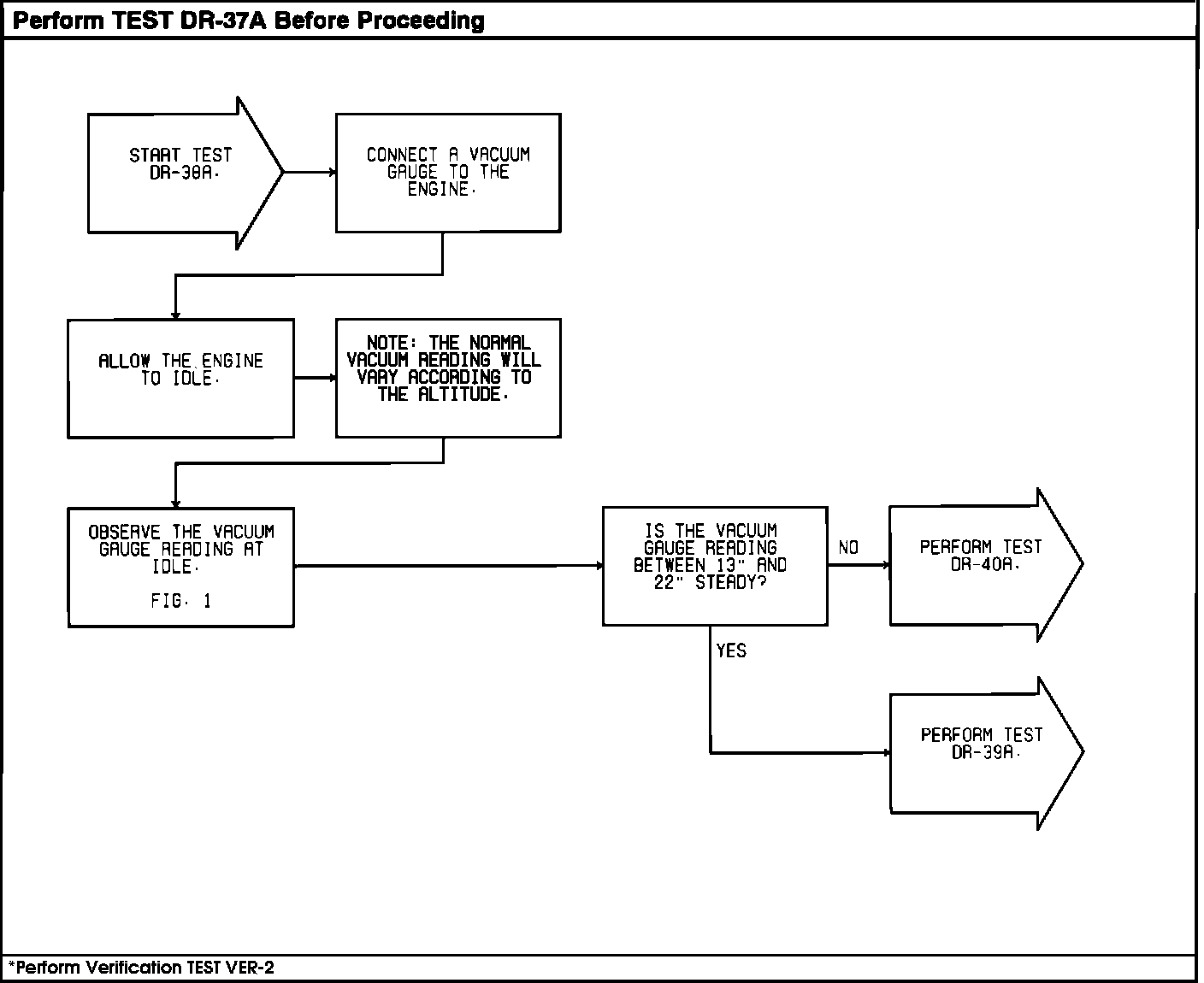

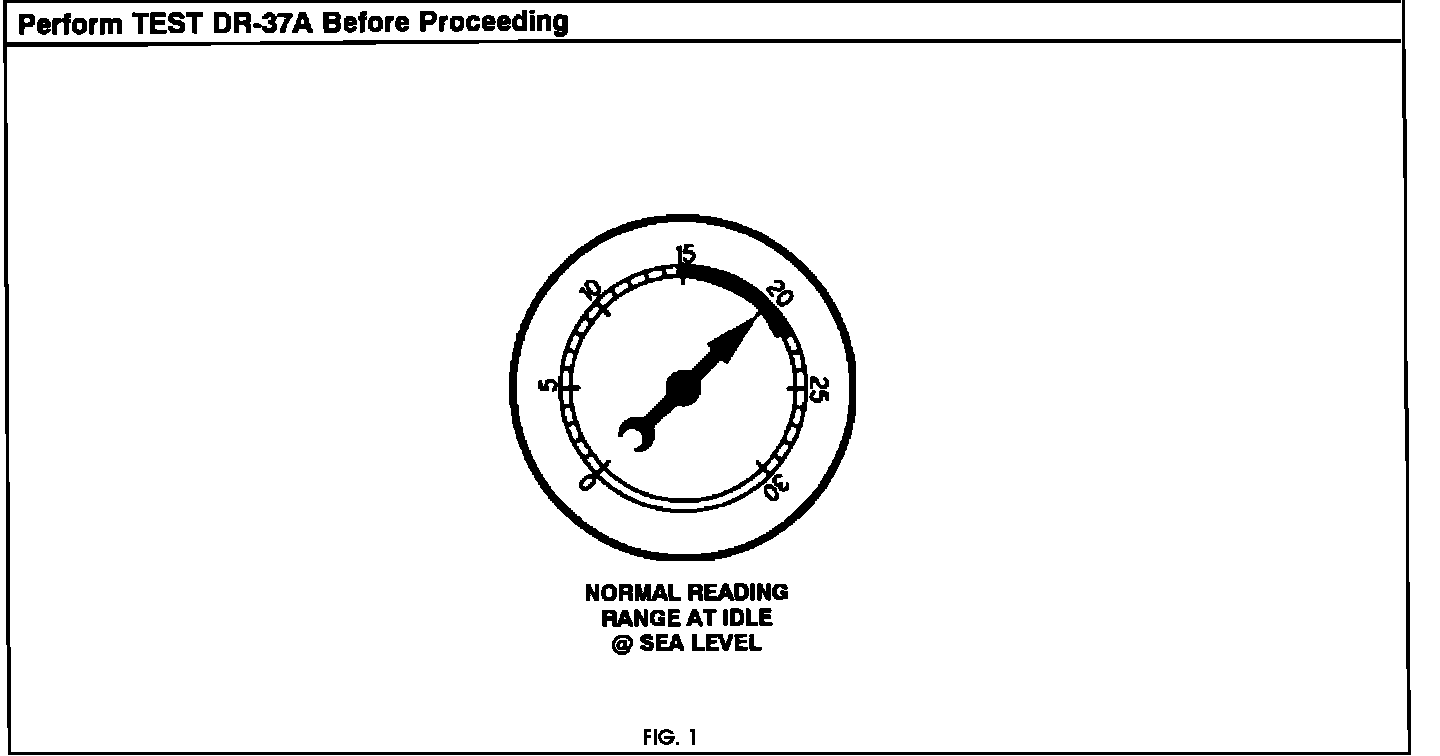

Test DR-38A - Checking Engine Vacuum:



Test DR-38A - Checking Engine Vacuum:
