DR-35D Checking Idle Speed Motor Operation

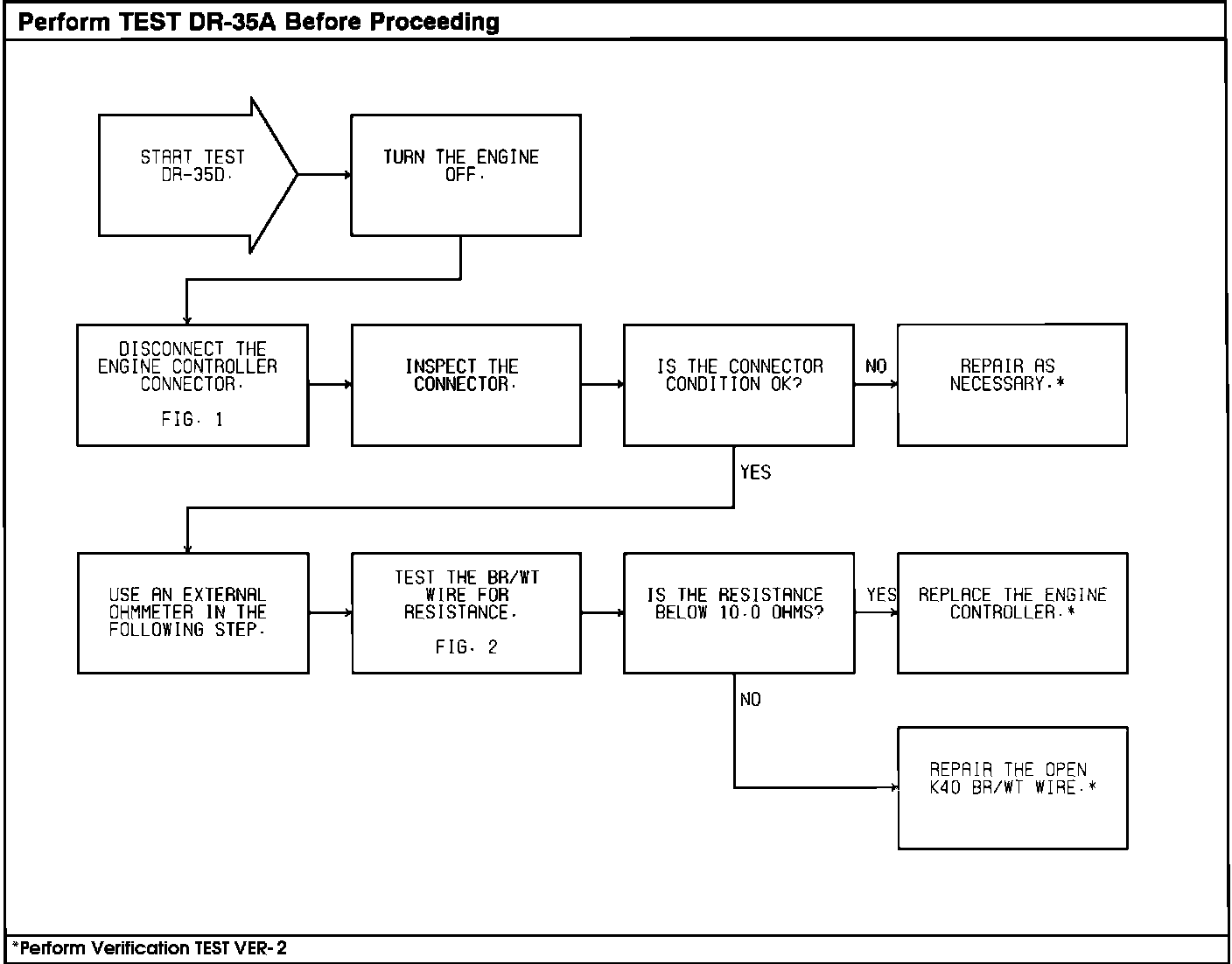

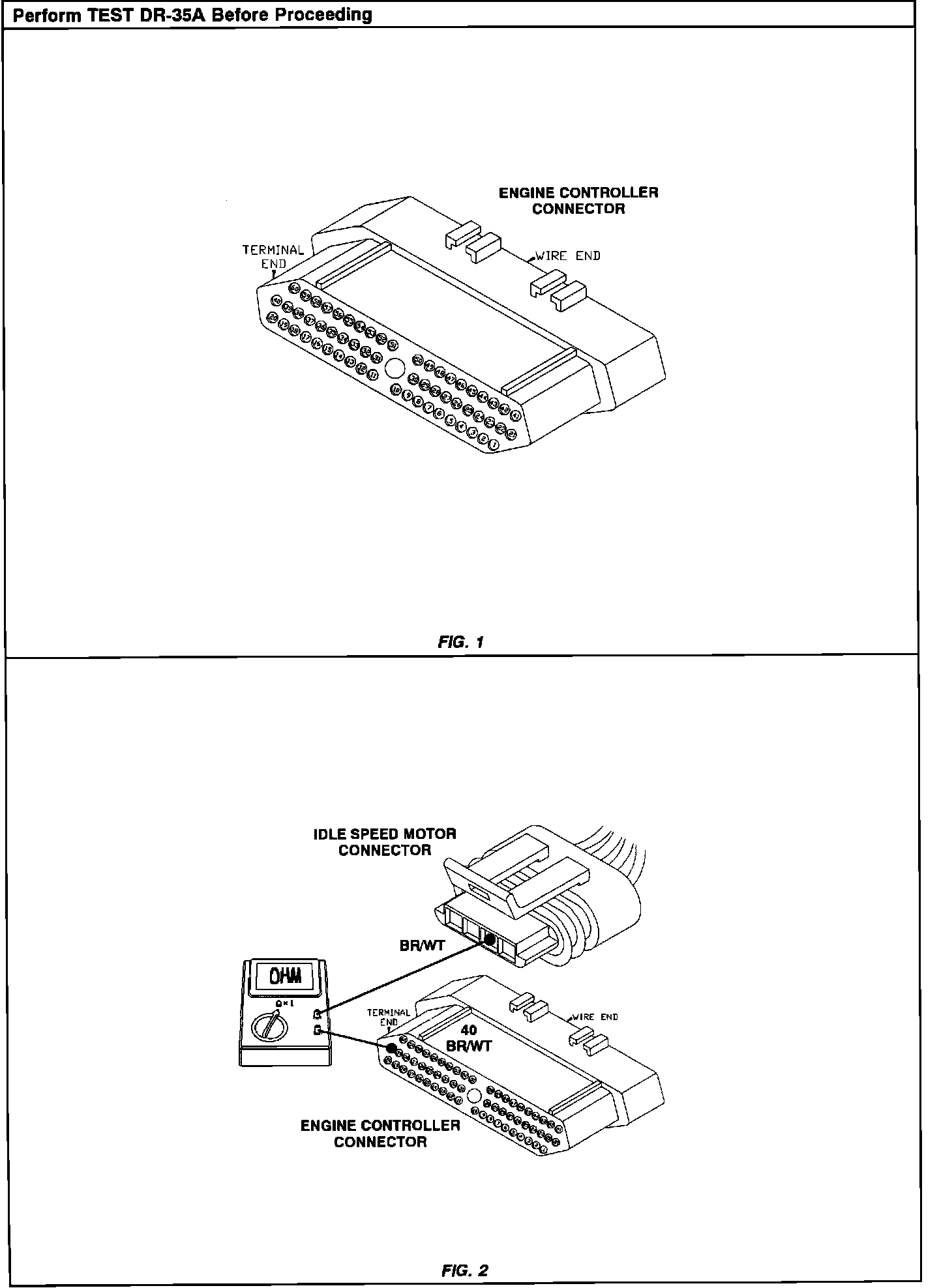

Test DR-35D - Checking Idle Speed Motor Operation:



Test DR-35D - Checking Idle Speed Motor Operation:
