Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-35C Checking Idle Speed Motor Operation

DR-35C Checking Idle Speed Motor Operation

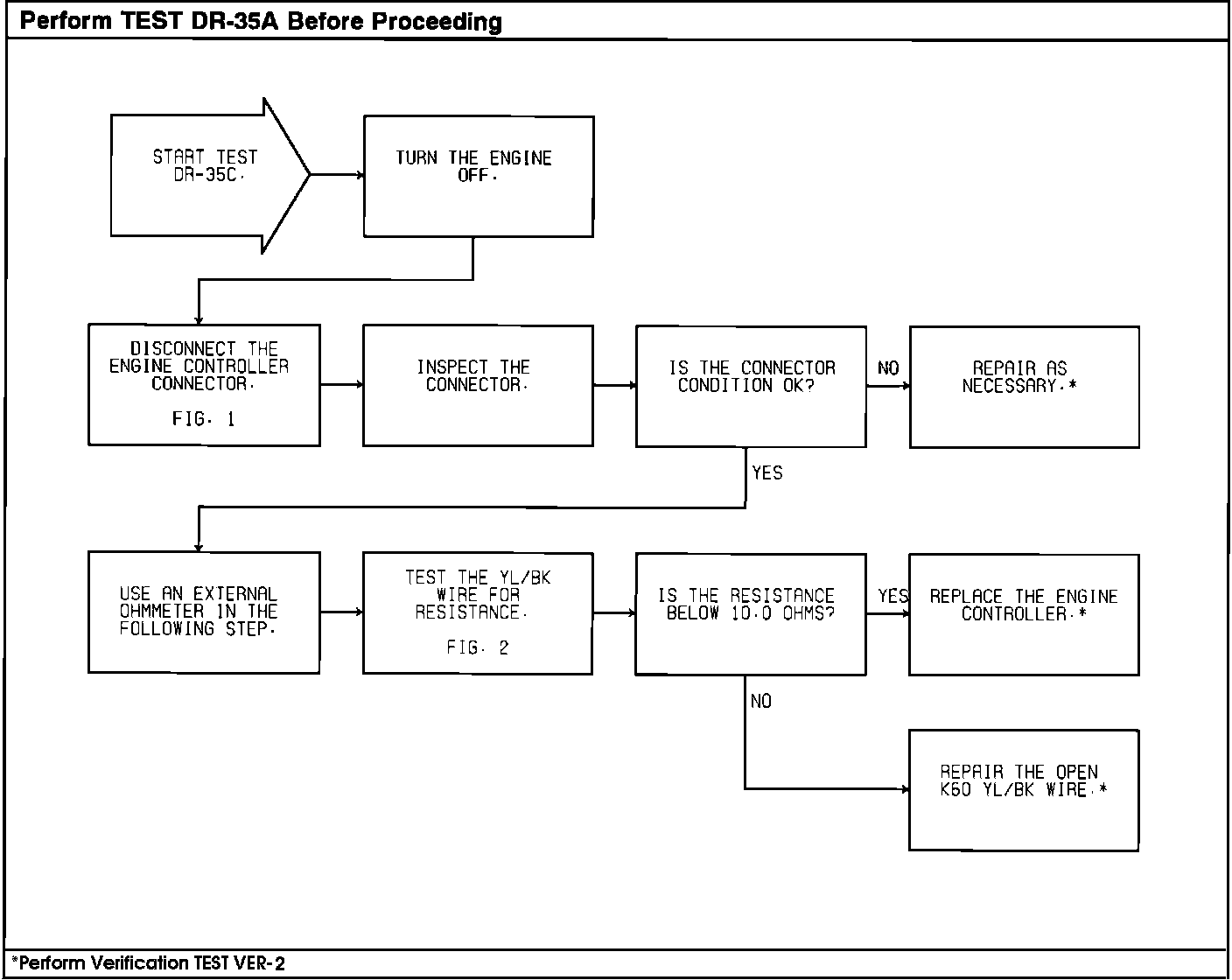

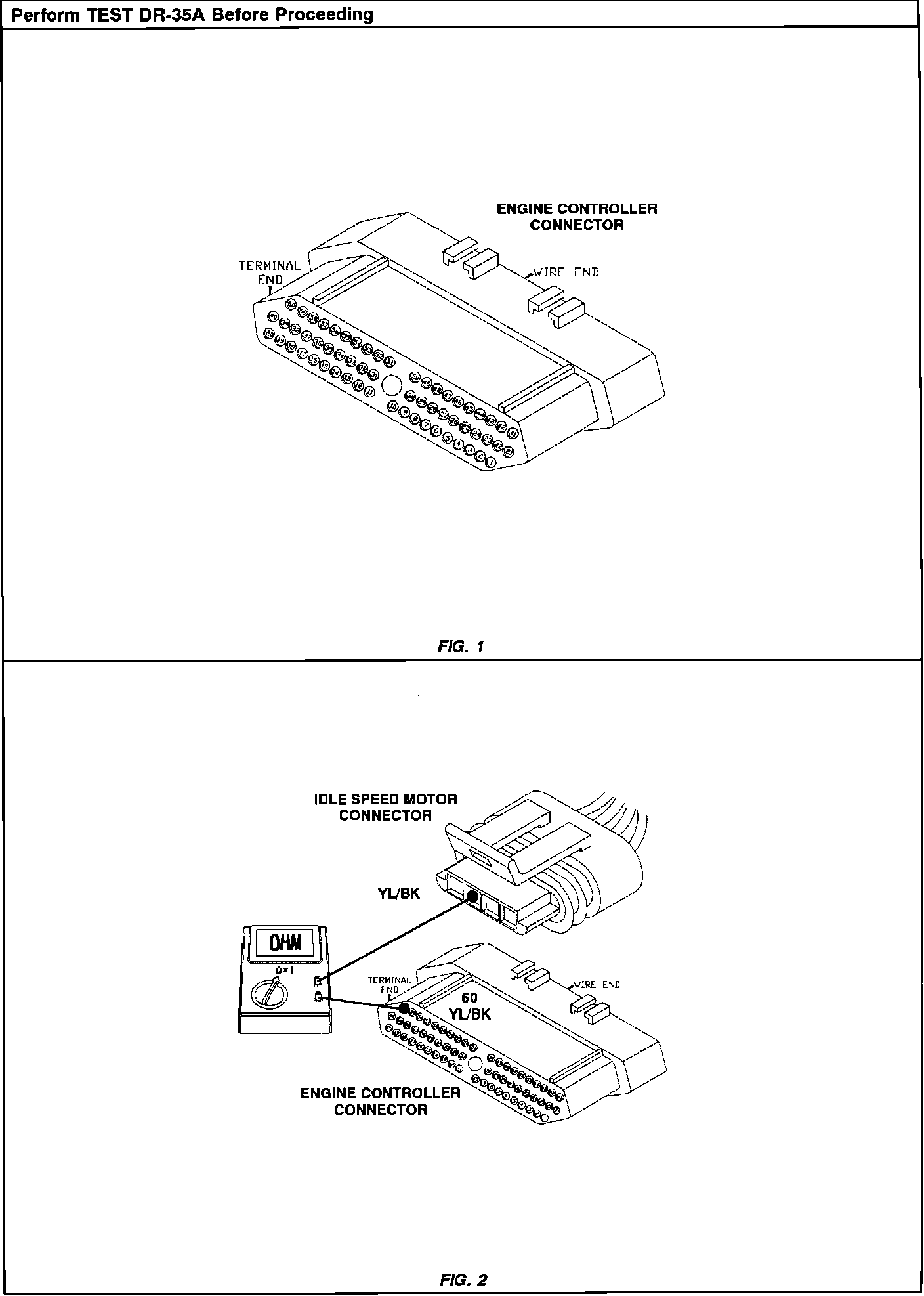

Test DR-35C - Checking Idle Speed Motor Operation:



Test DR-35C - Checking Idle Speed Motor Operation:
