Shadow Convertible L4-153 2.5L SOHC Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>
DR-34A Checking Oxygen Sensor Switching
DR-34A Checking Oxygen Sensor Switching

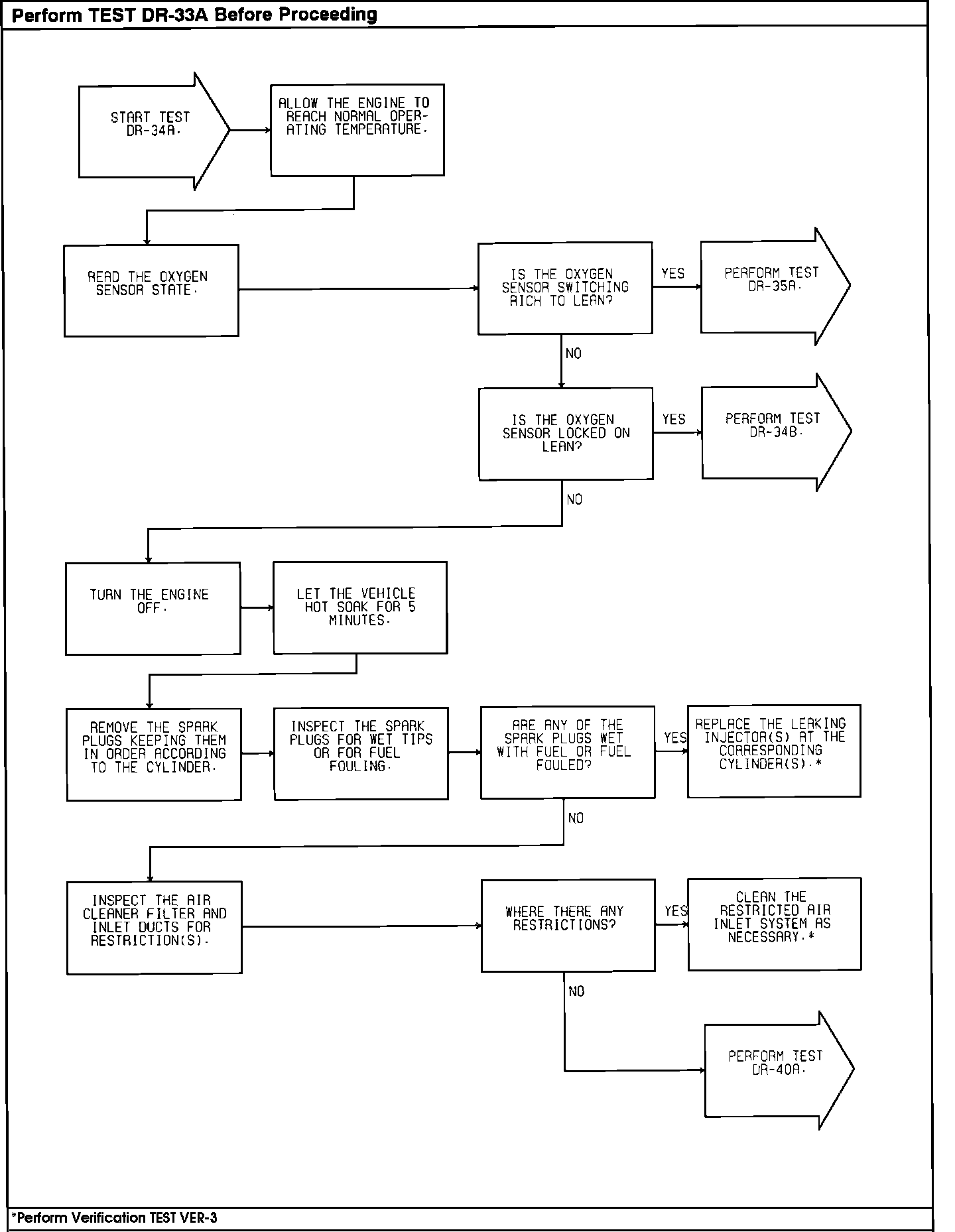

Test DR-34A - Checking Oxygen Sensor Switching:
