Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-33A Checking MAP Sensor Calibration >> Part 1 of 2

Part 1 of 2

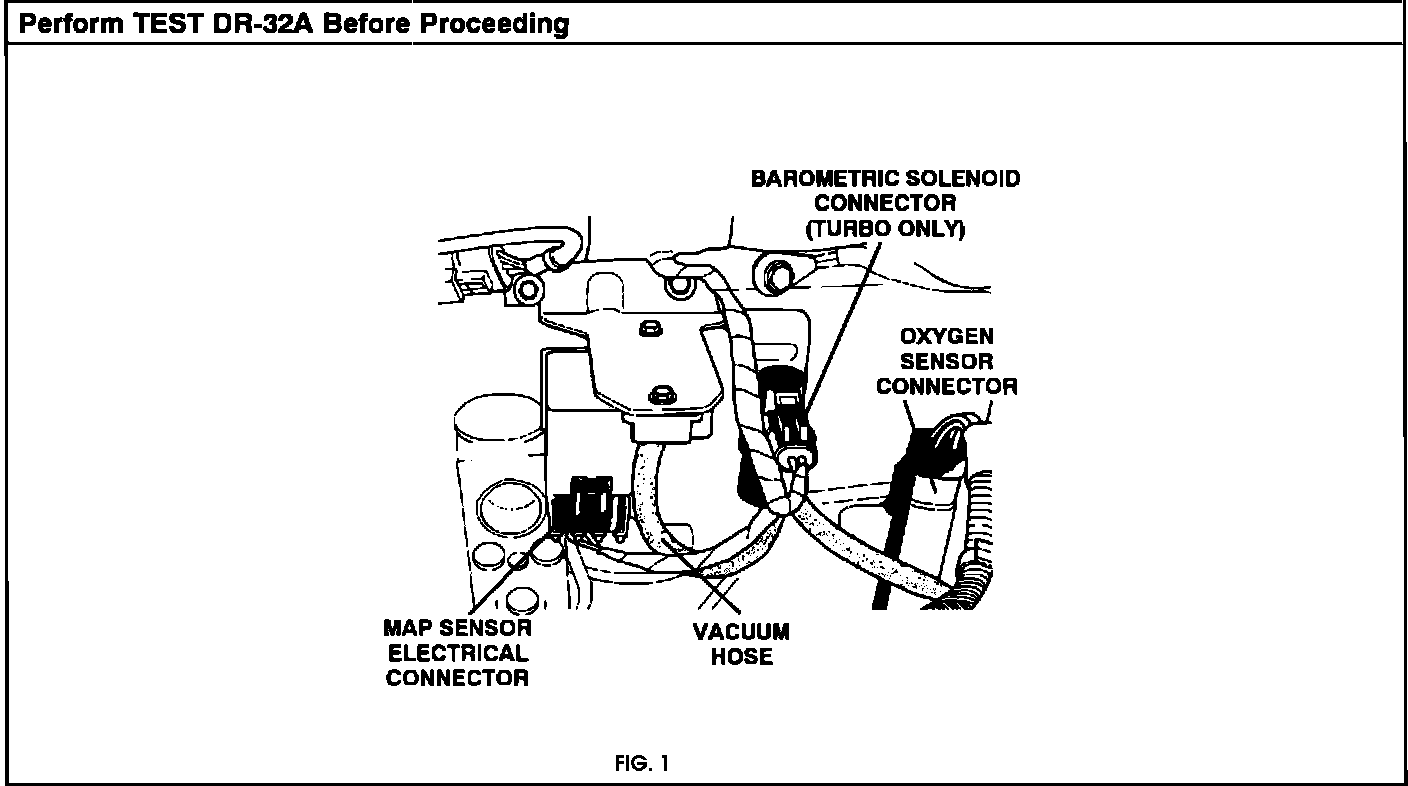

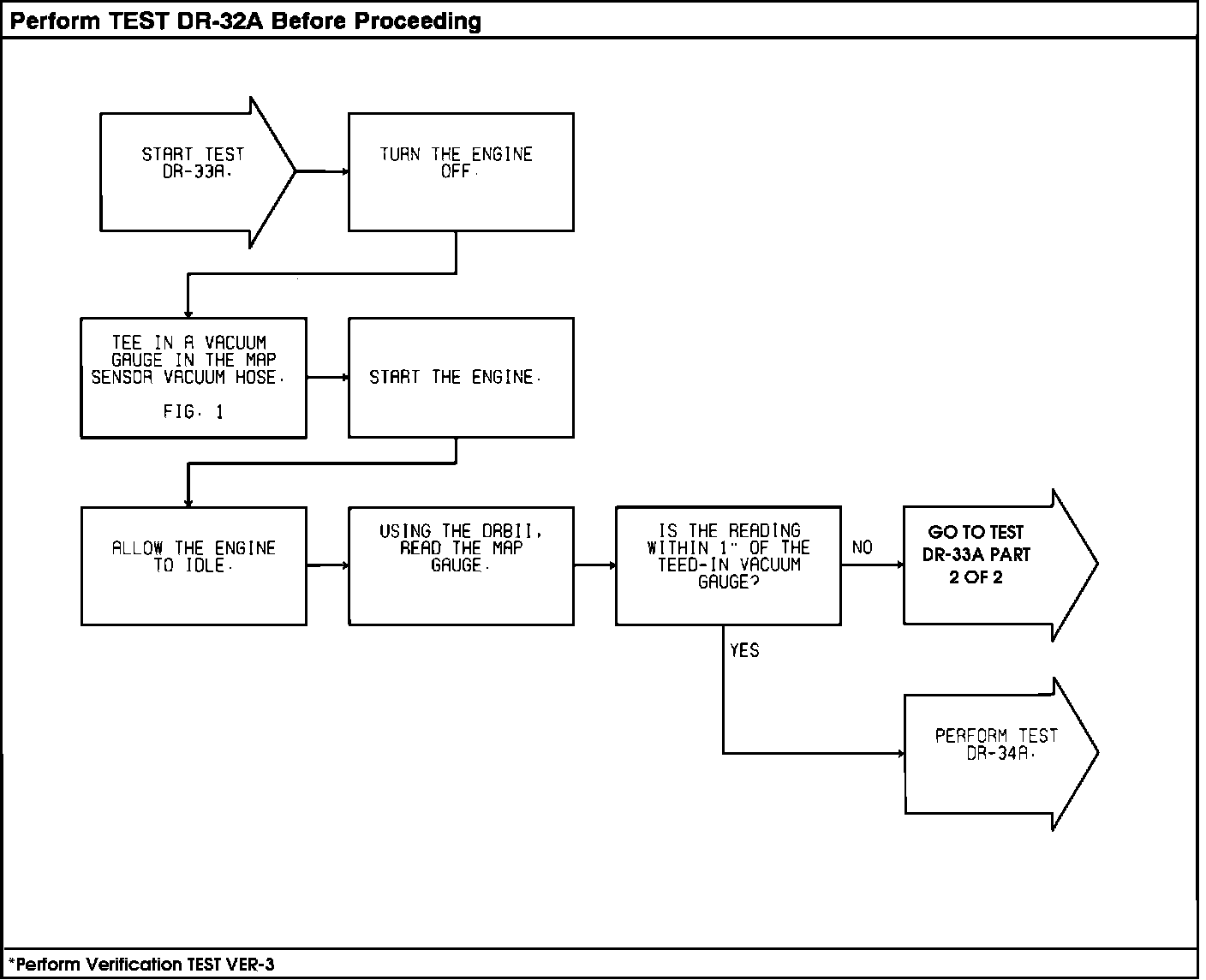

test DR-33A - Checking MAP Sensor Calibration:



test DR-33A - Checking MAP Sensor Calibration:
