A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>
DR-2A "Slow Change In Idle MAP Signal"
DR-2A "Slow Change In Idle MAP Signal"

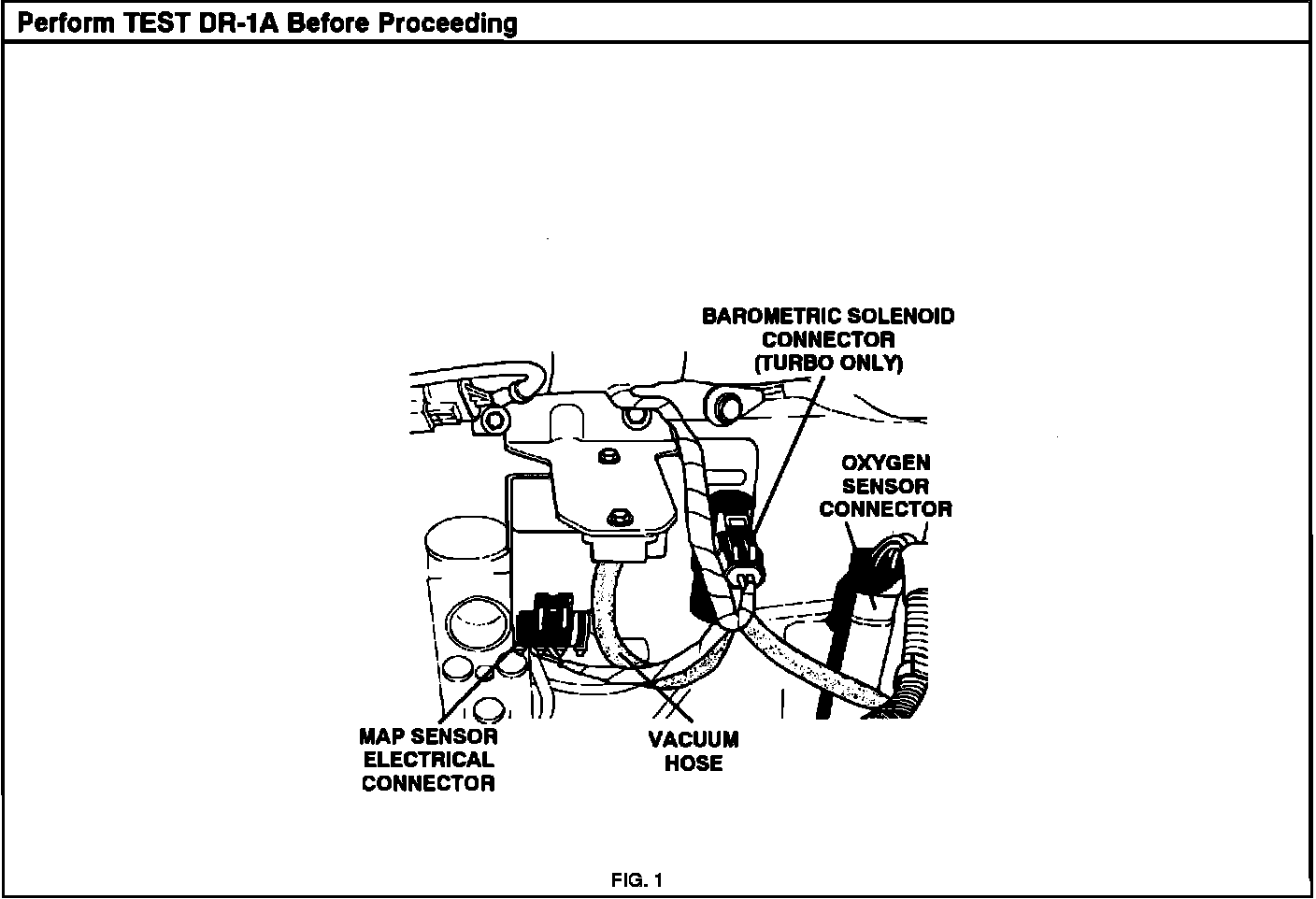

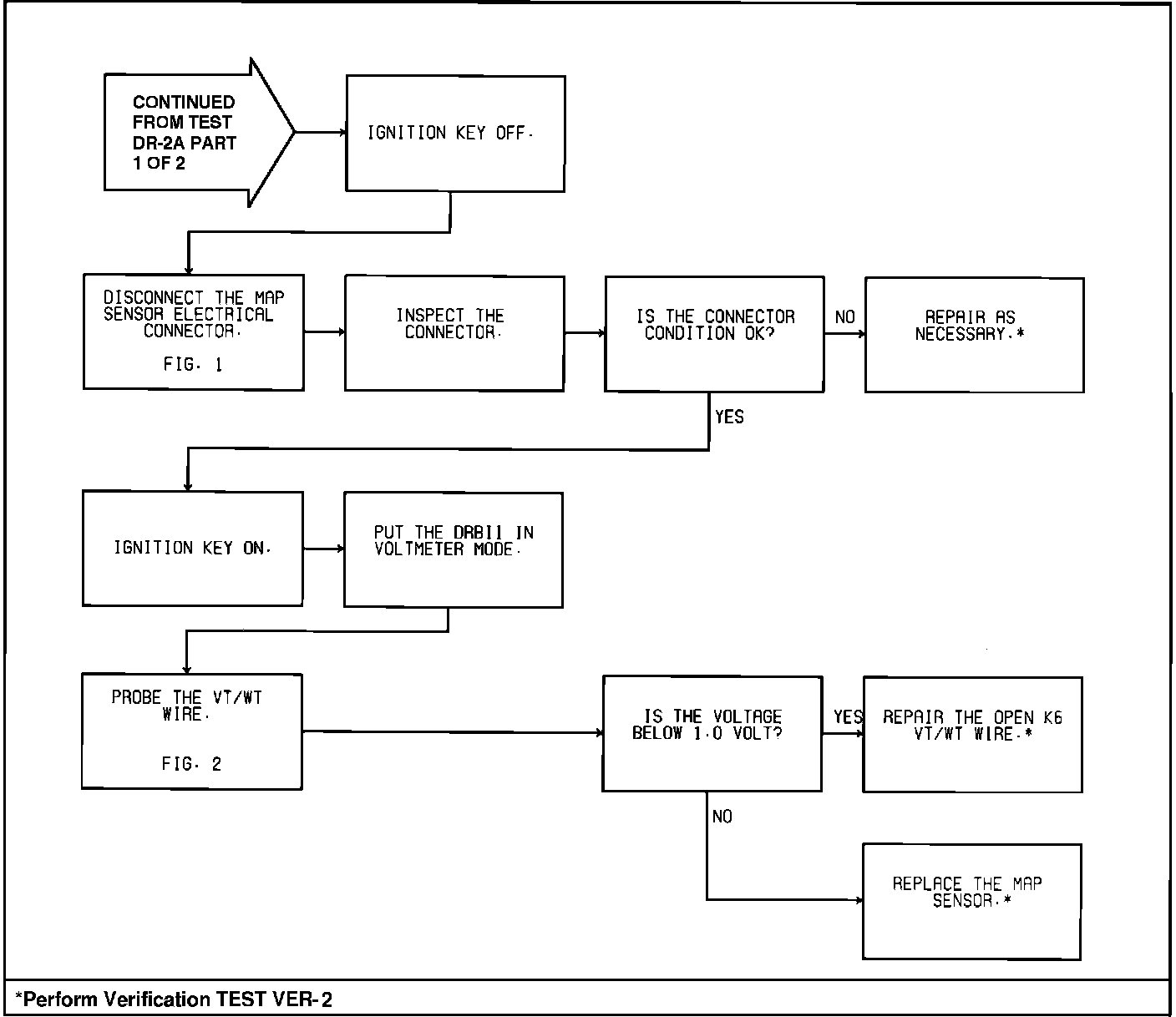

Test DR-2A - "Slow Change In Idle MAP Signal":
Test DR-2A - "Slow Change In Idle MAP Signal":
Test DR-2A - "Slow Change In Idle MAP Signal":
Test DR-2A - "Slow Change In Idle MAP Signal":
