Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-28A Repairing "BARO Read Solenoid Circuit" Fault >> Part 1 of 3

Part 1 of 3

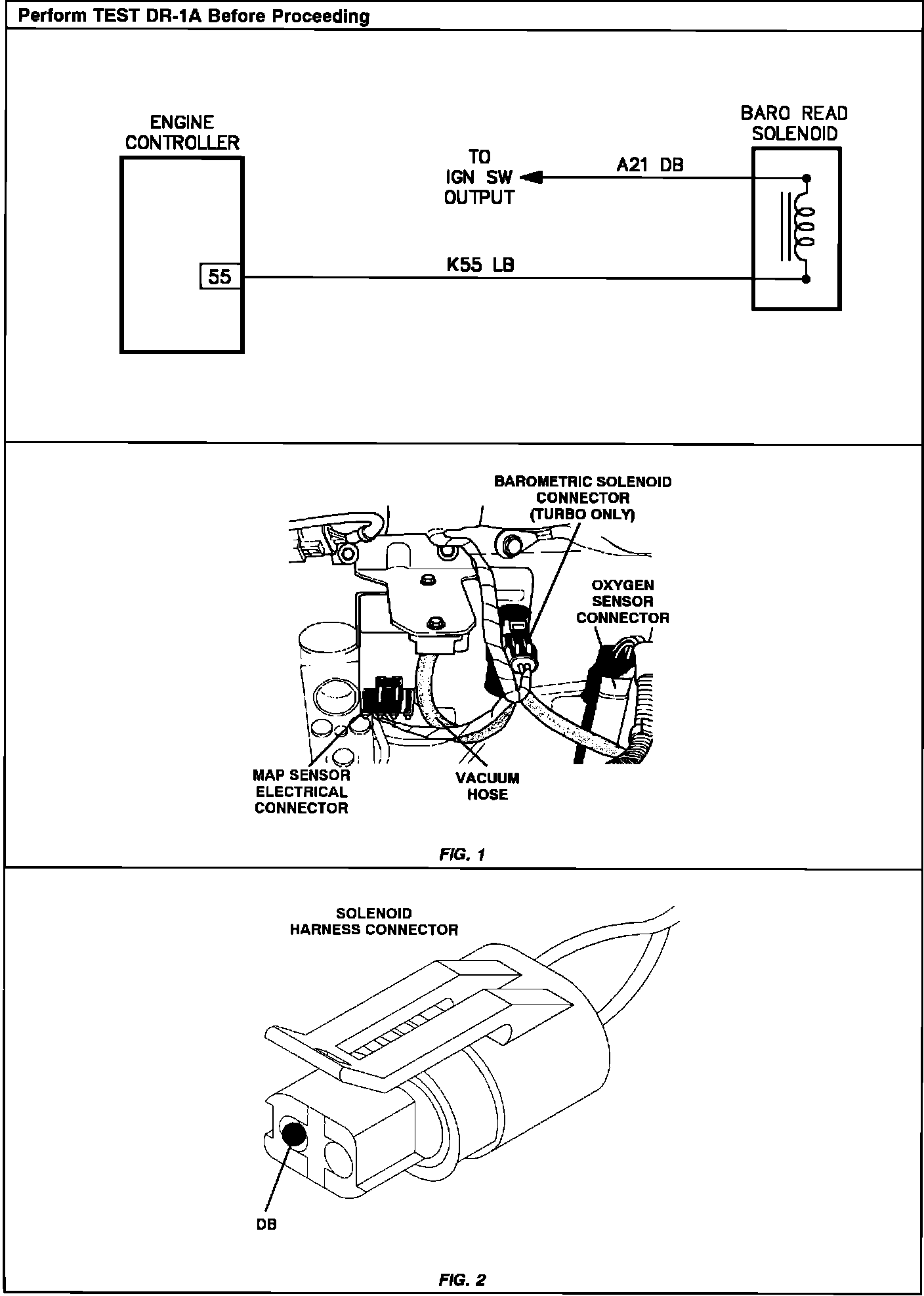

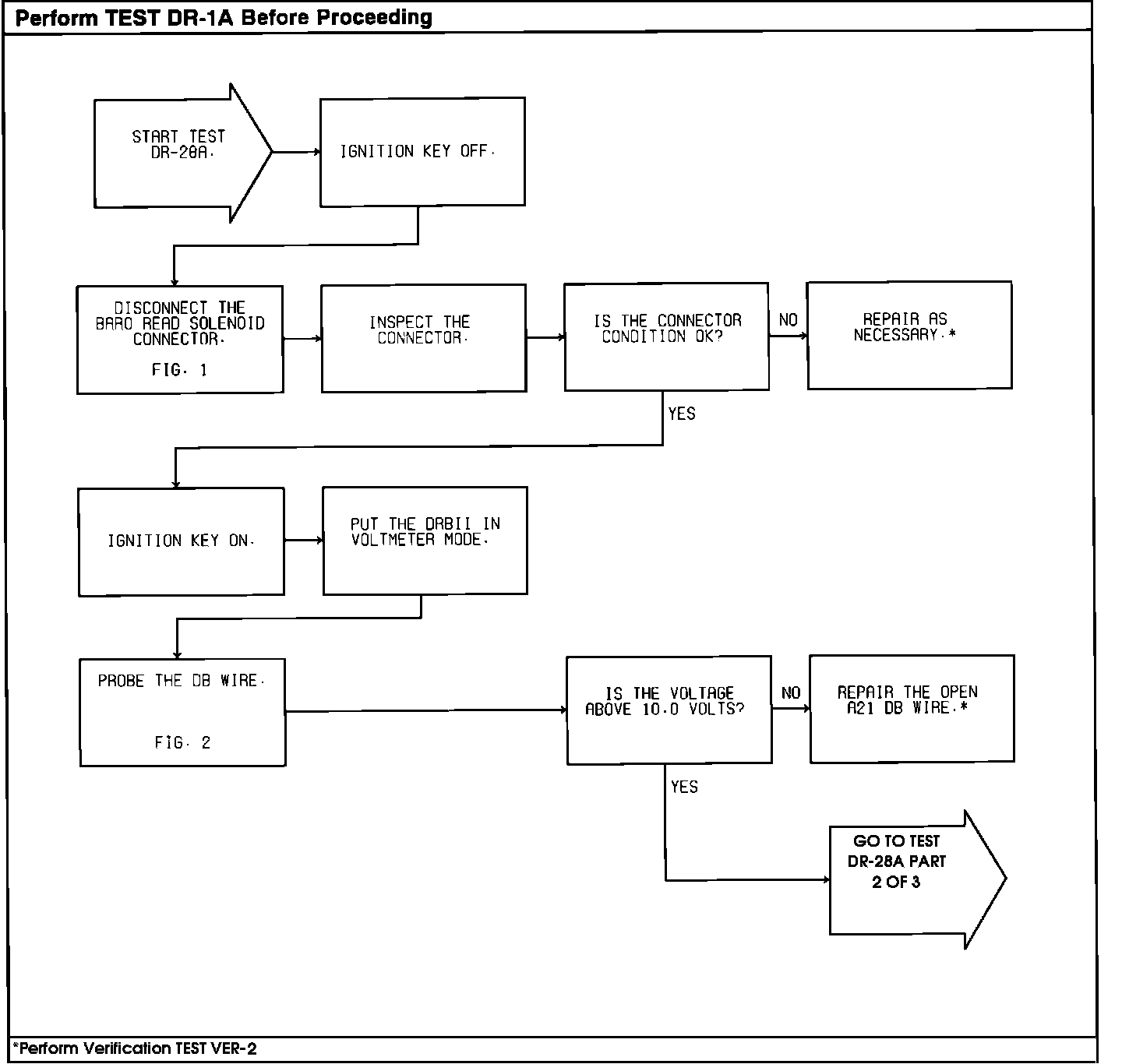

Test DR-28A - "BARO Read Solenoid Circuit":



Test DR-28A - "BARO Read Solenoid Circuit":
