Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-22A Repairing "A/C Clutch Relay Circuit" Fault >> Part 3 of 3

Part 3 of 3

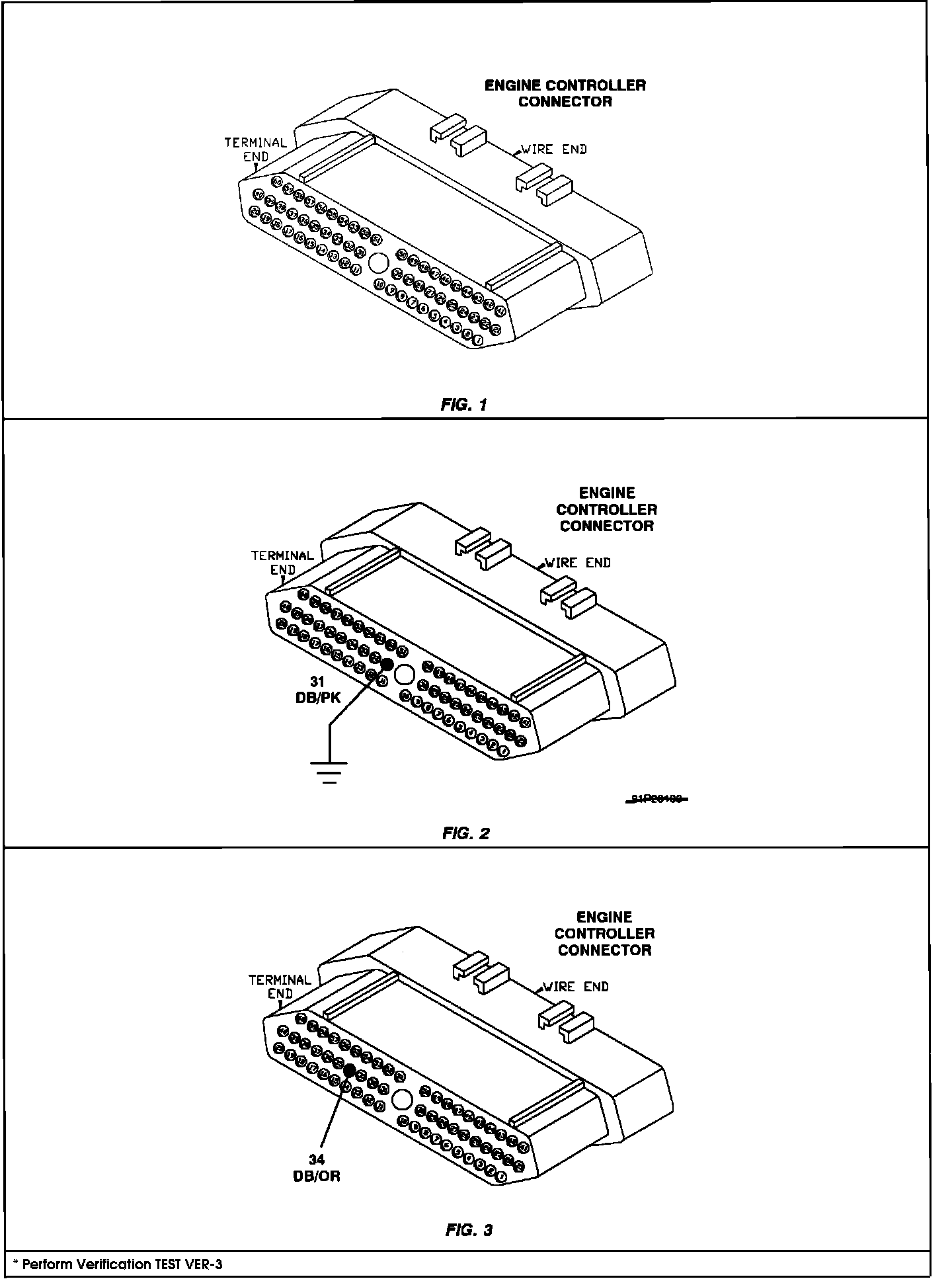

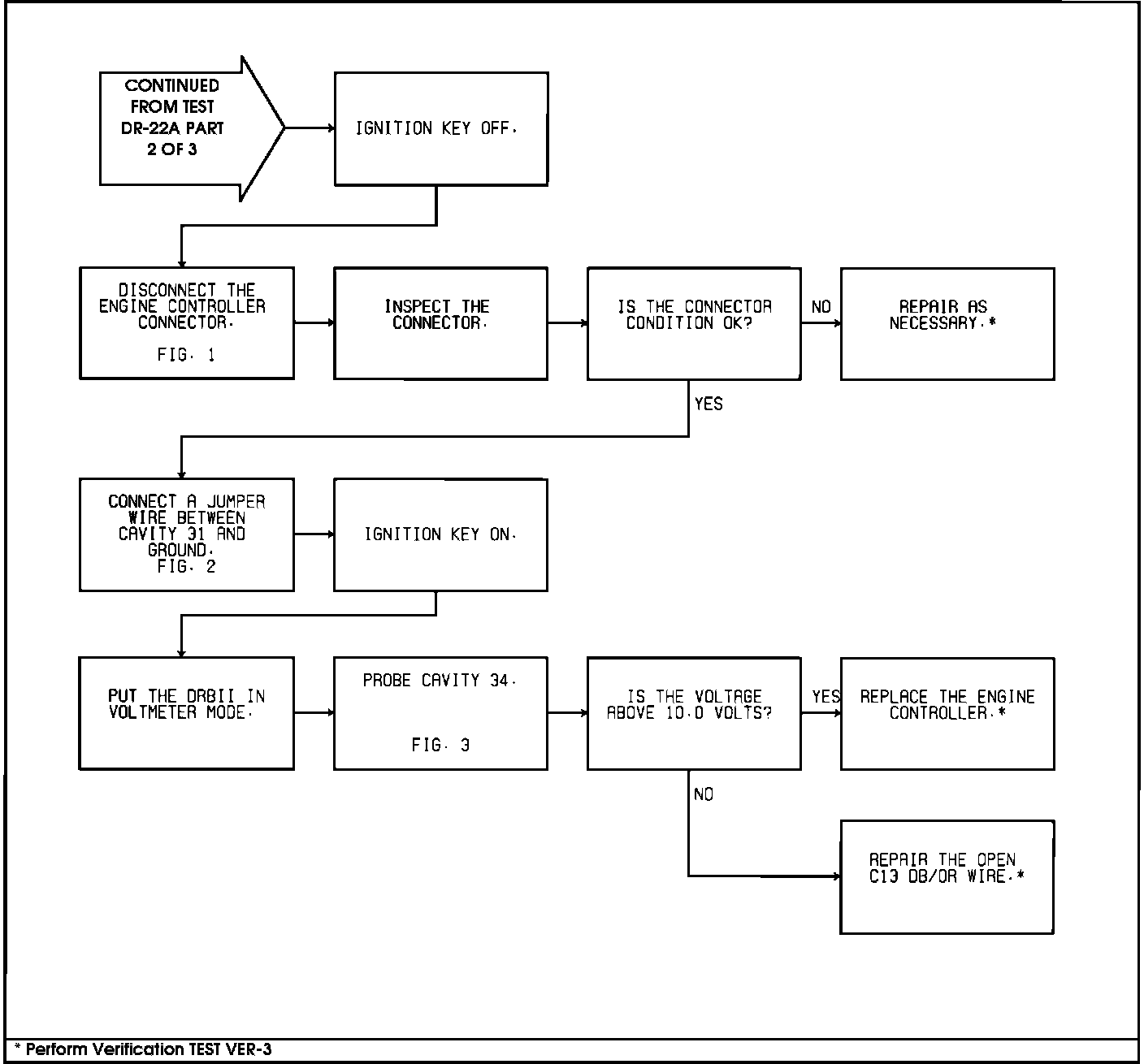

Test DR-22A - "A/C Clutch Relay Circuit":



Test DR-22A - "A/C Clutch Relay Circuit":
