DR-20B Repairing "EGR System Failure" Fault

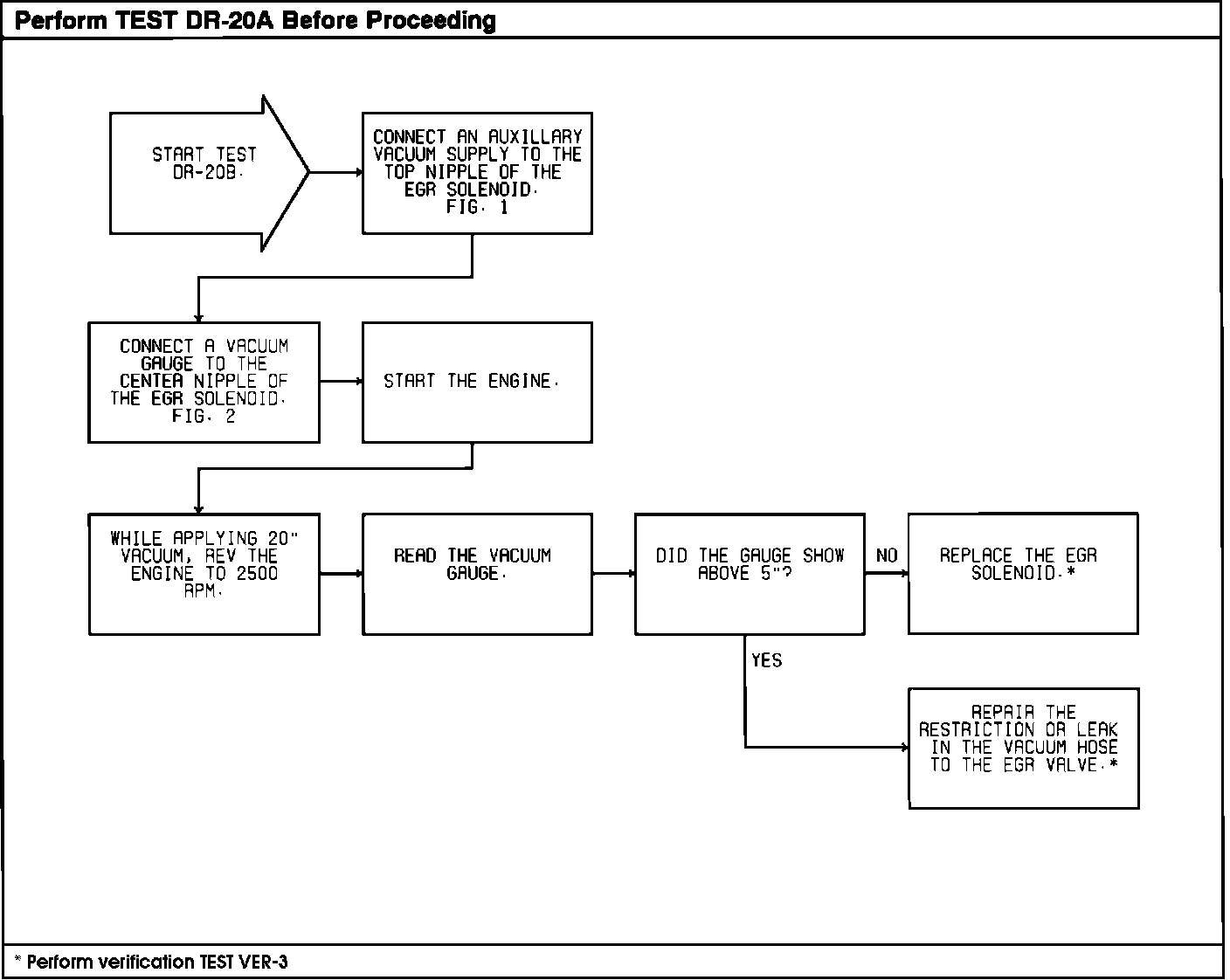

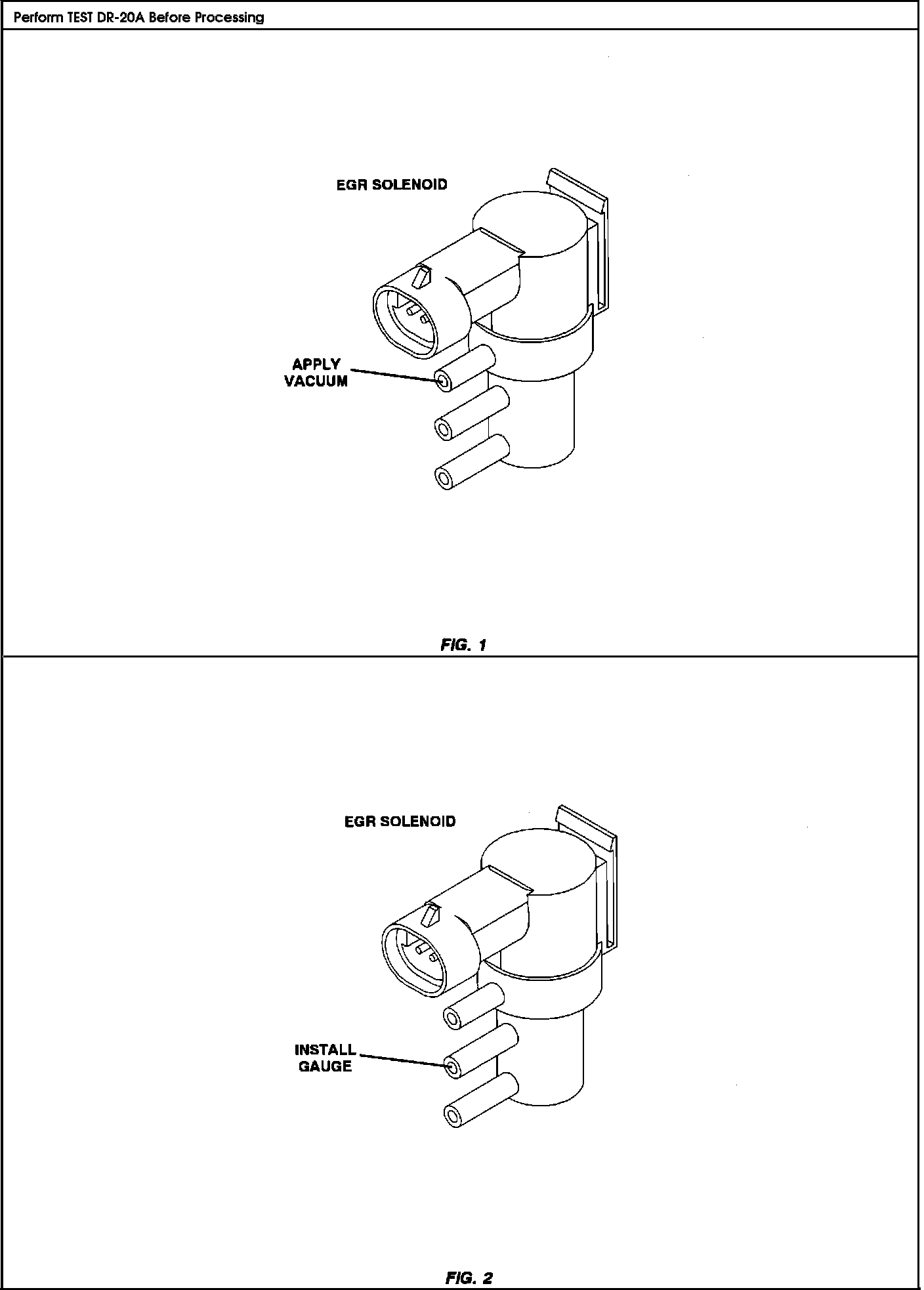

Test DR-20B - "EGR System Failure":



Test DR-20B - "EGR System Failure":
