Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-20A Repairing "EGR System Failure" Fault (California) >> Part 2 of 5

Part 2 of 5

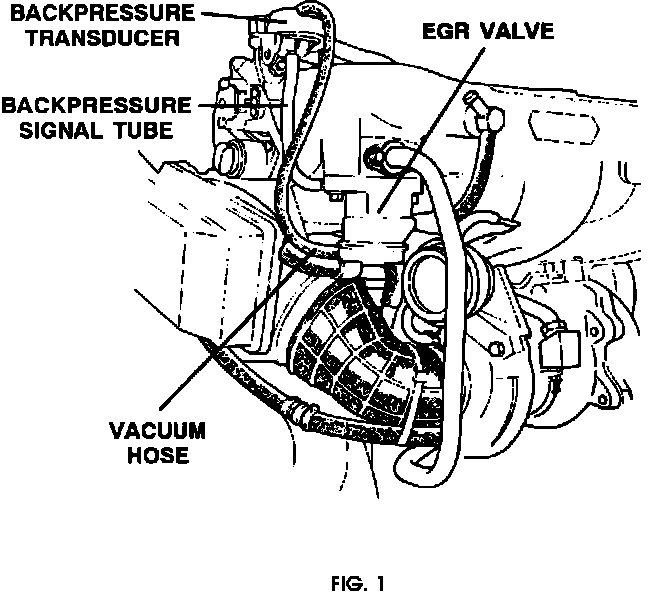

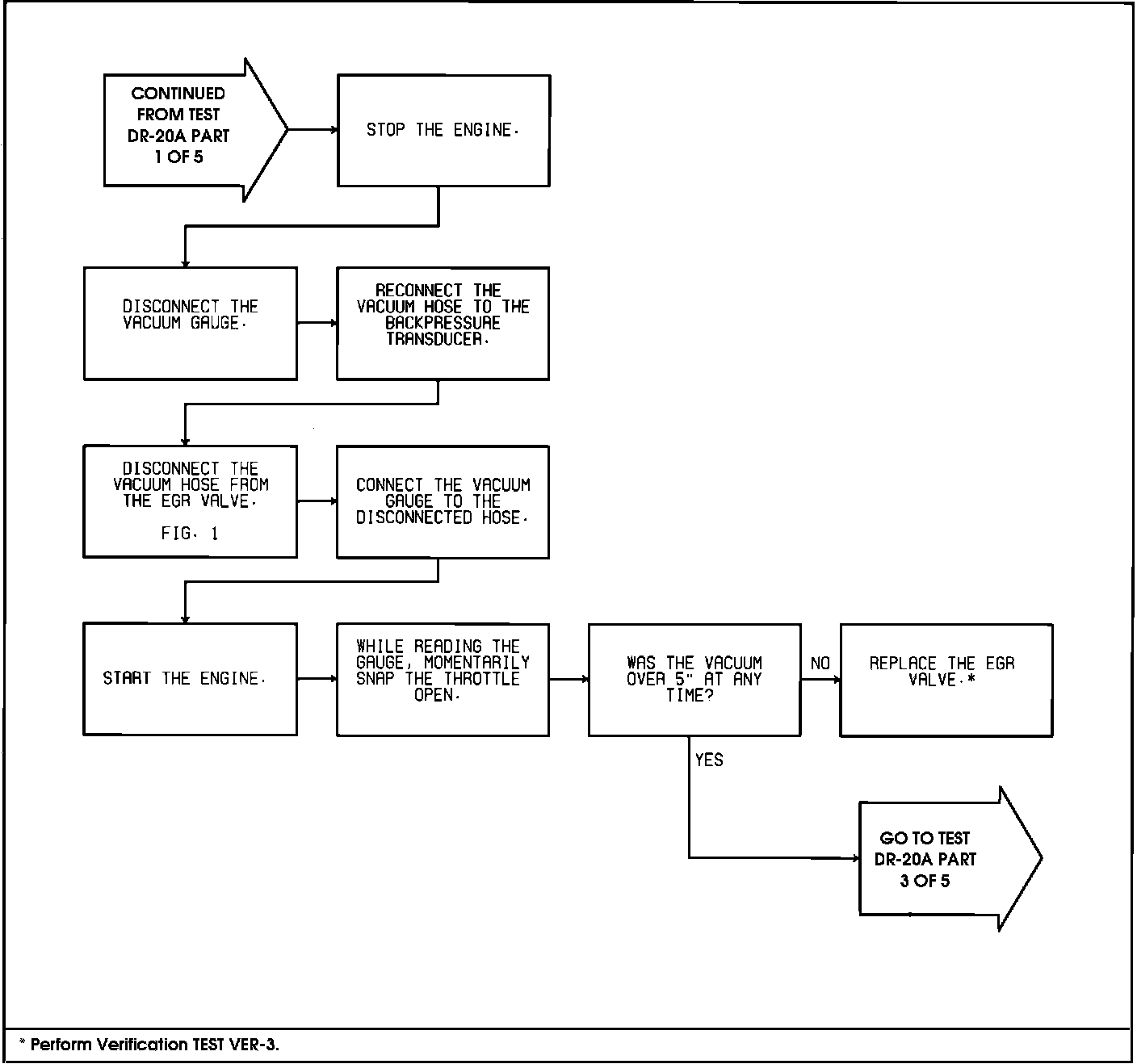

Test DR-20A - "EGR System Failure":



Test DR-20A - "EGR System Failure":
