Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-17A Repairing "Injector #4 Control Circuit" Fault >> Part 1 of 3

Part 1 of 3

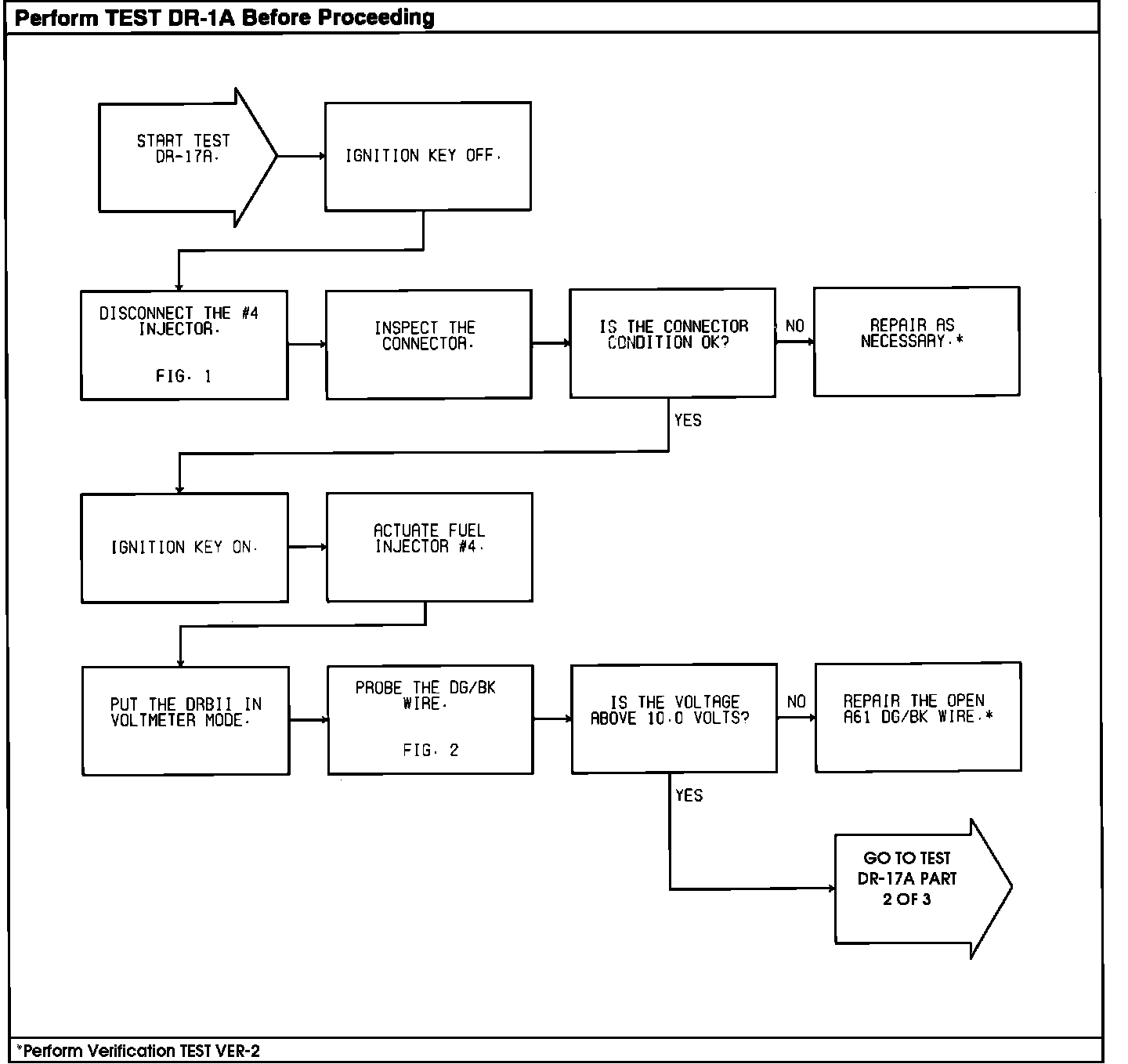

Test DR-17A - "Injector #4 Control Circuit":

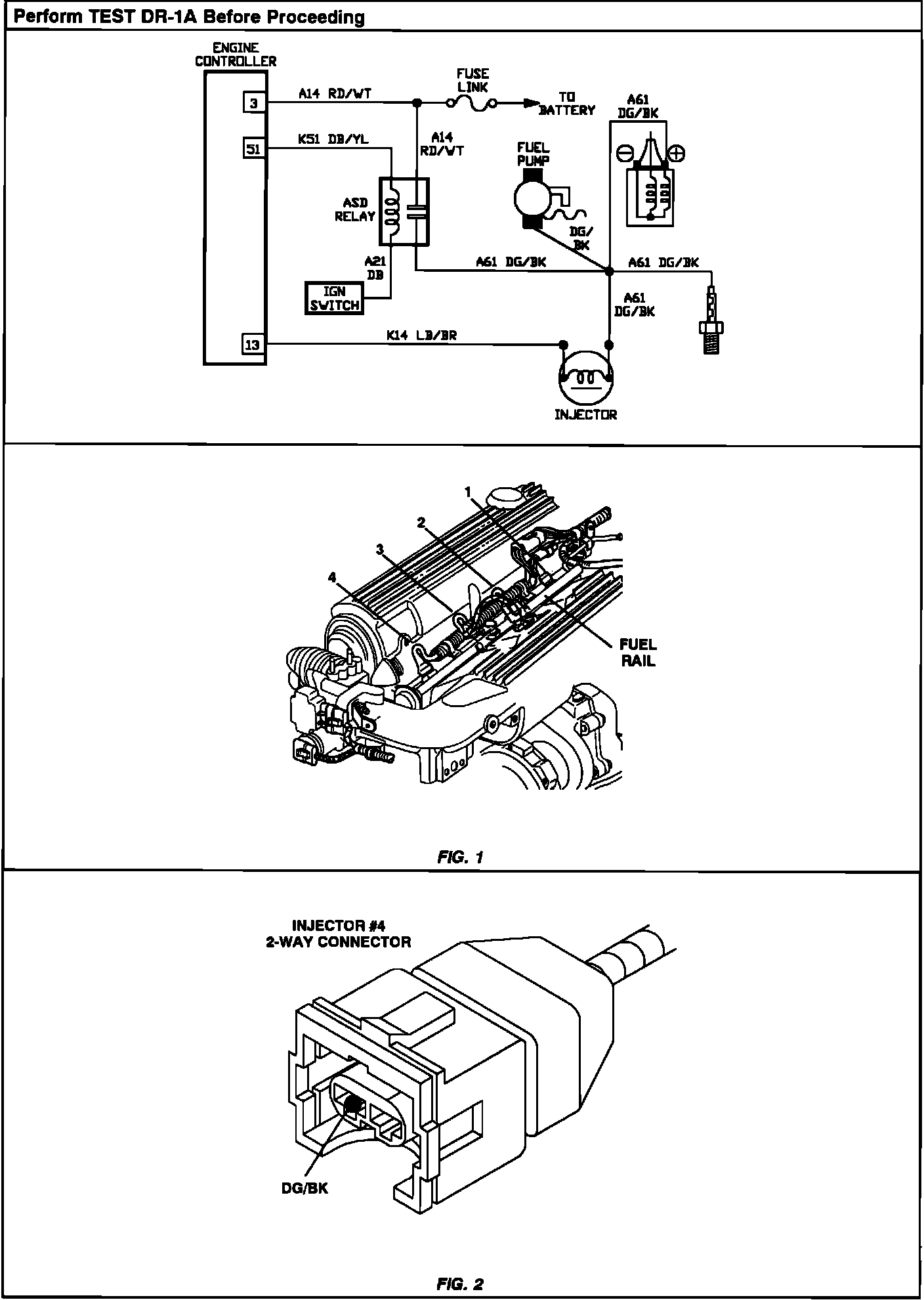

Test DR-17A - "Injector #4 Control Circuit":
