Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-16A Repairing "Injector #3 Control Circuit" Fault >> Part 2 of 3

Part 2 of 3

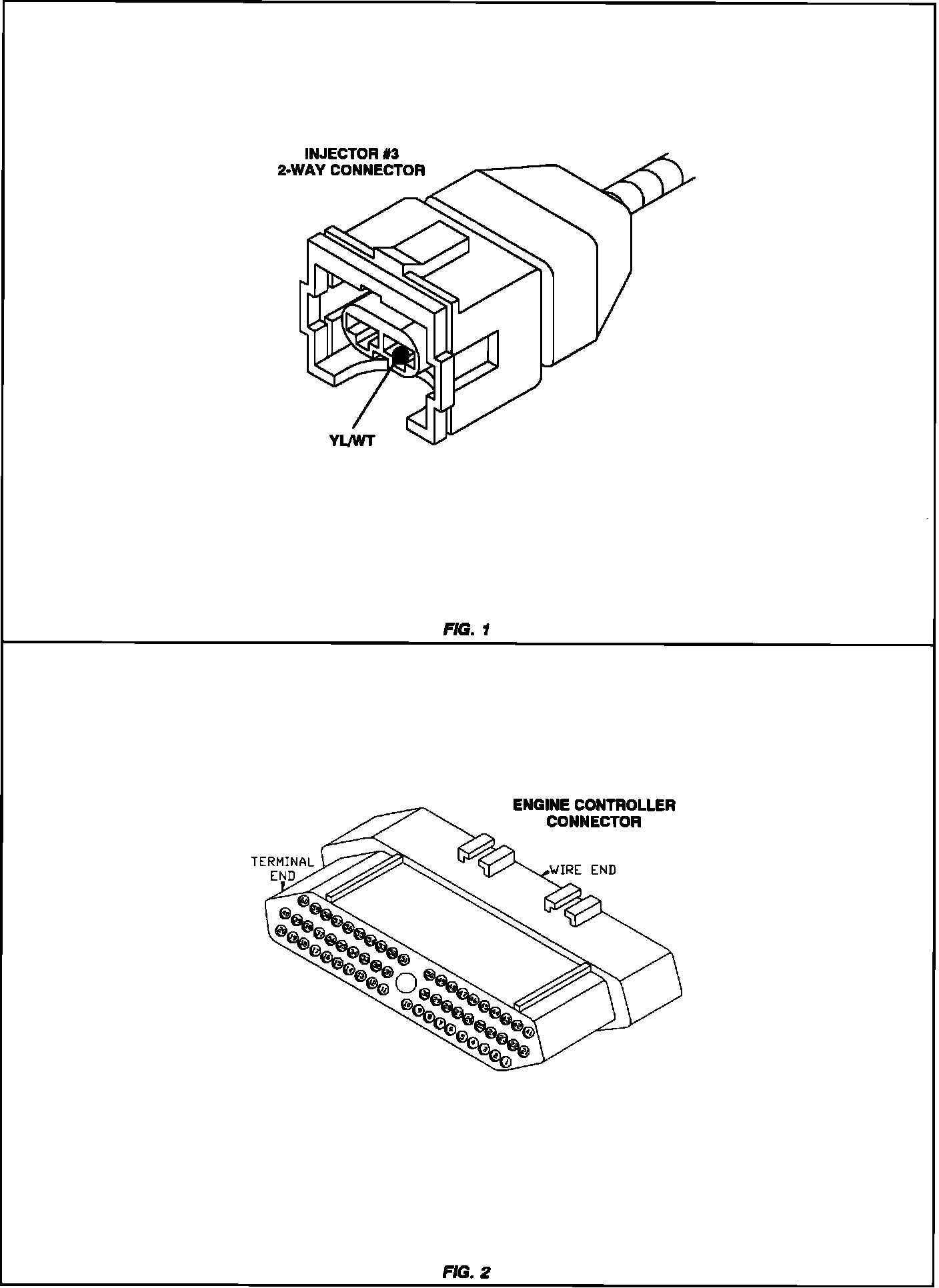

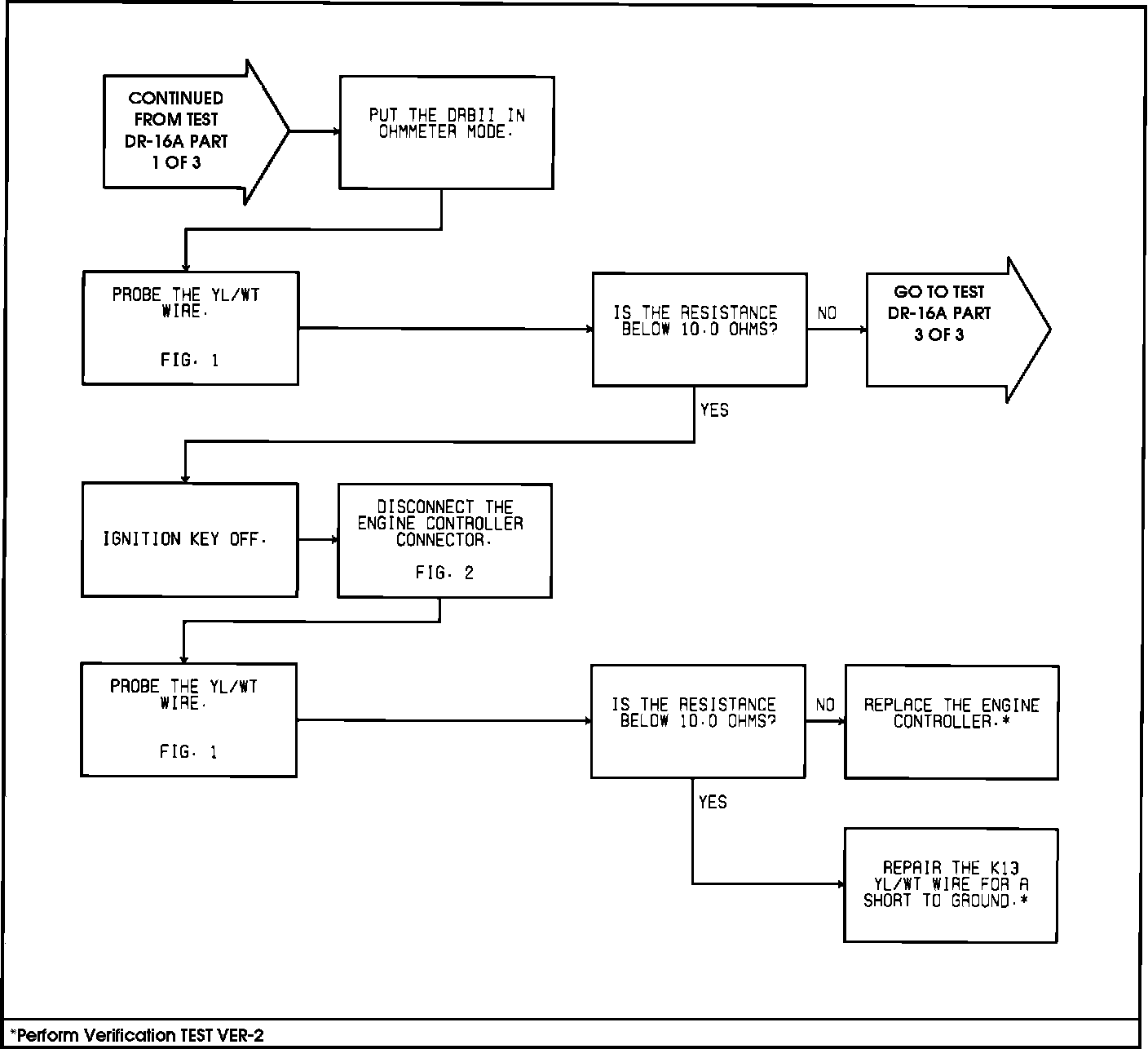

Test DR-16A - "Injector #3 Control Circuit":



Test DR-16A - "Injector #3 Control Circuit":
