Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-14A Repairing "Injector #1 Control Circuit" Fault >> Part 3 of 3

Part 3 of 3

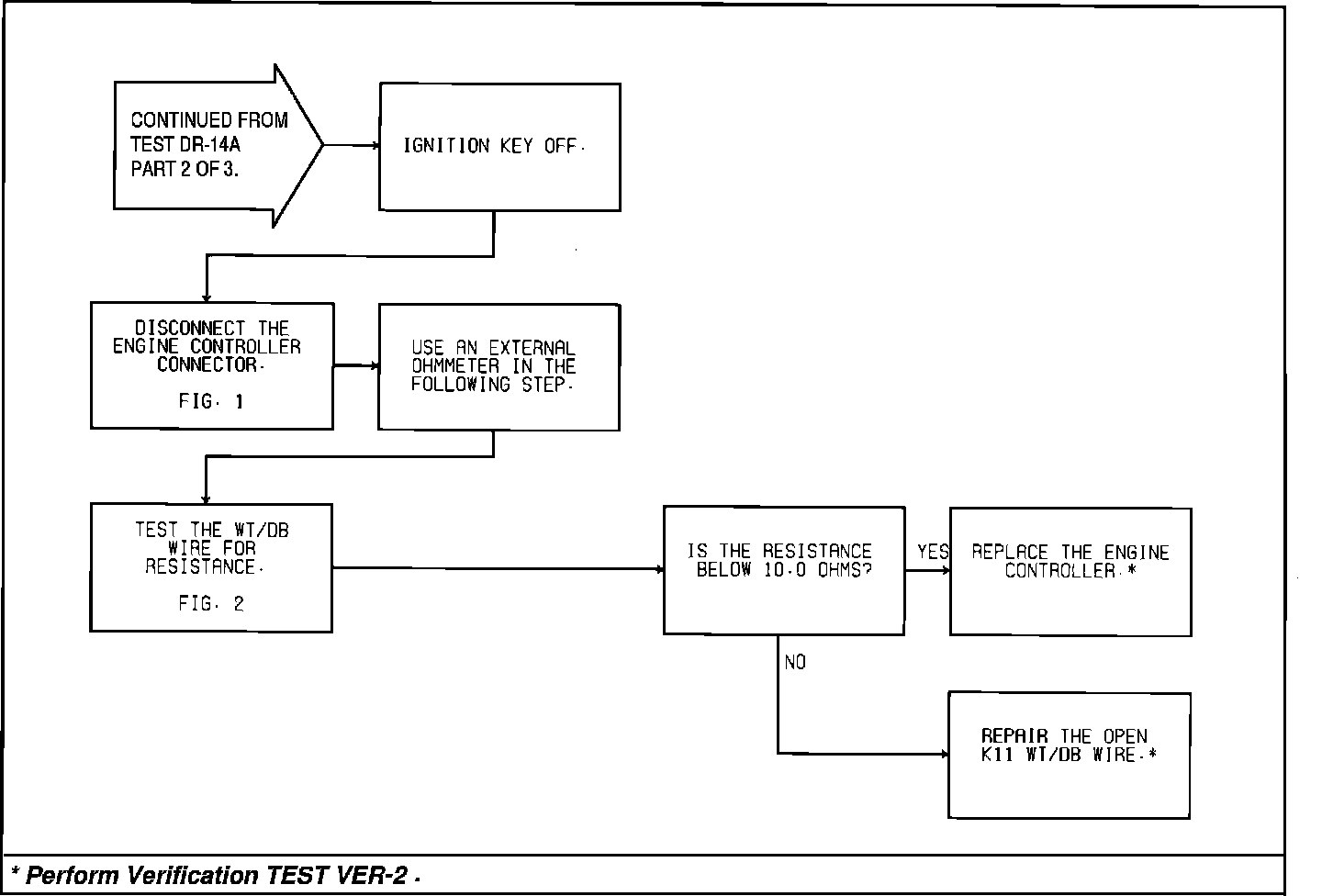

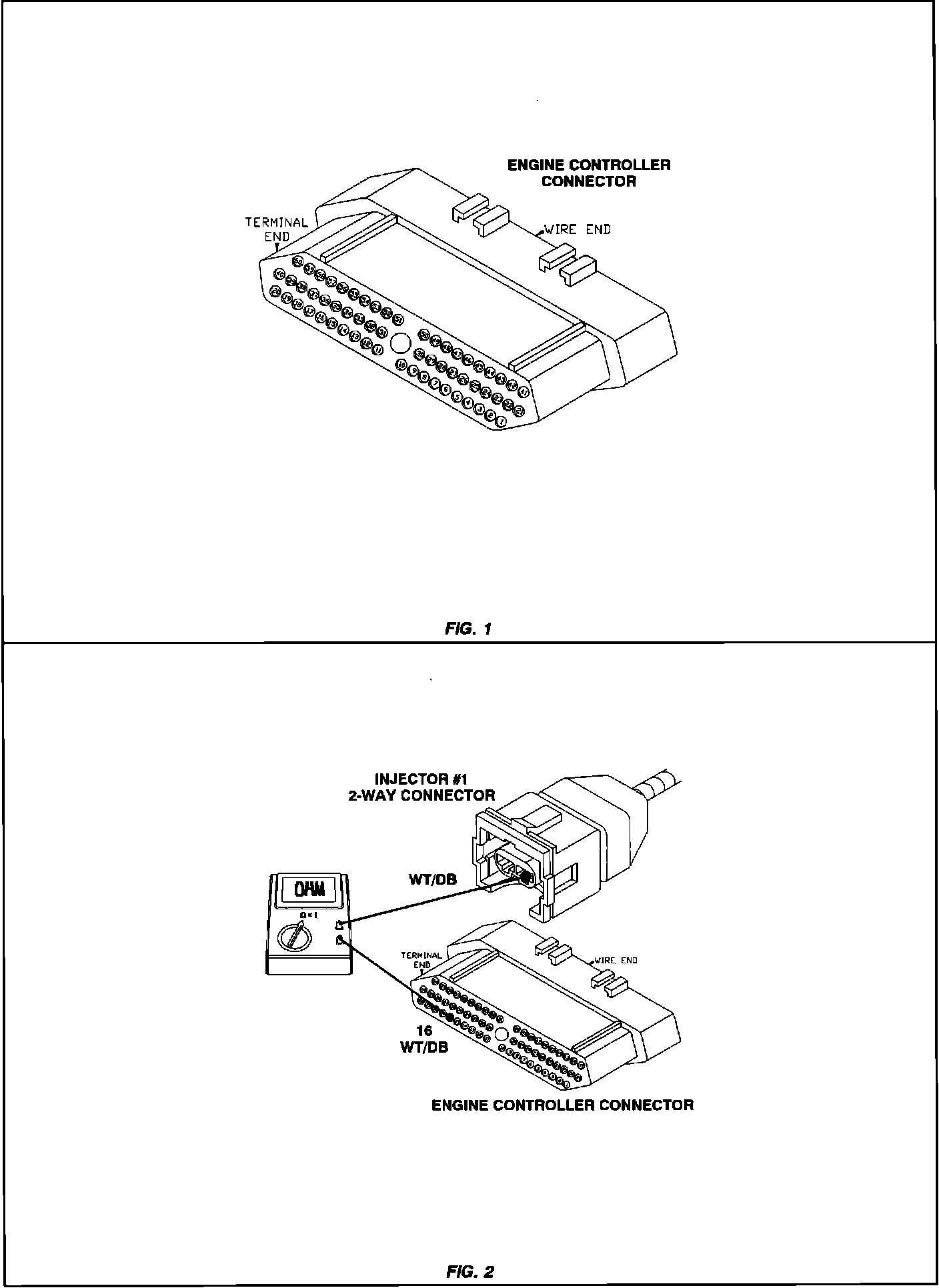

Test DR-14A - "Injector #1 Control Circuit":



Test DR-14A - "Injector #1 Control Circuit":
