Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 18 - Antilock Lamp Fault >> Test 18A

Test 18A

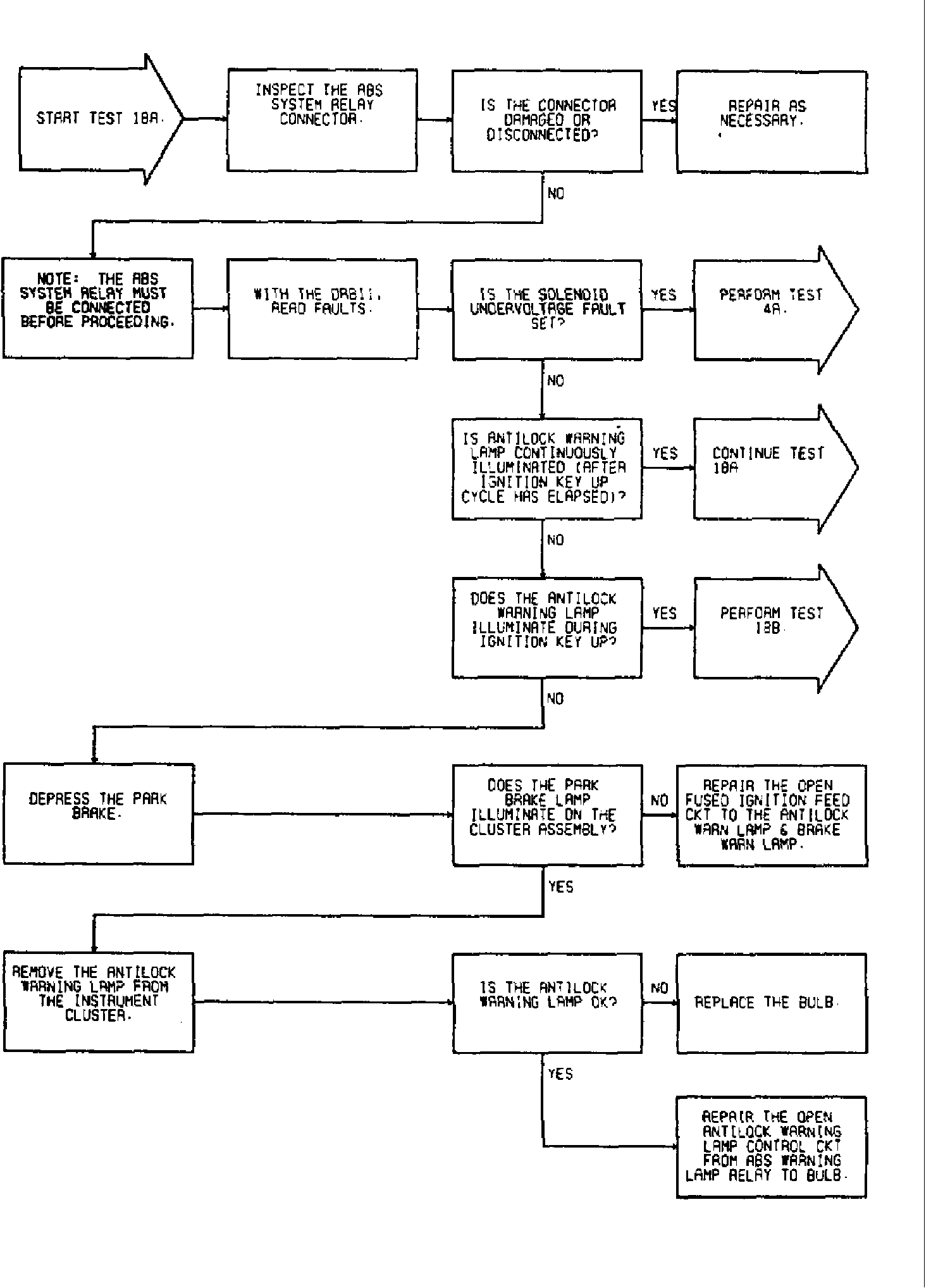

Fig. 139 Test 18A Part 1 Of 2:

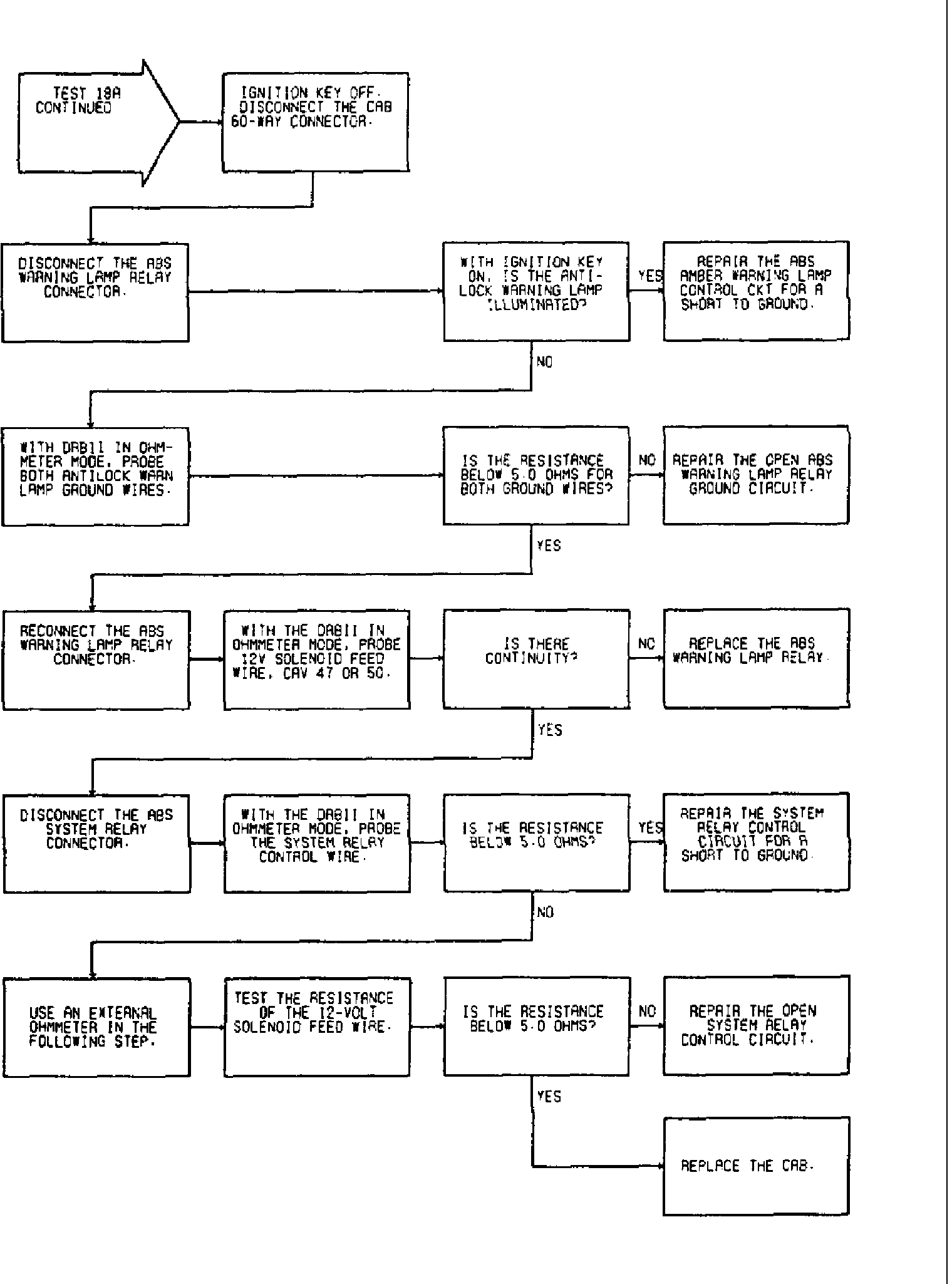

C/Fig. 139 Test 18A Part 2 Of 2:
