Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 14A - Left Rear Wheel Speed Sensor

Test 14A - Left Rear Wheel Speed Sensor

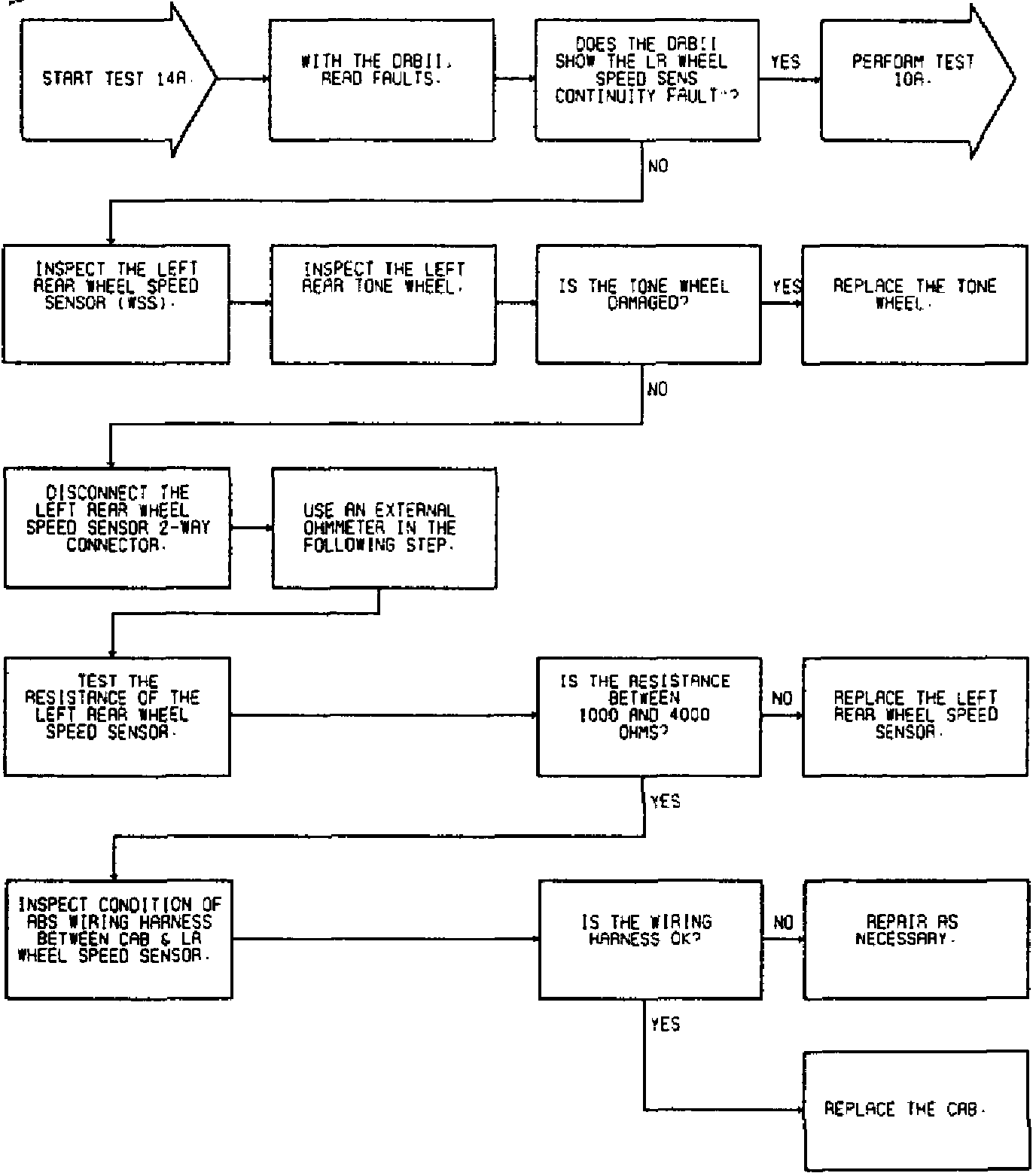

Fig. 130 Test 14A:
