Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 10 - Left Rear Wheel Speed Sensor Continuity Fault >> Test 10D

Test 10D

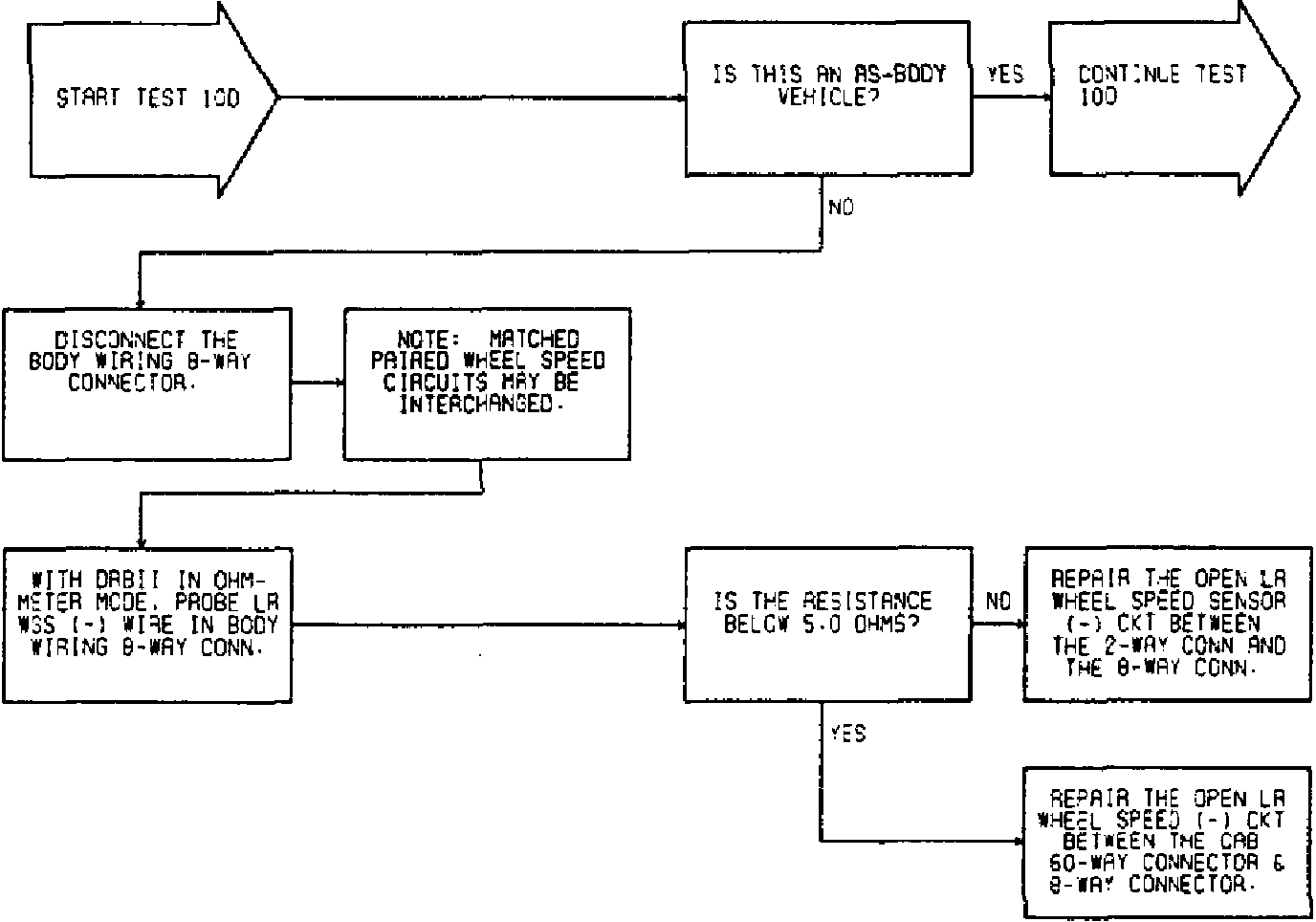

Fig. 125 Test 10D Part 1 Of 2:

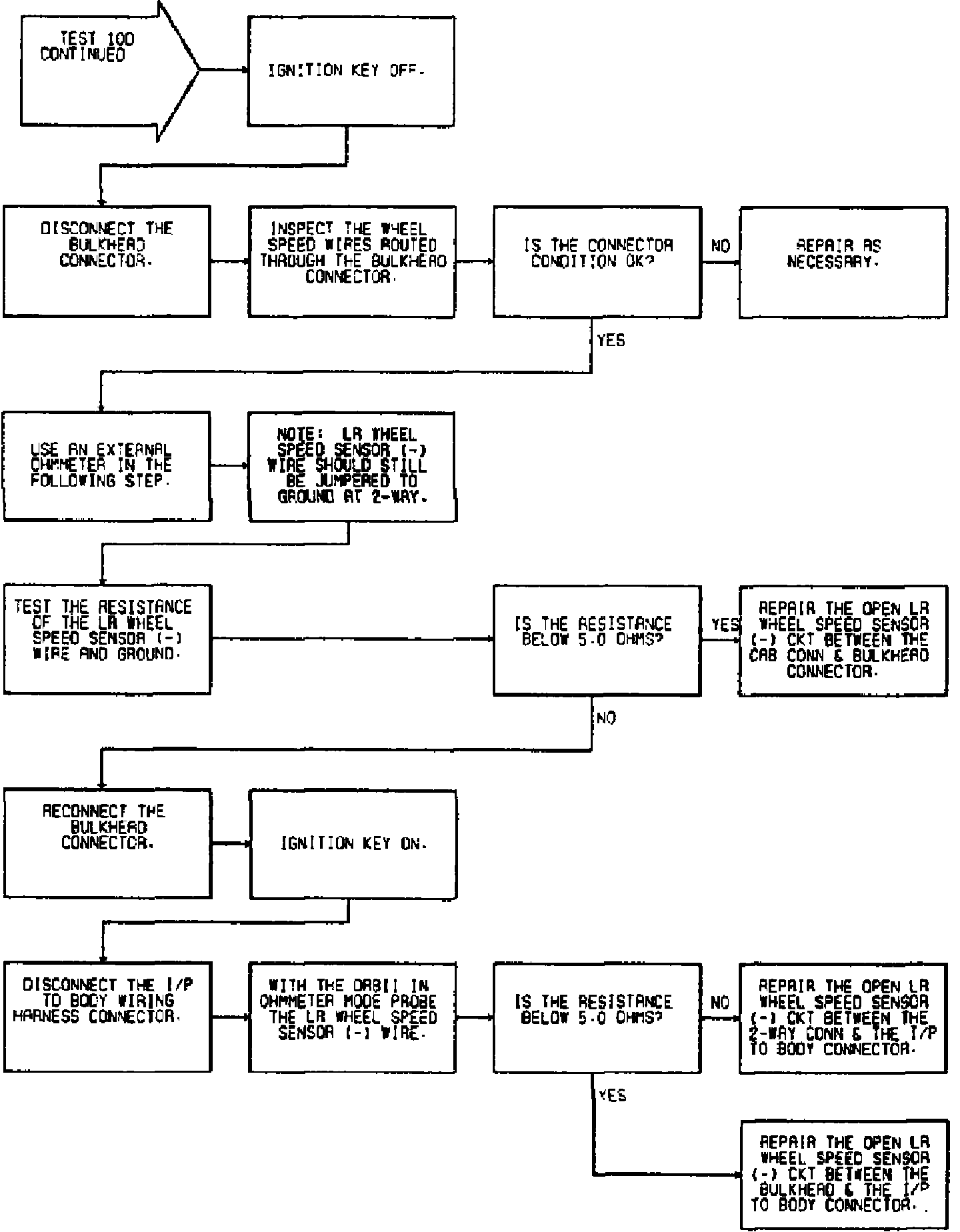

Fig. 125 Test 10D Part 2 Of 2:
